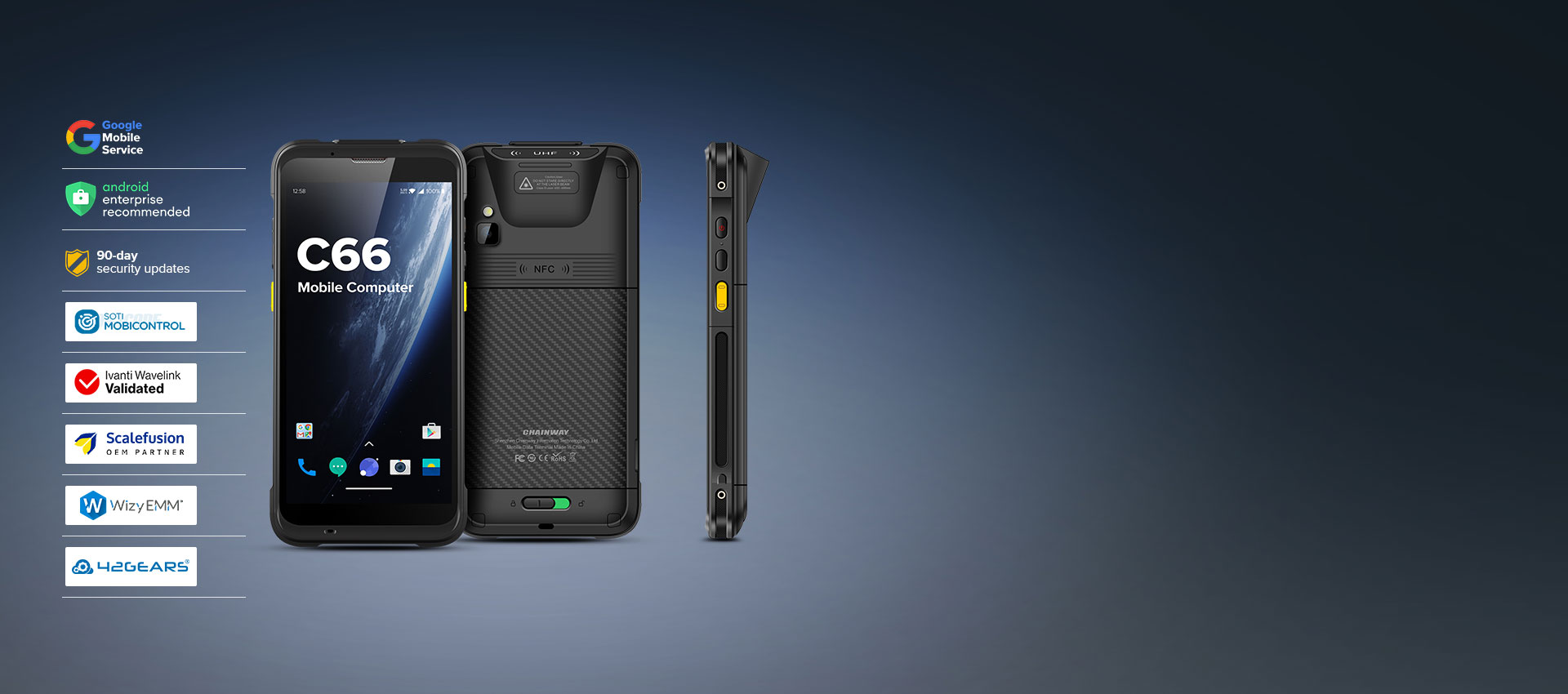

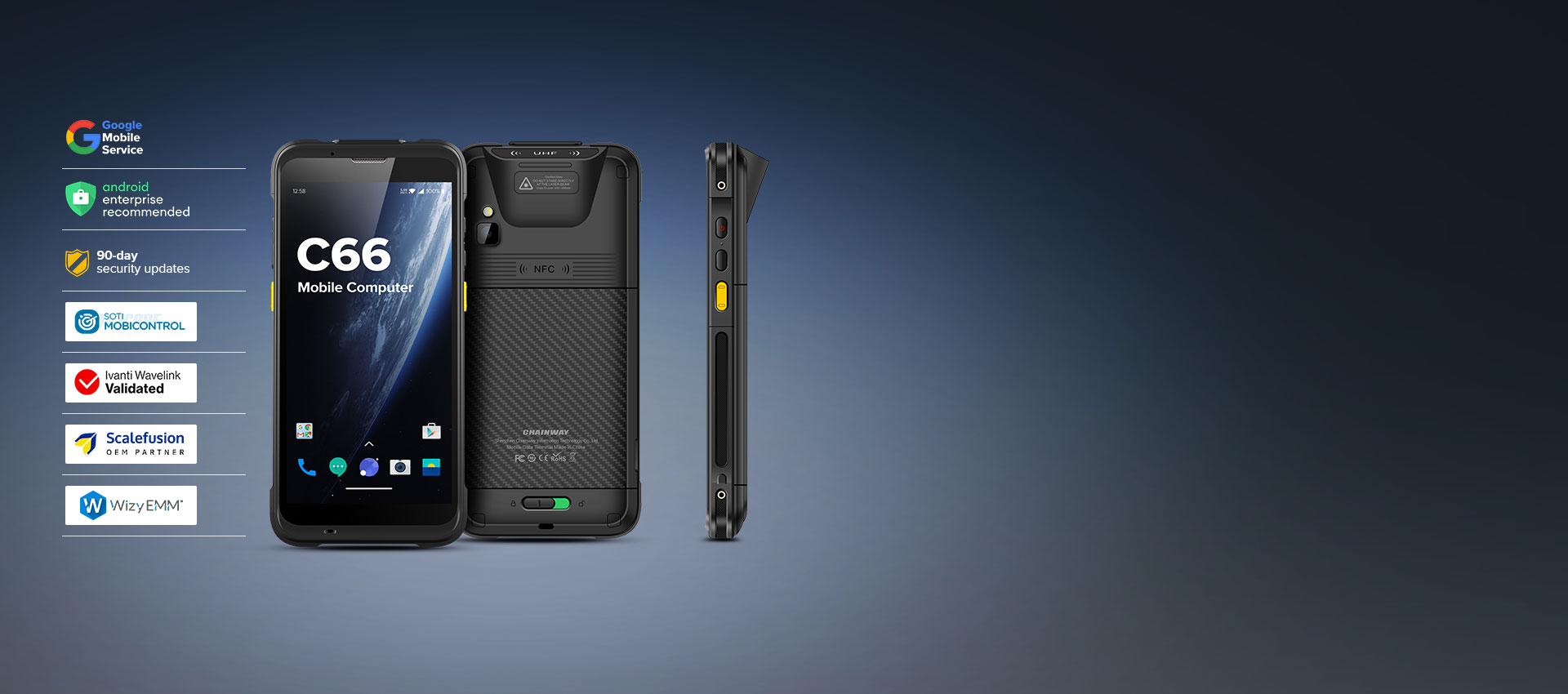

More Powerful, More Extensible, More Advanced in Every Way

Features
Android 11.0 OS Qualcomm 2.0 GHz Octa-core
5.5" IPS Display RAM+ROM: 3+32GB / 4+64GB (optional)
5200mAh Removable Battery QC3.0 Quick Charge and RTC
Functions

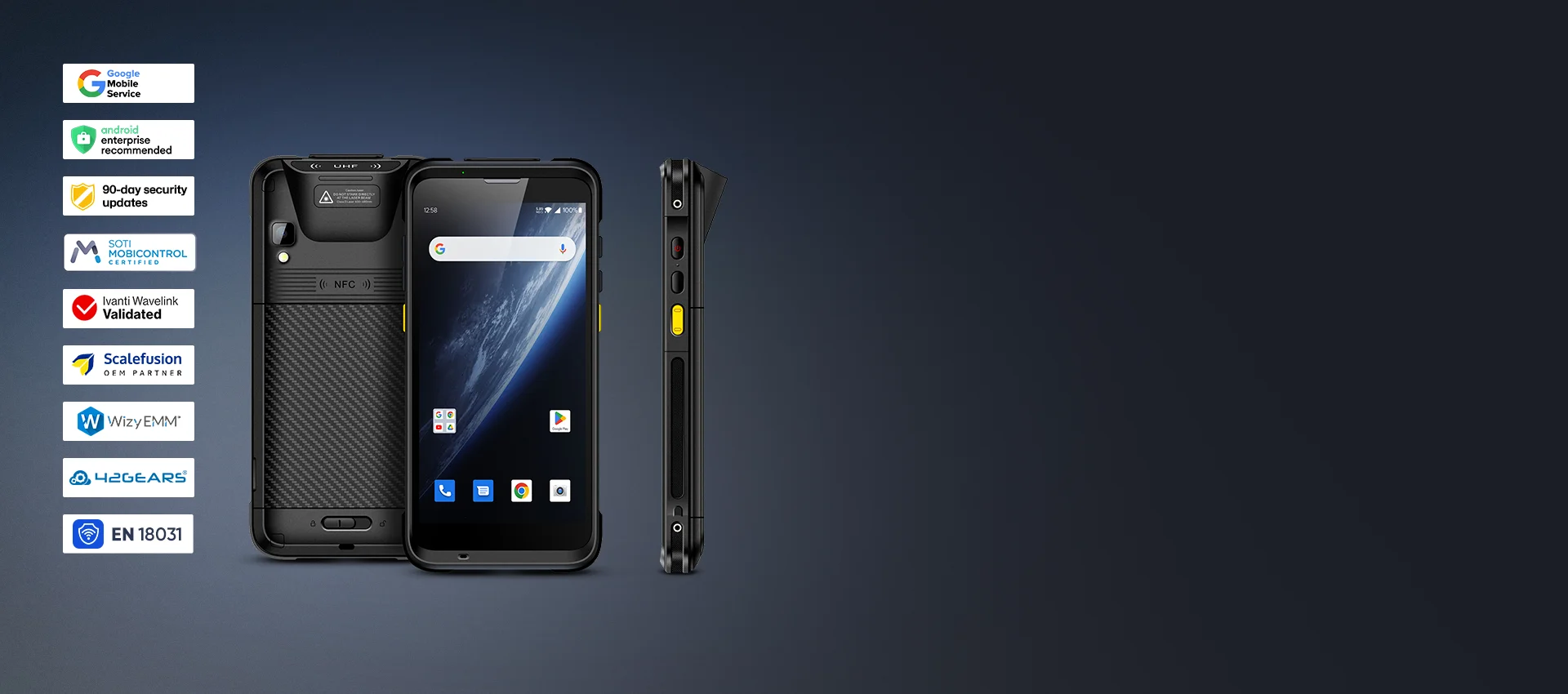

UHF RFID (Impinj E510 Chip) Built-in UHF
Barcode Scanning (Optional) NFC
13MP Autofocus Camera GPS, BeiDou,GLONASS

SPECIFICATIONS

Performance Parameter
Optical system
Light Source
Image Sensor
Image (Pixels)
Field of View
Decoding Rate
Decoding Capabilities
Roll / Pitch / Yaw
Scanning speed
Print Contrast
Angle
Resolution
Depth of Field
Printing Contrast
Prompting Mode
Interface
Trigger Mode
Setting Mode
Frequency
Communication Distance
Transmission Rate
Current
Capability of Battery
Specification(USB IRIS Scanner)
Working Current
Start Current
Standby Current
Working Current
Resolution Ratio
FoV
Identification Range
Registration Range
Registration Time
Identification Time
Infared Wavelength
FAR
FRR
Frame Rate
Operating Temp.
Storage Temp.
Power Supply & Data Interface
Operating System Requirements
SDK Fitting System
Symbology Decode Capability
1-D
2-D
Decoding rate
Interfaces
Development Board
Module
Physical Characteristics
Dimensions 160.0 x 76.0 x 15.5 mm / 6.3 x 2.99 x 0.61 in.
Weight 287 g / 10.12 oz. (device with battery)
Display
Battery Removable main battery (normal version:4420 mAh ; Android 11.0 with fingerprint / built-in UHF / volume measurement version: 5200mAh )
5200 mAh optional pistol battery, support QC3.0 and RTC
Standby: up to 490 hours (only main battery ; WiFi: up to 470h; 4G: up to 440h)
Continuous use: over 12 hours (depending on user environment)
Charging time: 2.5 hours (charge device by standard adaptor and USB cable)
Touch Panel Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported
Power
Speaker Support
Vibrator Support
Microphone 2 Microphones, 1 for noise reduction
Expansion Slot
Buzzer
Interfaces USB Type-C, USB 3.1, OTG, extended thimble;
Card slot 1 slot for Nano SIM card, 1 slot for Nano SIM or TF card
Audio
Input Mode
Keypad 1 power key, 2 scan keys, 2 volume keys
Sensors Gravity sensor, proximity sensor, light sensor, accelerometer sensor, vibration motor
Pupil Lamp
Indicator LED Power, charging, status indicator
Size of adapted phone
Product Material
Colour
Voltage and Current
Material
Input Voltage
Standby Current
AC Adapter
Sleep Current
Comm Interface
GPIO
Baud Rate
Cooling Mode
Work Current
Display Interface 5.5-inch high definition full display (18:9), IPS LTPS 1440 x 720
Port
Charging Current
Charging Duration
Ethernet interface
Power Supply
Identification Lamp
RFID Features
RF Chip
Air Interface Protocol
Working Frequency
Output Power
Output Power Flatness
Antenna Interface
Regions Supported
Receive Sensitivity
Tag RSSI
Antenna Detector
Ambient Temp Monitor
Working Mode
Communication Interface
Connector
Host Communication
Power Supply
Input Voltage
Power Consumption in RF Output Mode
Power Consumption in Standby Mode(EN high TTL level)
Power Consumption in Power Down Mode(EN low TTL level)
Communication
Ethernet interface
WLAN Support 802.11 a/b/g/n/ac/d/e/h/i/k/r/v, 2.4G/5G dual-band, IPV4, IPV6, 5G PA
Fast roaming: PMKID caching, 802.11r, OKC
Operating Channels: 2.4G(channel 1~13), 5G(channel36,40,44,48,52,56,60,64,100,104,108,112,116,120,124,128,132, 136,140,144,149,153,157,161,165), Depends on local regulations
Security and Encryption: WEP, WPA/WPA2-PSK(TKIP and AES), WAPI-PSK—EAP-TTLS, EAP-TLS, PEAP-MSCHAPv2, PEAP-LTS,PEAP-GTC,etc
WWAN
WWAN (Europe, Asia) 2G: 850/900/1800/1900 MHz
2G: 850/900/1800/1900 MHz
      WCDMA: 850/900/1900/2100MHz
      TD-SCDMA: A/F(B34/B39)
4G: B1/B3/B5/B7/B8/B20/B38/B39/B40/B41
WWAN (Europe)
WWAN (America) 2G: 850/900/1800/1900 MHz
3G: 850/900/1900/2100 MHz
4G: B2/B4/B5/B7/B12/B13/B17/B28A/B28B/B38
WWAN (Quad-core)
WWAN (Octa-core)
WWAN (China)
WWAN (Others)
Bluetooth Bluetooth 5.1
WWAN(Overseas)
Vo-LTE Support Vo-LTE HD video voice call
GPS
GNSS GPS/AGPS, GLONASS, BeiDou, Galileo, internal antenna
GPS (Optional)
USB Type C
Note
Developing Environment
Operating System Android 11.0; GMS, built-in support for a future upgrade through Android 12 which complies with GMS and Android Enterprise Recommended
SDK Chainway Software Development Kit
Language Java
Tool Eclipse / Android Studio
Security
Performance
CPU(1)
CPU Qualcomm 2.0 GHz Octa-core
RAM+ROM(1)
Option 1
Option 2
CPU(2)
RAM+ROM 3 GB + 32 GB / 4 GB + 64 GB
High-level Configuration
MCU
Low-level Configuration
RAM+ROM(2)
RAM+ROM
Expansion Supports up to 128 GB Micro SD card
Storage
UHF1
Engine
Frequency
Protocol
Antenna
Power
R/W range
Fastest Read Rate
Communication Mode
Note
UHF2
Engine
Frequency
Protocol
Antenna
Power
R/W range
Fastest Read Rate
Communication Mode
Note
UHF3
Frequency
Protocol
Antenna
Power
R/W range
Note
Volume Measurement
Sensor
Range
Measurement Error
Module
Field of view Angle
Measurement speed
Measured distance
Note
Fingerprint
Sensor
Sensing Area (mm)
Resolution (dpi)
Certifications
Format Extraction
Fake Finger Detection
Security
Note
Communication Android 8.1
WLAN
WWAN (China)
WWAN (Europe)
WWAN(America)
WWAN (Others)
Bluetooth
GNSS
Communication(Quad-core)
WLAN
WWAN
WWAN (China)
WWAN (Europe)
WWAN (America)
WWAN (Others)
Bluetooth
GNSS
Note
Communication(Octa-core)
WLAN
WWAN (China)
WWAN
WWAN(Europe)
WWAN(Overseas)
WWAN (America)
WWAN (Others)
Bluetooth
GNSS
Communication Android 11.0
WLAN
WWAN
Bluetooth
GNSS
PSAM
Protocol
Slots
Note
UHF RFID
Engine
Frequency 865-868 MHz / 920-925 MHz / 902-928 MHz
Protocol EPC C1 GEN2 / ISO18000-6C
Antenna Circular polarization (1 dBi)
Power 1 W (+19 dBm to +30 dBm adjustable)
R/W ranges 3 m
Fastest Read Rate (circular polarization)
Output Power
Output Power Precision
Output Power Flatness
Receive Sensitivity
RSSI
Ambient Temp Monitor
Fastest Read Rate
Antenna Detector
Antenna Port
Communication Mode
Read Range
Note *Ranges and rates depend on tags and environment, built-in UHF version does not support pistol
Note2
InfraRed
Wavelength
Frequency
Range
Protocol
Note
User Environment
Input Voltage
Operating Temp. -4oF to 122oF / -20 ℃ to +50 ℃
Storage Temp. -40oF to 158oF / -40 ℃ to +70 ℃
Humidity 5% RH - 95% RH non condensing
Luminance of environment
Drop Specification Multiple 1.8 m / 5.91 ft. drops (at least 20 times) to the concrete across the operating temperature range
Multiple 2.4 m / 7.87 ft. drops (at least 20 times) to the concrete after installed rubber bumper
Tumble Specification 1000 x 0.5 m / 1.64 ft. falls at room temperature
Ambient Light Immunity
Sealing IP65 per IEC sealing specifications
ESD ±15 KV air discharge, ±8 KV conductive discharge
Barcode Scanning
2D Scanner Zebra: SE4710/SE2100; Honeywell: N6603; E3200; IA166S
Scan engine(Quad-core)
Scan engine(Octa-core)
1D Linear Scanner
Scan engine
1D Linear Scanner(Quad-core)
2D Imager Scanner(Quad-core)
2D Imager Scanner(Octa-core)
2D Imager Scanner
1D Symbologies UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
2D Symbologies PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX),etc.
Note *This function is optional
Note2
LF RFID
Frequency
Protocol
Chips
Range
Note
Camera
Camera Rear 13MP Autofocus with flash
Front Camera
Top Camera
External Camera (optional)
Rear Camera
Internal Camera (Optional)
Note
Note2
Thermal Printer
Rate
Image Size (pixel)
Paper Width
Paper Diameter
Paper Length
NFC
Frequency 13.56 MHz
Protocol ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
Chips M1 card (S50, S70), CPU card, NFC tags, etc.
Range 2-4 cm
Remark
Note
Note2
LF RFID (with external antenna)
Frequency
Protocol
Chips
Range
Note
HF RFID
HF
Frequency
Protocol
Chips
Range
Note
Note2
Iris Recognition
Rate
Range
FAR
Note
Note2
Temperature Collection
Measure Position
Measure Method
Measure Distance
Measure Range
Measure Accuracy
Measure Duration
Spectral Range
Resolution
Note
HID iCLASS SE
Frequency
Chips
Protocol
OBD
Protocol
Reading Performance
Reading Rate
Reading Range
Optional accessories
Accessories Wrist Strap; Rubber Bumper; Charging Cradle
Note
