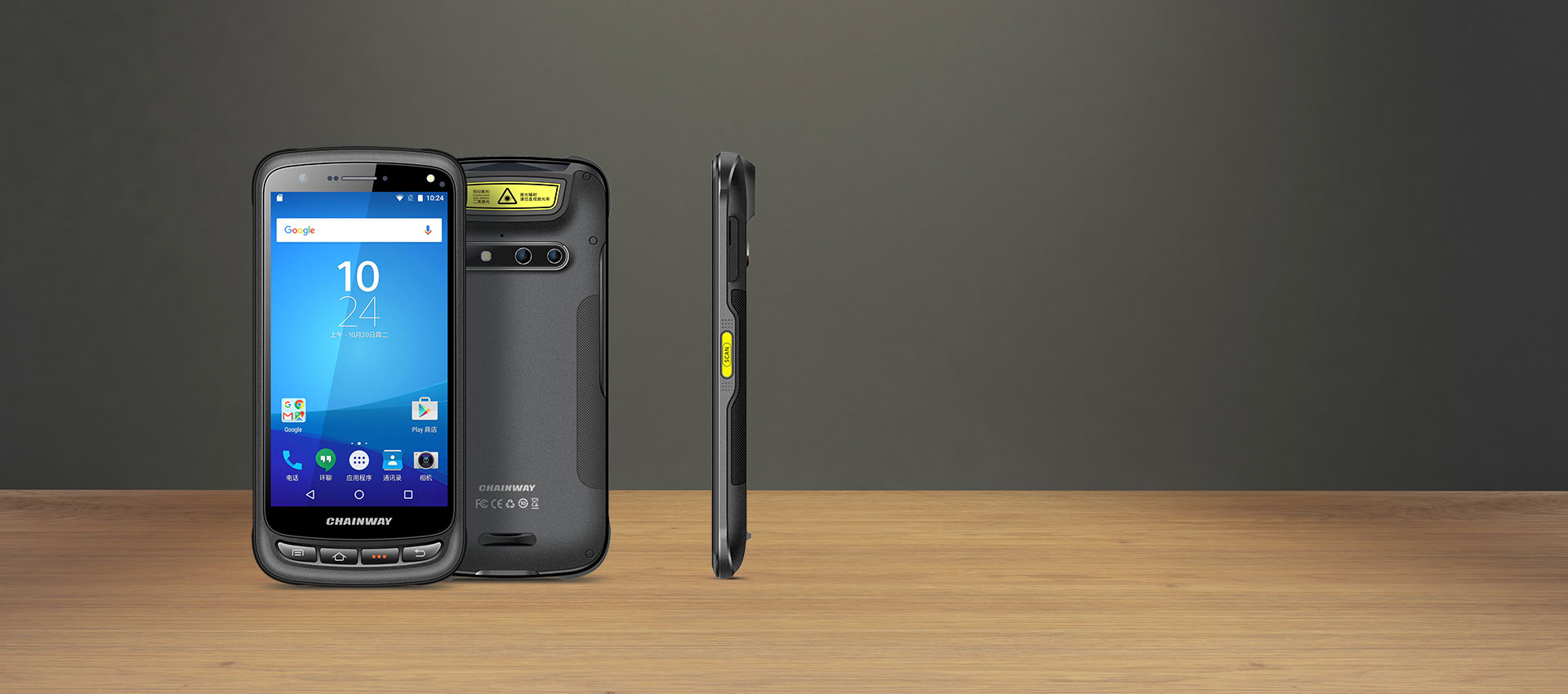

Ultra Thin & Light, Rugged Enough to Go Anywhere

Features
Android OS 4G/Dual-band WIFI
5.2'' IPS 1080P Screen 4000mAh Powerful Battery

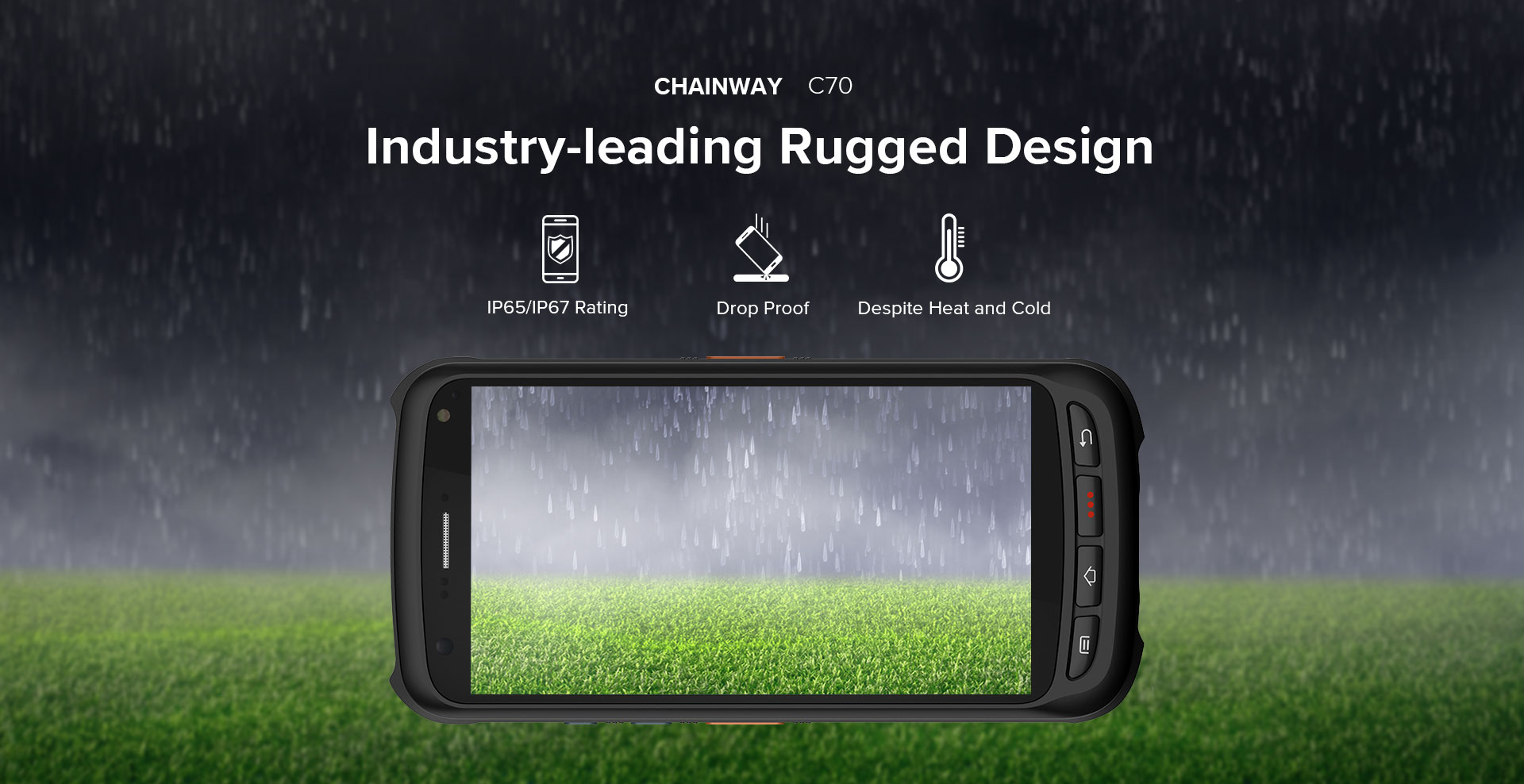

IP65/IP67 Sealing 1.8m Drop Proof
Functions
Industry-leading Scan Head NFC
Iris Scanning 13MP Autofocus Camera
GPS/BDS




SPECIFICATIONS

Performance Parameter
Optical system
Light Source
Image Sensor
Image (Pixels)
Field of View
Decoding Rate
Decoding Capabilities
Roll / Pitch / Yaw
Scanning speed
Print Contrast
Angle
Resolution
Depth of Field
Printing Contrast
Prompting Mode
Interface
Trigger Mode
Setting Mode
Frequency
Communication Distance
Transmission Rate
Current
Capability of Battery
Specification(USB IRIS Scanner)
Working Current
Start Current
Standby Current
Working Current
Resolution Ratio
FoV
Identification Range
Registration Range
Registration Time
Identification Time
Infared Wavelength
FAR
FRR
Frame Rate
Operating Temp.
Storage Temp.
Power Supply & Data Interface
Operating System Requirements
SDK Fitting System
Symbology Decode Capability
1-D
2-D
Decoding rate
Interfaces
Development Board
Module
Physical Characteristics
Dimensions 163.8*79.2*13.8mm/6.45*3.12*0.54in
Weight <242g/8.5oz

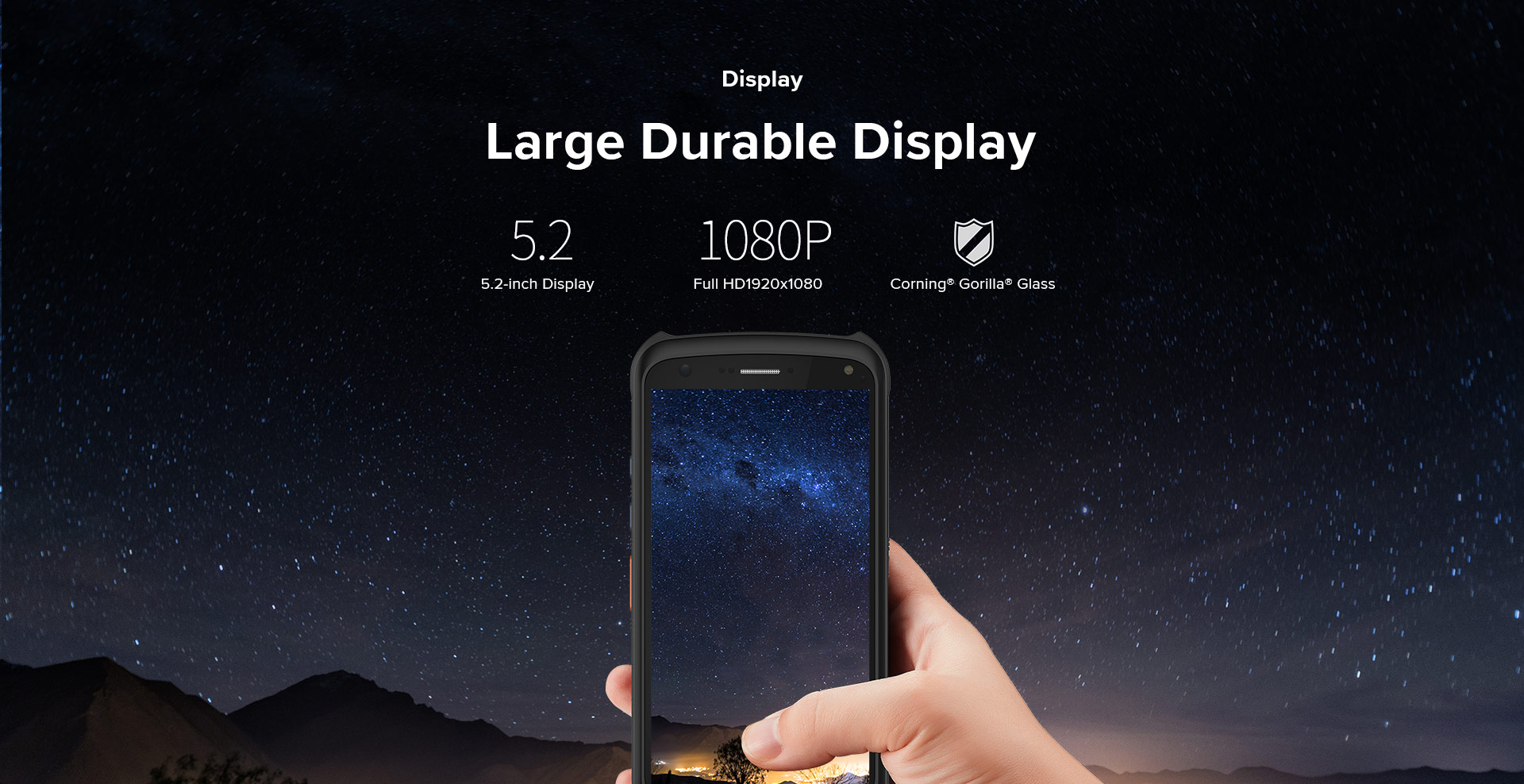

Display 5.2'' IPS FHD 1920x1080P
Touch Panel Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported

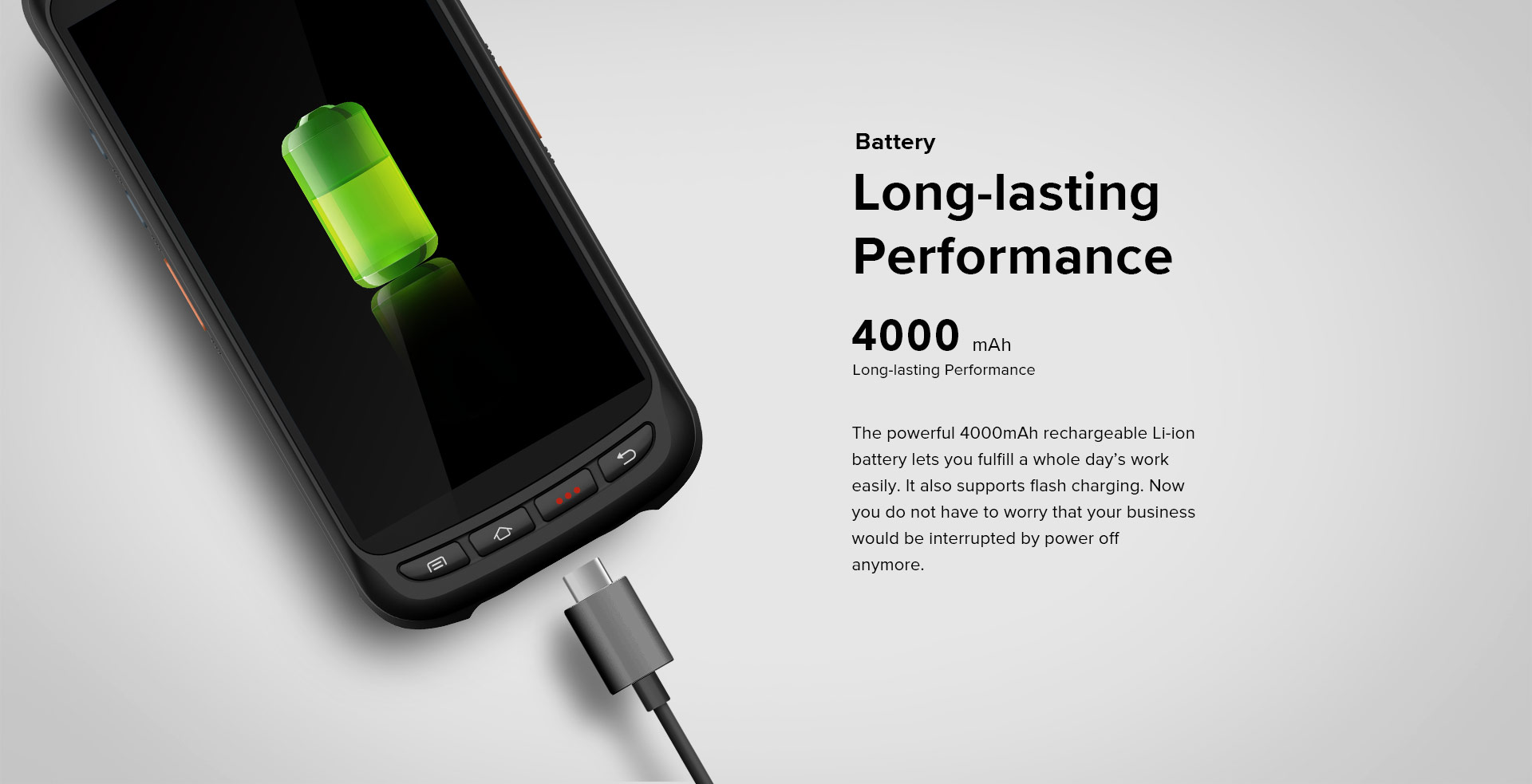

Power Main battery: Li-ion, rechargeable, 4000mAh
Standby: over 300 hours
Continuous use: over 12 hours (depending on user environment)
Charging time: 2-3 hours (with standard adaptor and USB cable)
Expansion Slot 1 slot for SIM card, 1 slot for SIM or TF card
Buzzer
Interfaces USB2.0 Type-C, OTG
Audio speaker, 2 microphones
Input Mode
Keypad 4 front buttons, 1 side button, 2 scan keys, 1 multifunctional key
Sensors Gravity sensor, Light Sensor, Proximity Sensor, Vibration Motor
Pupil Lamp
Indicator LED
Size of adapted phone
Product material
Colour
Voltage and Current
Material
AC Adapter
RFID Features
RF Chip
Air Interface Protocol
Working Frequency
Output Power
Output Power Flatness
Antenna Interface
Regions Supported
Receive Sensitivity
Tag RSSI
Antenna Detector
Ambient Temp Monitor
Working Mode
Communication Interface
Connector
Host Communication
Power Supply
Input Voltage
Power Consumption in RF Output Mode
Power Consumption in Standby Mode(EN high TTL level)
Power Consumption in Power Down Mode(EN low TTL level)
User Environment
Input Voltage

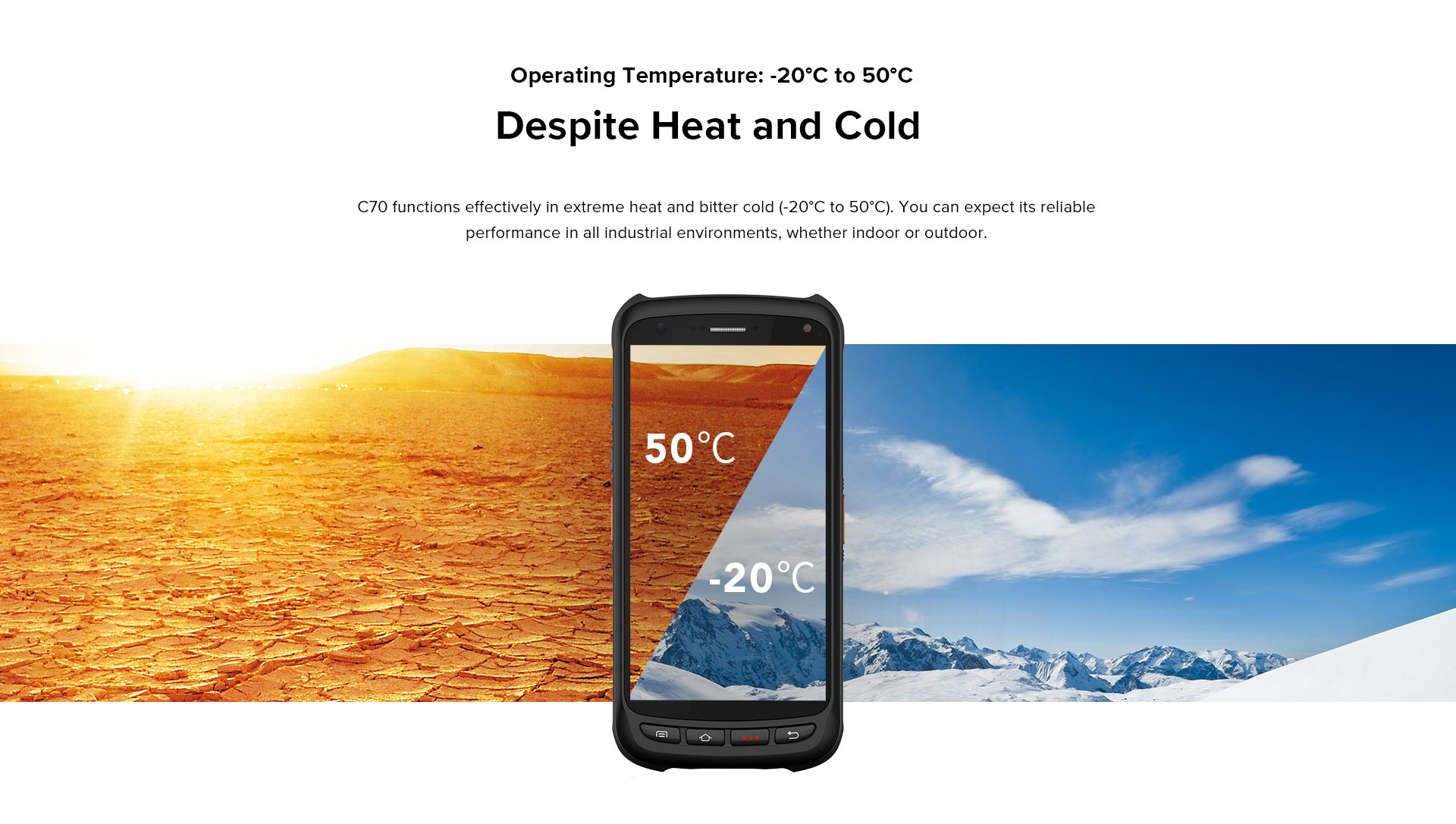

Operating Temp. -4°F to 122°F / -20°C to 50°C
Storage Temp. -40°F to 158°F / -40°C to 70°C
Humidity 5%RH - 95%RH non condensing
Luminance of environment
Drop Specification Multiple 1.8m/5.9ft drops (at least 20 times) to the

concrete across the operating temperature range
Tumble Specification 1000 x 0.5m/1.64ft falls at room temperature
Ambient Light Immunity

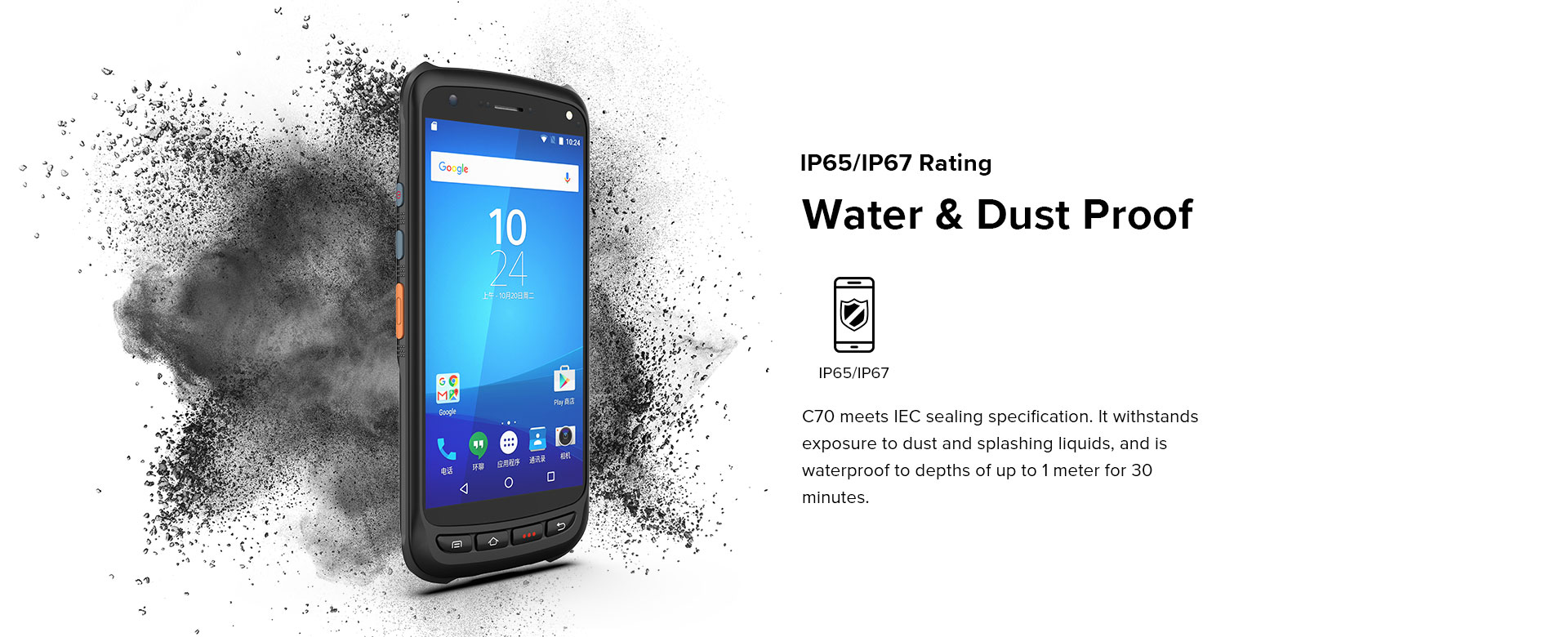

Sealing IP65/IP67 per IEC sealing specifications
ESD ±15KV air discharge, ±6KV conductive discharge
Performance
CPU(1)
CPU Cortex-A53 Quad-core 1.45GHz/Cortex-A53 Octa-core 2.5GHz
RAM+ROM(1)
Option 1
Option 2
CPU(2)
RAM+ROM 2GB+16GB(Quad-core)/3GB+32GB(Octa-core)
High-level Configuration
MCU
Low-level Configuration
RAM+ROM(2)
RAM+ROM

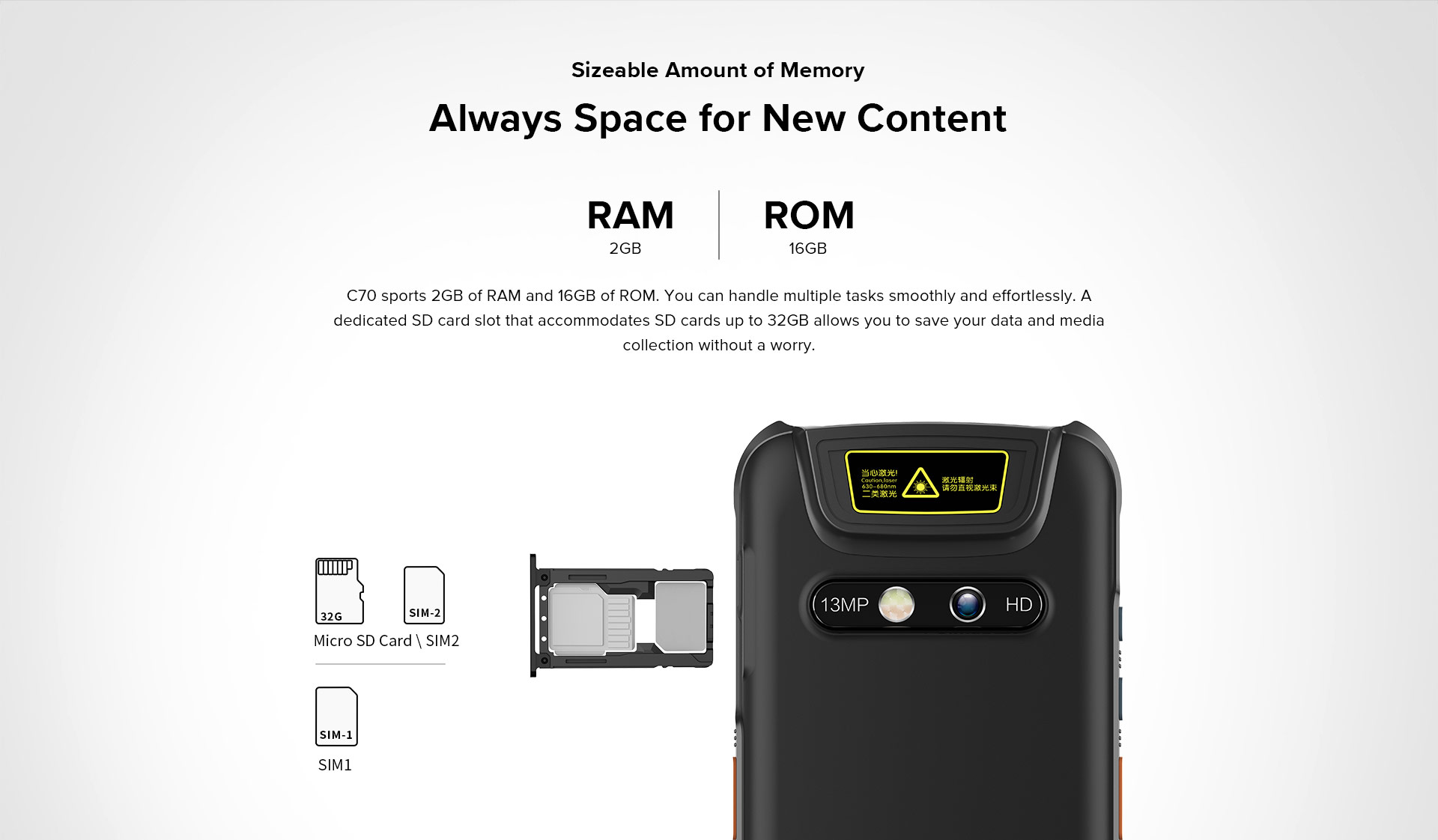

Expansion Supports up to 128 GB Micro SD card
Developing Environment
Operating System Android 6.0(Quad-core)/Android 8.1(Octa-core)
SDK Chainway Software Development Kit
Language Java
Tool Eclipse / Android Studio
Communication(Quad-core)
WLAN IEEE802.11 a/b/g/n, 2.4G/5G dual-band, internal antenna
WWAN (Europe) 2G: 850/900/1800/1900MHz
3G: 850/900/1900/2100MHz
4G: B1, B3, B5, B7, B8, B20, B40
WWAN (America) 2G: 850/900/1800/1900MHz
3G: 850/900/1700/1900MHz
4G: B2, B4, B7, B12, B17
WWAN (China) 2G: 900/1800MHz
3G: 900/1900/2000/2100MHz
4G: TDD-LTE: B38, B39, B40, B41
       FDD-LTE: B1, B3, B5
WWAN (Others) Depending on the country's ISP

Note:
C70 models being manufactured for Turkish Market, do not include Voice Call (Phone Call) function. WAN module included on those models only support DATA transfer.
Bluetooth Bluetooth 4.0, BLE
GNSS GPS/AGPS, GLONASS, BeiDou; internal antenna
Communication(Octa-core)
WLAN IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, internal antenna
WWAN (China) 2G: 900/1800MHz
3G: WCDMA: B1,B8
       CDMA2000 EVDO: BC0
       TD-SCDMA: B34,B39
4G: B1,B3,B5,B8,B34,B39,B40,B41
WWAN (Overseas) 2G: 850/900/1800/1900MHz
3G: B1,B2,B4,B5,B8
4G: B1,B2,B3,B4,B5,B7,B8,B12,B17,B20,B25,B40,B66
WWAN (Others) Depending on the country's ISP
Bluetooth Bluetooth v2.1+EDR,3.0+HS,v4.1+HS
GNSS GPS/AGPS, GLONASS, BeiDou; internal antenna
Communication
WLAN
WWAN (Optional)
WWAN
WWAN (Europe)
WWAN (America)
WWAN (China)
WWAN (Others)
Bluetooth
GPS
GNSS
GPS (Optional)
GNSS(Optional)
Fingerprint
Functions
Memory
Sensor
Image Size (pixel)
Sensing Area (mm)
Resolution (dpi)
Standard
Formats
Certifications
Format Extraction
Security
Fake Finger Detection
Module
Sensor Type
Pixel Array
Note
UHF RFID
Engine
Frequency
Protocol
Antenna
Power
R/W ranges
Reading rates (circular polarization)
Reading rate
Note
Note2
PSAM
Protocol
Slots
Note
InfraRed
Wavelength
Frequency
Range
Protocol
Note
Barcode Scanning
1D Linear Scanner
2D Imager Scanner Zebra SE4710 / Honeywell N6603
Scan engine
1D Symbologies UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
2D Symbologies PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.
Note *This function is optional
Note2
LF RFID
Frequency
Protocol
Chips
Range
Note
Camera
Camera 13MP autofocus rear camera with flash, optional 5MP front camera
Front Camera
Top Camera
External Camera (optional)
Rear Camera
Note
Note2
Thermal Printer
Rate (mm/s)
Image Size (pixel)
Paper Width (mm)
NFC
Frequency 13.56MHz
Protocol ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
Chips M1 card (S50, S70), CPU card, NFC tags, etc.
Range 2-4cm
Remark
Note
Note2
LF RFID (with external antenna)
Frequency
Protocol
Chips
Range
Note
HF RFID
HF
Frequency
Protocol
Chips
Range
Note
Note2
Iris Recognition
Rate <150ms
Range 20-40cm
FAR 1/10000000
Note Protocol:ISO/IEC 19794-6,GB/T 20979-2007
Note2 *This function is optional
*Iris is alternative to front camera
HID iCLASS SE
Frequency
Chips
Protocol
OBD
Protocol
Reading Performance
Reading Rate
Reading Range
