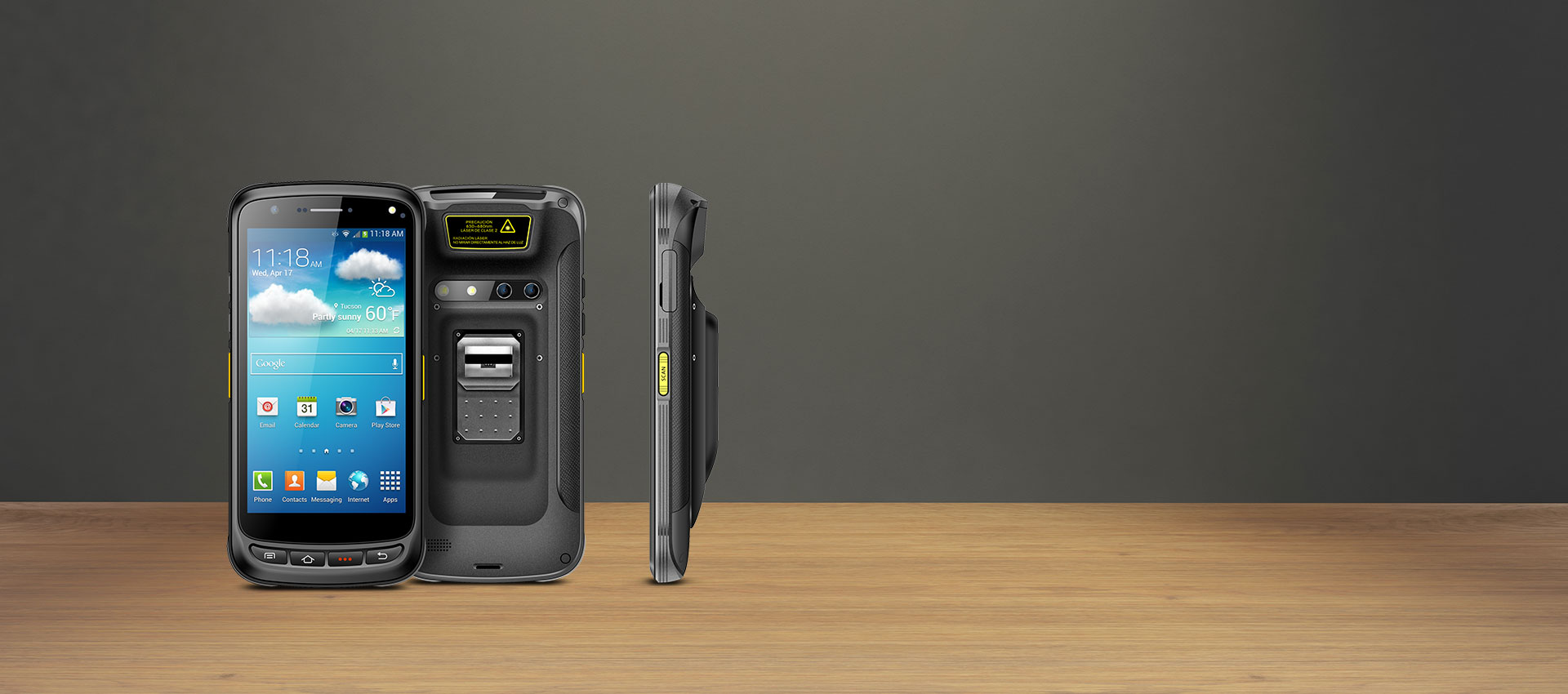

C71 Mobile Computer with Fingerprint

C71 Optical Fingerprint

Accurate Fingerprint Reading, Reliable Identity Verification

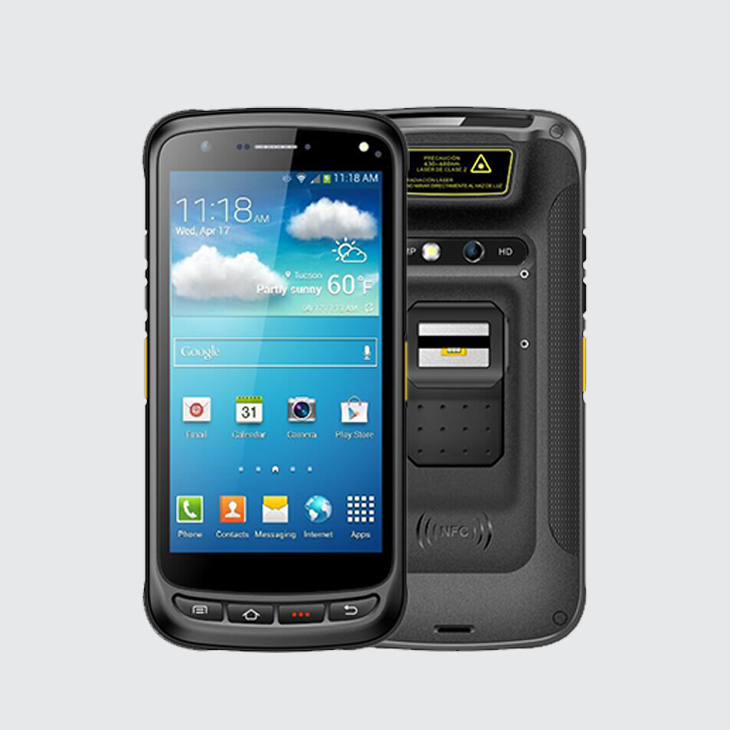

Chainway C71 is an Android rugged mobile computer. It is improved to enable optical fingerprint sensor CBM-E3. C71 is revolutionized to be FIPS 201 compliant, and enable secure data encryption and fake finger detection. It features powerful quad-core processor and wireless connections such as 4G, Bluetooth and Wi-Fi, optical fingerprint scanner, 1D/2D barcoding as well as other data capture options, including iris recognition and HF RFID/NFC.

Get Quote

Accurate Fingerprint Reading, Reliable Identity Verification

Features

Android 6.0 OS	4G/Dual-band WIFI
5.2'' IPS 1080P Screen	5000mAh Powerful Battery
IP65/IP67 Sealing	1.8m Drop Proof

Functions

Industry-leading Scan Engine	HF RFID/NFC
Fingerprint Authentication	Iris Scanning
13MP Autofocus Camera	GPS/BDS

SPECIFICATIONS

Performance Parameter
Optical system
Light Source
Image Sensor
Image (Pixels)
Field of View
Decoding Rate
Decoding Capabilities
Roll / Pitch / Yaw
Scanning speed
Print Contrast
Angle
Resolution
Depth of Field
Printing Contrast
Prompting Mode
Interface
Trigger Mode
Setting Mode
Frequency
Communication Distance
Transmission Rate
Current
Capability of Battery

Specification(USB IRIS Scanner)
Working Current
Start Current
Standby Current
Working Current
Resolution Ratio
FoV
Identification Range
Registration Range
Registration Time
Identification Time
Infared Wavelength
FAR
FRR
Frame Rate
Operating Temp.
Storage Temp.
Power Supply & Data Interface
Operating System Requirements
SDK Fitting System

Symbology Decode Capability
1-D
2-D
Decoding rate
Interfaces

Development Board
Module

Physical Characteristics
Dimensions	164.278.817.5mm/6.463.100.69in (the thickest: 31.5mm/1.24in)
Weight	＜314g/11.08oz
Display	5.2'' IPS FHD 1920x1080P
Battery
Touch Panel	Corning Gorilla Glass 3, multi-touch panel, gloves and wet hands supported
Power	Main battery: Li-ion, rechargeable, 5000mAh Standby: over 350 hours Continuous use: over 12 hours (depending on user environment) Charging time: 3-4 hours (with standard adaptor and USB cable)
Speaker
Vibrator
Microphone
Expansion Slot	1 slot for SIM card, 1 slot for SIM or TF card
Buzzer
Interfaces	USB 2.0, Type-C
Card slot
Audio	Speaker, 2 microphones
Input Mode
Keypad	4 front keys, 1 power key, 2 scan keys, 1 multifunctional key
Sensors	Gravity sensor, light sensor, proximity sensor, vibration motor
Pupil Lamp
Indicator LED
Size of adapted phone
Product Material
Colour
Voltage and Current
Material
Input Voltage
Standby Current
AC Adapter
Sleep Current
Comm Interface
GPIO
Baud Rate
Cooling Mode
Work Current
Display Interface

RFID Features
RF Chip
Air Interface Protocol
Working Frequency
Output Power
Output Power Flatness
Antenna Interface
Regions Supported
Receive Sensitivity
Tag RSSI
Antenna Detector
Ambient Temp Monitor
Working Mode

Communication Interface
Connector
Host Communication

Power Supply
Input Voltage
Power Consumption in RF Output Mode
Power Consumption in Standby Mode（EN high TTL level）
Power Consumption in Power Down Mode（EN low TTL level）

User Environment
Input Voltage
Operating Temp.	4°F to 122°F / -20°C to 50°C
Storage Temp.	-40°F to 158°F / -40°C to 70°C
Humidity	5%RH - 95%RH non condensing
Luminance of environment
Drop Specification	Multiple 1.8m/5.9ft drops (at least 20 times) to the concrete across the operating temperature range
Tumble Specification	1000 x 0.5m/1.64ft falls at room temperature
Ambient Light Immunity

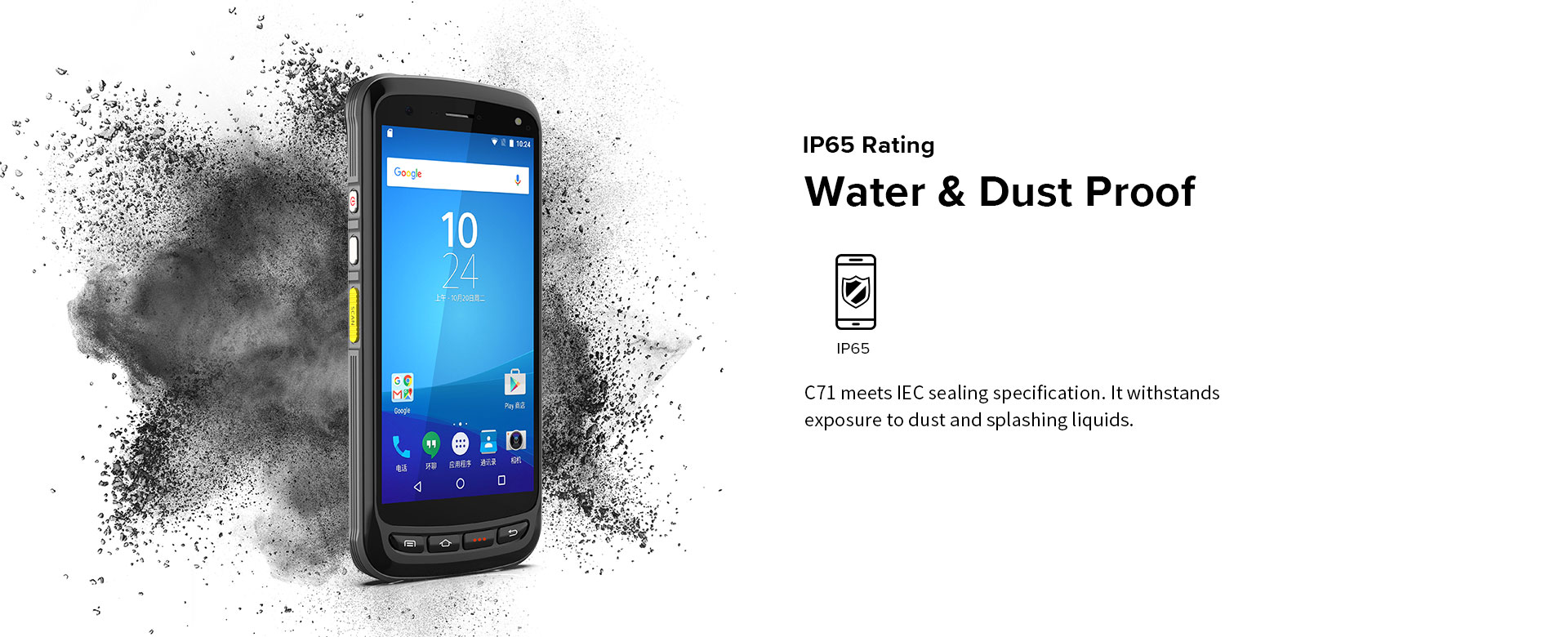

Sealing	IP65/IP67 dependent
ESD	±15KV air discharge, ±6KV conductive discharge

Developing Environment
Operating System	Android 6.0
SDK	Chainway Development Kit (based on Morpho SDK)
Language	Java
Tool	Eclipse / Android Studio

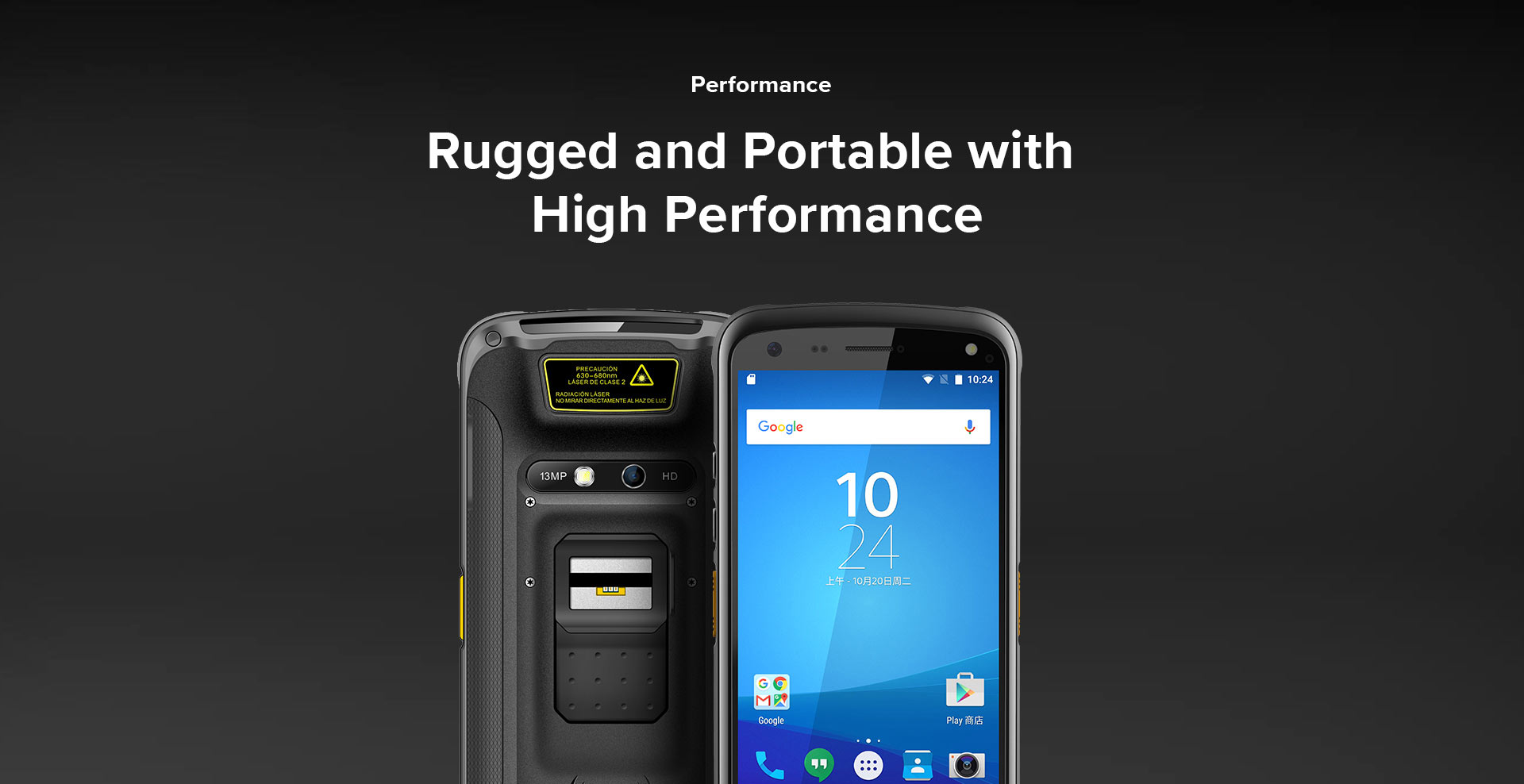

Performance
CPU（1）
CPU	Cortex-A53 Quad-core 1.45GHz
RAM+ROM（1）
Option 1
Option 2
CPU（2）

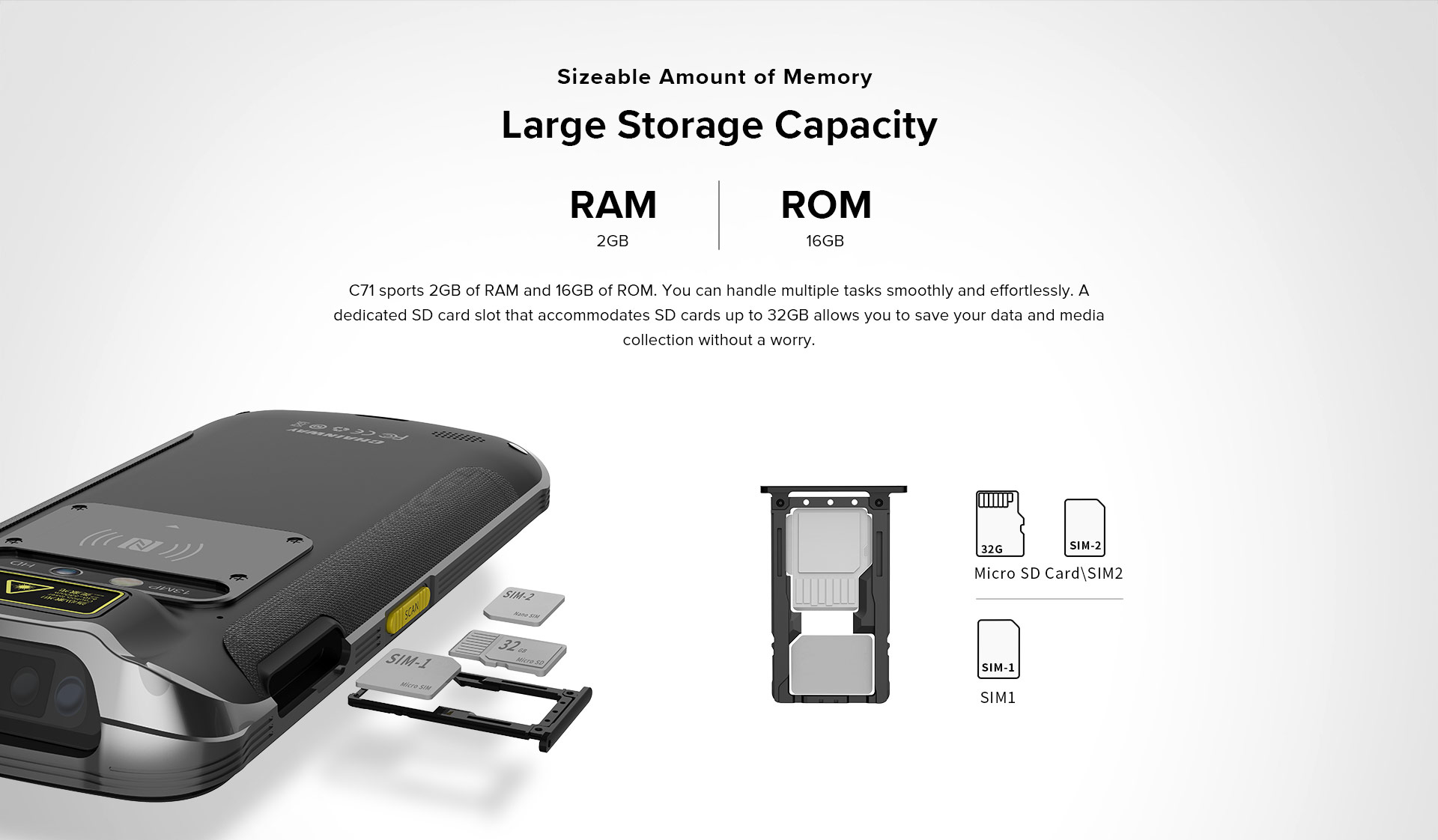

RAM+ROM	2GB+16GB
High-level Configuration
MCU
Low-level Configuration
RAM+ROM（2）
RAM+ROM
Expansion	Supports up to 128 GB Micro SD card
Storage

UHF1 (Optional, UHF Back Clip)
Engine
Frequency
Protocol
Antenna
Power
R/W range
Reading rate
Note

UHF2 (Optional, UHF Sled)
Engine
Frequency
Protocol
Antenna
Power
R/W range
Reading rate
Note

Communication(Quad-core)
WLAN
WWAN (China)
WWAN (Europe)
WWAN (America)
WWAN (Others)
Bluetooth
GNSS
Note

Communication(Octa-core)
WLAN
WWAN (China)
WWAN(Europe)
WWAN (America)
WWAN (Others)
Bluetooth
GNSS

Communication
WLAN	IEEE802.11 a/b/g/n, 2.4G/5G dual-band, internal antenna
WWAN (Optional)
WWAN
WWAN (Europe, Asia)
WWAN (Europe)	2G: 850/900/1800/1900MHz 3G: 850/900/1900/2100MHz 4G: B1, B3, B5, B7, B8, B20, B40
WWAN (America)	2G: 850/900/1800/1900MHz 3G: 850/900/1700/1900MHz 4G: B2, B4, B7, B12, B17
WWAN (China)	2G: 900/1800MHz 3G: 900/1900/2000/2100MHz 4G: B1, B3, B5, B38, B39, B40, B41
WWAN (Others)	Depending on the country's ISP Note: C71 models being manufactured for Turkish Market, do not include Voice Call (Phone Call) function. WAN module included on those models only support DATA transfer.
Bluetooth	Bluetooth 4.0, BLE
GPS

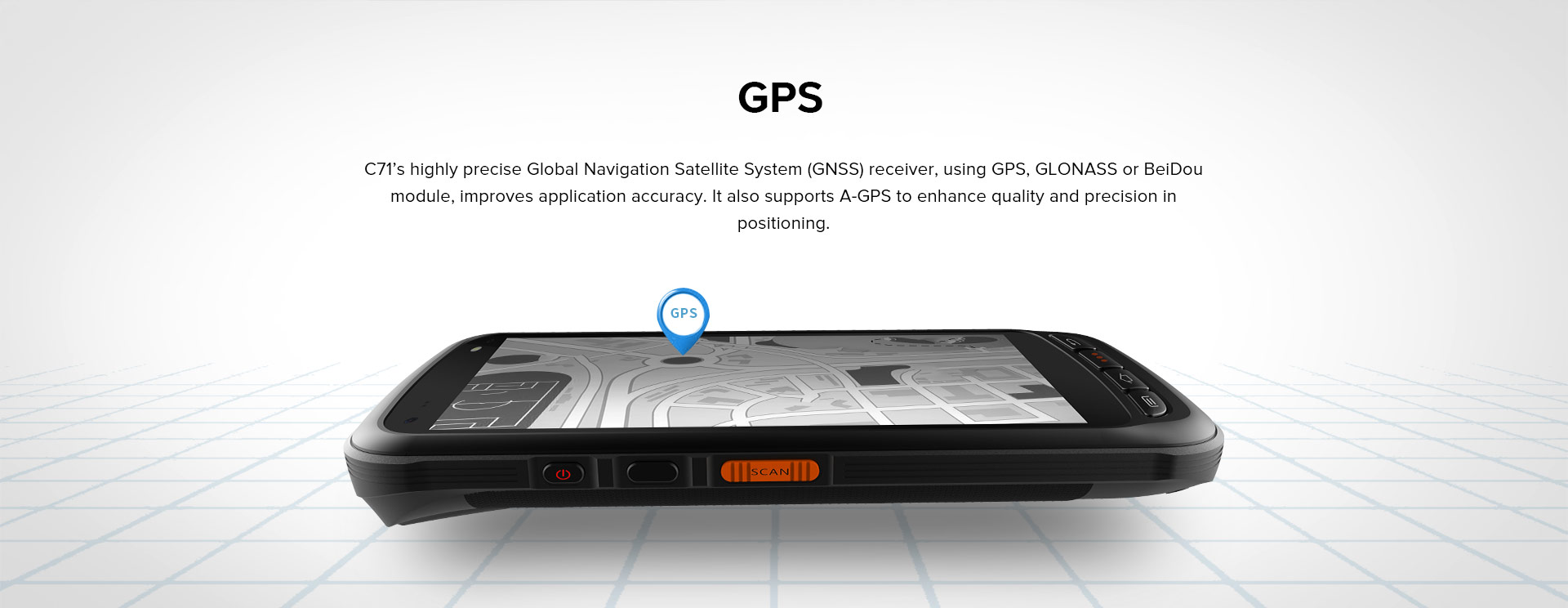

GNSS	GPS/AGPS, GLONASS, BeiDou; internal antenna
GPS (Optional)
GNSS（Optional）

Fingerprint
Functions
Memory

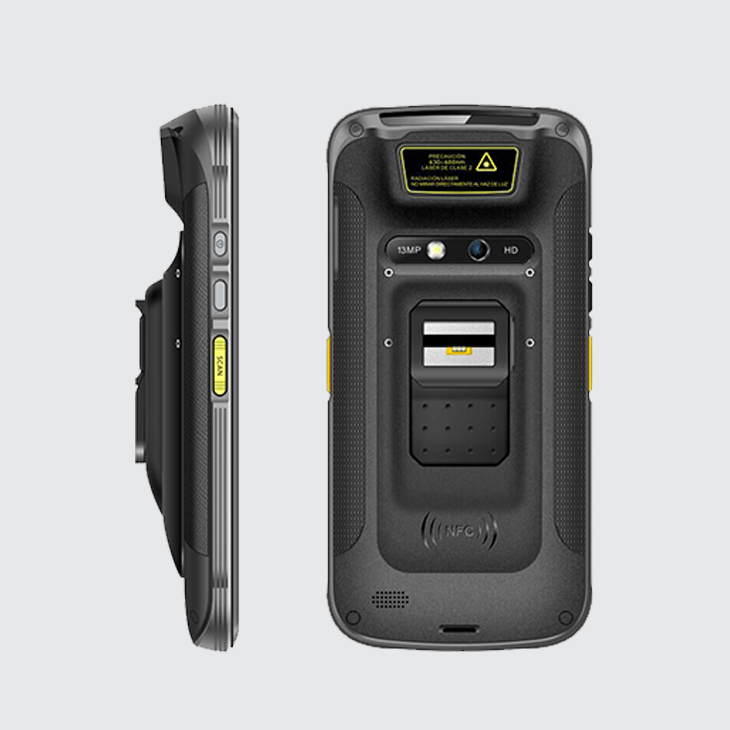

Sensor	Optical Morpho CBM-E3
Image Size (pixel)
Sensing Area (mm)	14x22
Resolution (dpi)	500 dpi, 256 greylevel
Standard
Formats
Certifications	FIPS PIV IQS / ISO 19794-4, MINEX & FIPS 201 complaint, STQC
Format Extraction	ISO 19794-2/4, WSQ, ANSI 378, etc.
Security	FIPS 140-2 level 2, multiple security methods available, including image and templates encryption, template signature, secure tunneling, etc.
Fake Finger Detection
Module
Sensor Type
Pixel Array
Note

PSAM
Protocol
Slots
Note

UHF RFID
Engine
Frequency
Protocol
Antenna
Power
R/W ranges
Reading rates (circular polarization)
Output Power
Output Power Precision
Output Power Flatness
Receive Sensitivity
RSSI
Ambient Temp Monitor
Reading rate
Antenna Detector
Antenna Port
Note
Note2

InfraRed
Wavelength
Frequency
Range
Protocol
Note

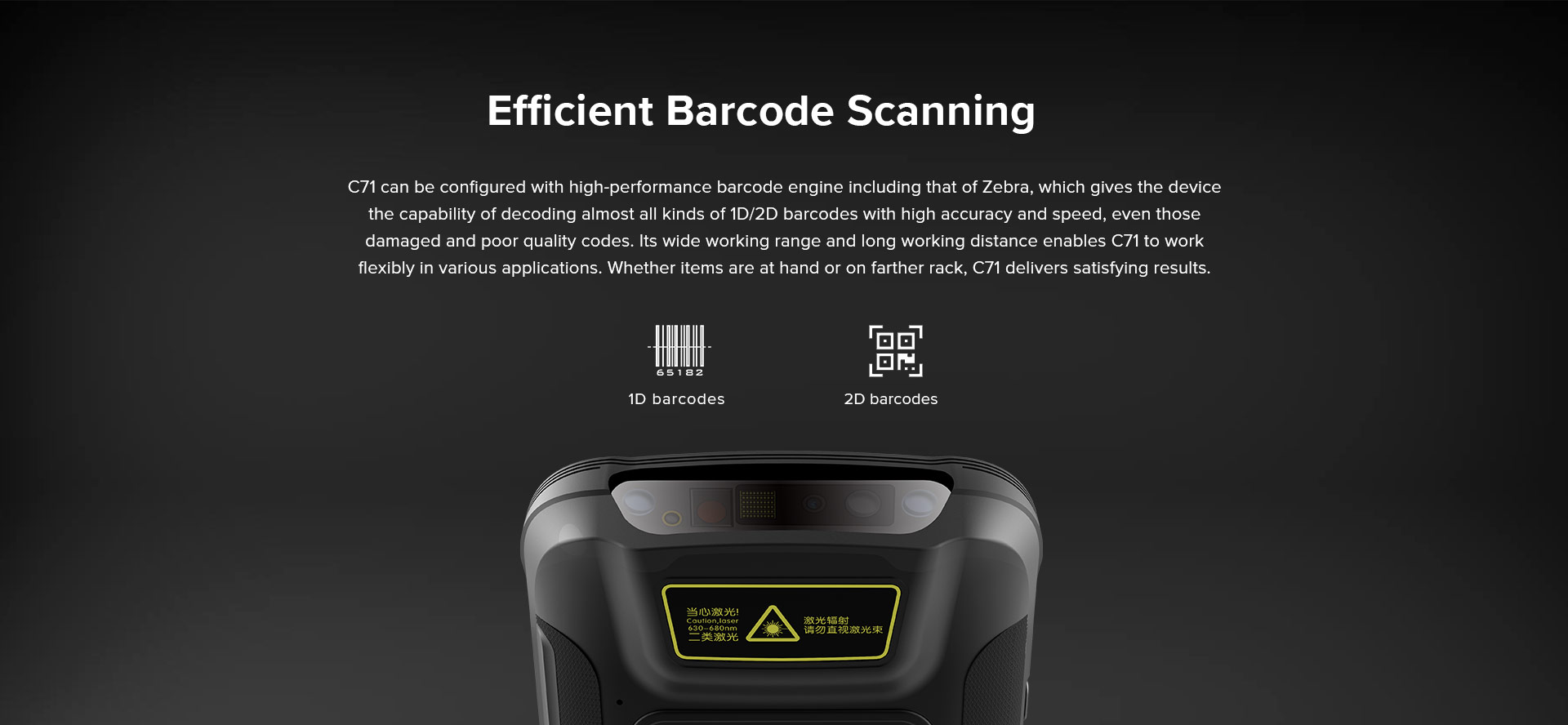

Barcode Scanning
2D Scanner
Scan engine(Quad-core)
Scan engine(Octa-core)
1D Linear Scanner
Scan engine
1D Linear Scanner（Quad-core）	Zebra SE965 / Honeywell N4313
1D Symbologies	UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
2D Imager Scanner(Quad-core)	Zebra: SE4710 / SE4750 / SE4750MR; Honeywell: N6603
2D Imager Scanner(Octa-core)	Zebra: SE2707
2D Imager Scanner
2D Symbologies	PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.
Note	*This function is optional
Note2

LF RFID
Frequency
Protocol
Chips
Range
Note

Camera
Camera	13MP autofocus rear camera with flash, optional 5MP front camera
Front Camera
Top Camera
External Camera (optional)
Rear Camera
Note
Note2

Thermal Printer
Rate
Image Size (pixel)
Paper Width
Paper Diameter
Paper Length

NFC
Frequency	13.56MHz
Protocol	ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc
Chips	M1 card (S50, S70), CPU card, NFC tags, etc
Range	2-4cm
Remark
Note
Note2

LF RFID (with external antenna)
Frequency
Protocol
Chips
Range
Note

HF RFID
HF
Frequency
Protocol
Chips
Range
Note
Note2

Iris Recognition
Rate	<150ms
Range	20-40cm
FAR	1/10000000
Note	Protocol：ISO/IEC 19794-6，GB/T 20979-2007
Note2	This function is optional Iris is alternative to front camera

HID iCLASS SE
Frequency
Chips
Protocol

OBD
Protocol

Reading Performance
Reading Rate
Reading Range

Optional accessories
Accessories
Note

DOWNLOADS

Documents & Manuals
C71 Optical Fingerprint Data Sheet 2018-11-20		PDF
C7X Accessories Guide 2018-11-20		PDF
C71 User Manual 2018-11-20		PDF

Softwares
APPcenter 2018-12-20		ZIP
KeyboardEmulator 2018-12-20		ZIP

Certificates
ISO9001 2017-07-10		PDF
ISO14001 2017-07-10		PDF
C71-CE 2017-11-13		PDF
C71-1.8m Drop Test Report 2017-09-05		PDF
C71-RoHS 2017-10-12		PDF
C71-IMEI TAC 2017-09-28		PDF
C71-CCC 2017-11-28		PDF
C71-FCC 2017-12-22		PDF
C71-Report for Safe Transport 2018-11-21		PDF
ISO18001 2018-11-21		PDF
