Handheld UHF RFID Reader

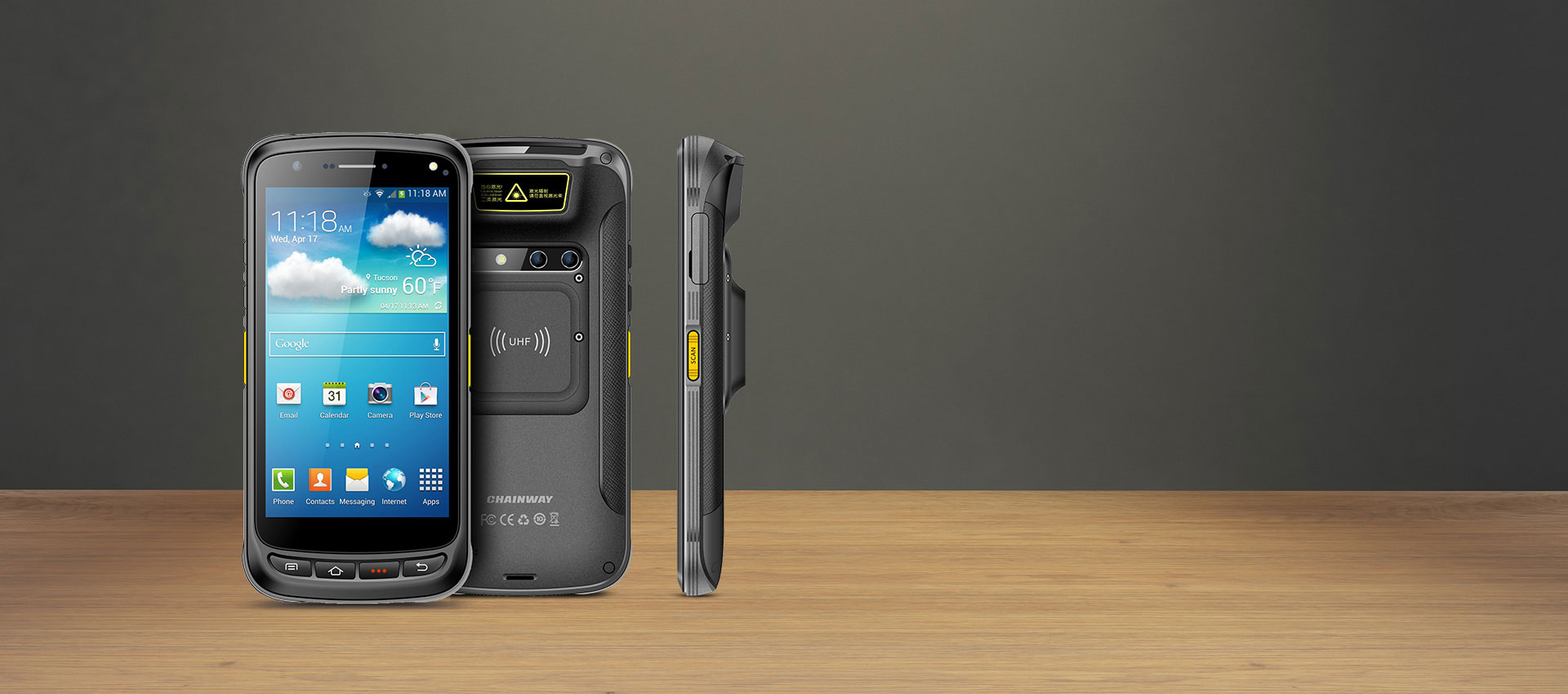

C71 UHF RFID Reader

Superior UHF RFID Capability, Precise and Swift Results

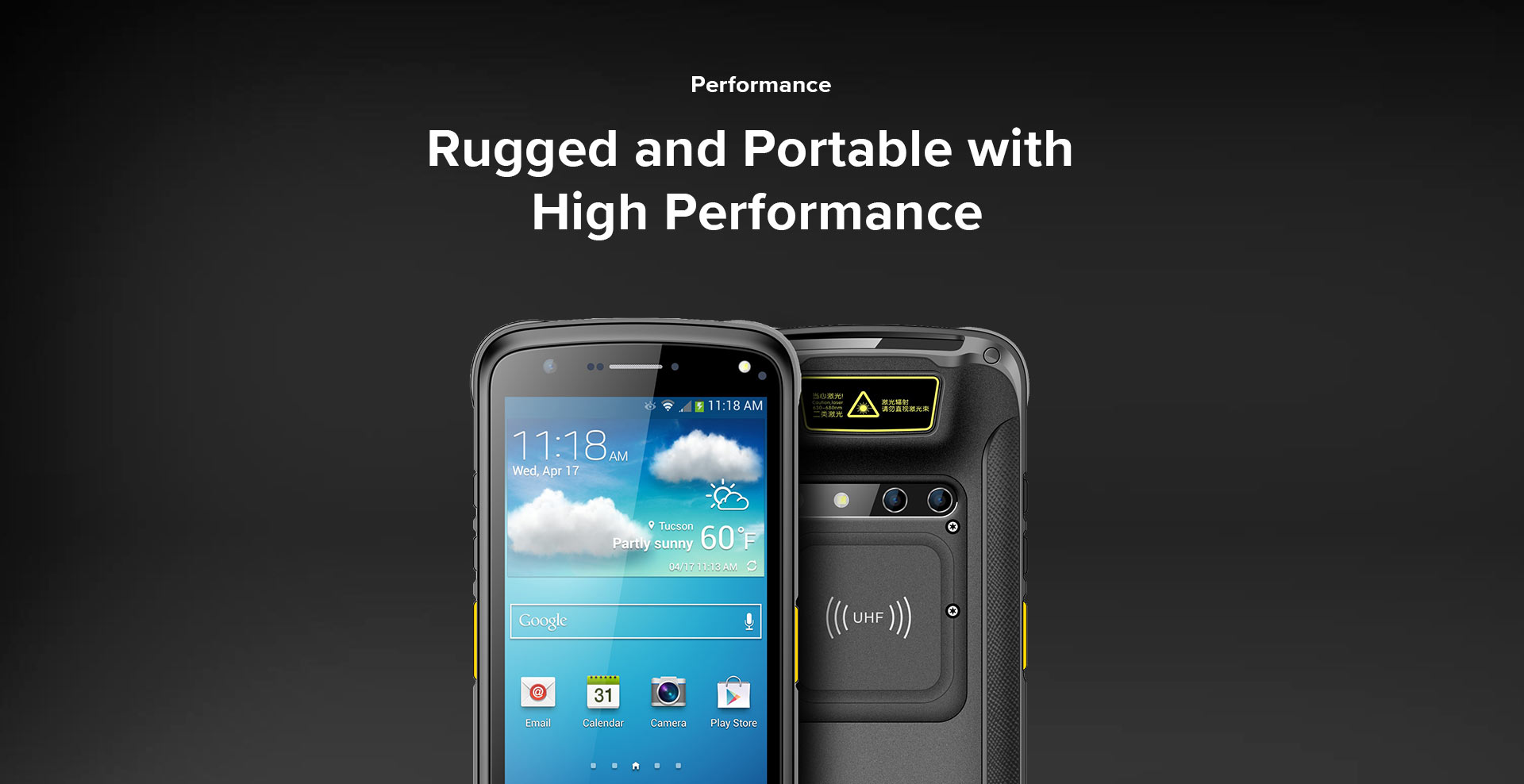

Chainway C71 is an Android rugged mobile computer. It can be configured with internal UHF module with 1 dBi circularly polarized antenna. With its powerful quad-core processor and wireless connections such as 4G, Bluetooth and Wi-Fi, UHF RFID, 1D/2D barcoding, iris recognition and NFC, you can find this easy-to-deploy device an exceptionally valuable helper to increase working efficiency and productivity. C71 with abundant functions can best satisfy your different industrial needs.

Get Quote

Superior UHF RFID Capability, Precise and Swift Results

Features

Android 6.0 OS	4G/Dual-band WIFI
5.2'' IPS 1080P Screen	5000mAh Powerful Battery
IP65 Sealing	1.8m Drop Proof

Functions

Industry-leading Scan Head	UHF RFID
NFC	Iris Scanning
13MP Autofocus Camera	GPS/BDS

SPECIFICATIONS

Performance Parameter
Optical system
Light Source
Image Sensor
Image (Pixels)
Field of View
Decoding Rate
Decoding Capabilities
Roll / Pitch / Yaw
Scanning speed
Print Contrast
Angle
Resolution
Depth of Field
Printing Contrast
Prompting Mode
Interface
Trigger Mode
Setting Mode
Frequency
Communication Distance
Transmission Rate
Current
Capability of Battery

Symbology Decode Capability
1-D
2-D
Decoding rate
Interfaces

Development Board
Module

Physical Characteristics
Dimensions	164.278.817.5mm/6.463.100.69in
Weight	＜321g/11.32oz
Display	5.2'' IPS LTPS FHD 1920x1080
Touch Panel	Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported

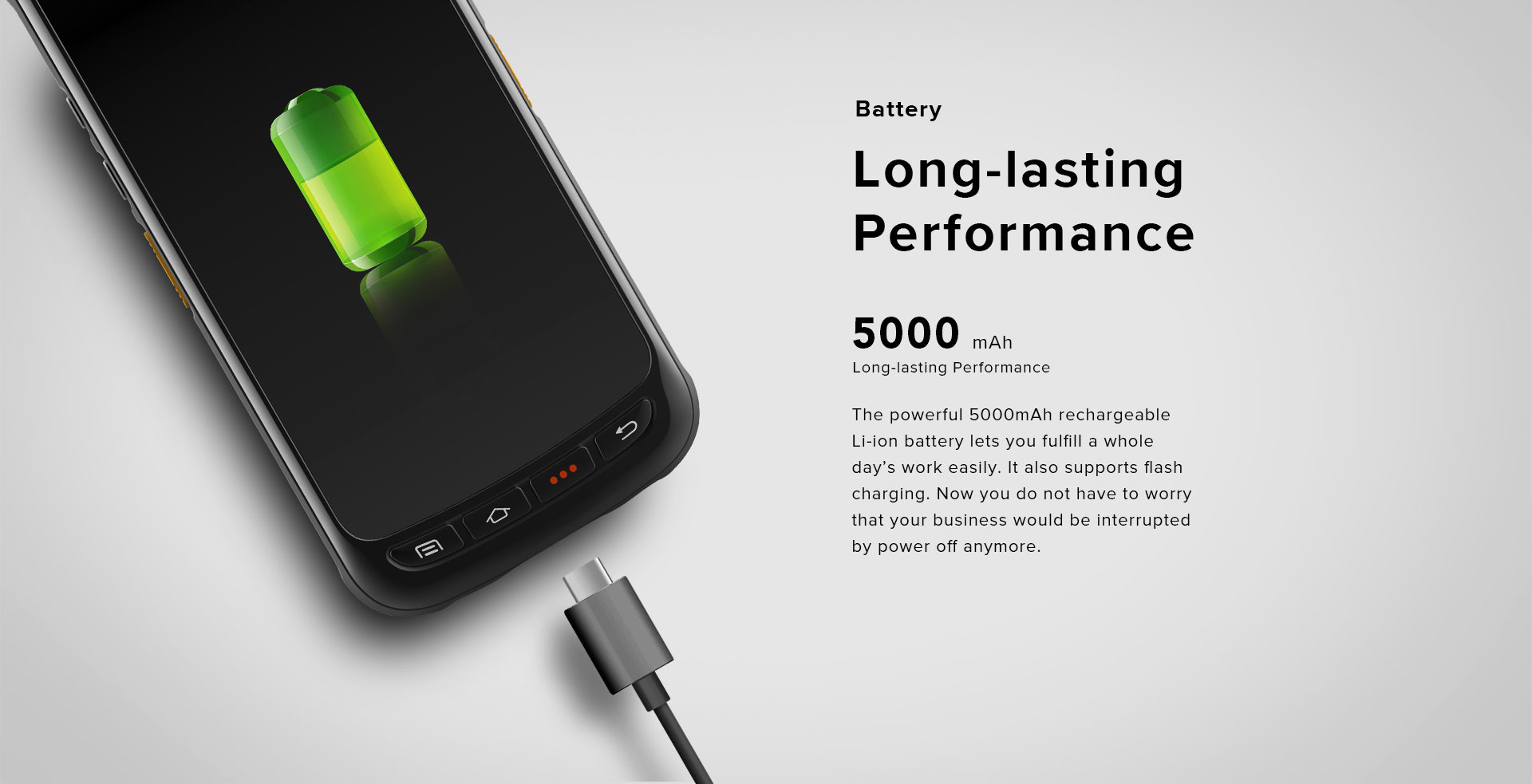

Power	Main battery: Li-ion, rechargeable, 5000mAh Standby: over 350 hours Continuous use: over 12 hours (depending on user environment) Charging time: 3-4 hours (with standard adaptor and USB cable)
Expansion Slot	1 slot for SIM card, 1 slot for SIM or TF card
Interfaces	USB 2.0 Type-C, OTG
Audio	Speaker, 2 microphones
Input Mode
Keypad	4 front keys, 1 power key, 2 scan keys, 1 multifunctional key
Sensors	Gravity sensor, light sensor, proximity sensor, vibration motor
Pupil Lamp
Voltage and Current
Material
AC Adapter

RFID Features
RF Chip
Air Interface Protocol
Working Frequency
Output Power
Output Power Flatness
Antenna Interface
Regions Supported
Receive Sensitivity
Tag RSSI
Antenna Detector
Ambient Temp Monitor
Working Mode

Communication Interface
Connector
Host Communication

Power Supply
Input Voltage
Power Consumption in RF Output Mode
Power Consumption in Standby Mode（EN high TTL level）
Power Consumption in Power Down Mode（EN low TTL level）

User Environment
Input Voltage
Operating Temp.	4°F to 122°F / -20°C to 50°C
Storage Temp.	-40°F to 158°F / -40°C to 70°C
Humidity	5% RH - 95% RH non condensing
Luminance of environment
Drop Specification	Multiple 1.8m/5.9ft drops (at least 20 times) to the concrete across the operating temperature range
Tumble Specification	1000 x 0.5m/1.64ft falls at room temperature
Ambient Light Immunity

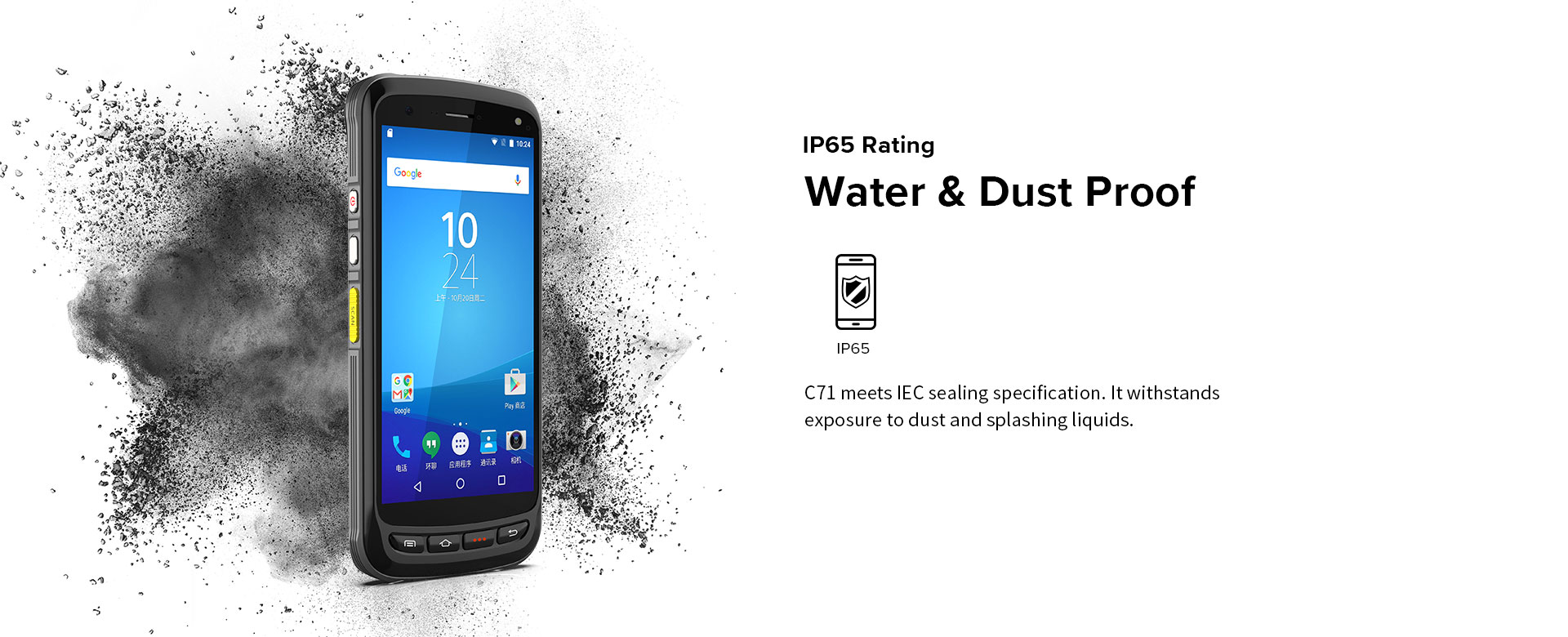

Sealing	IP65 per IEC sealing specifications
ESD	±8KV air discharge, ±4KV conductive discharge

Performance
CPU（1）
CPU	Cortex-A53 Quad-core 1.3GHz
RAM+ROM（1）
Option 1
Option 2
CPU（2）

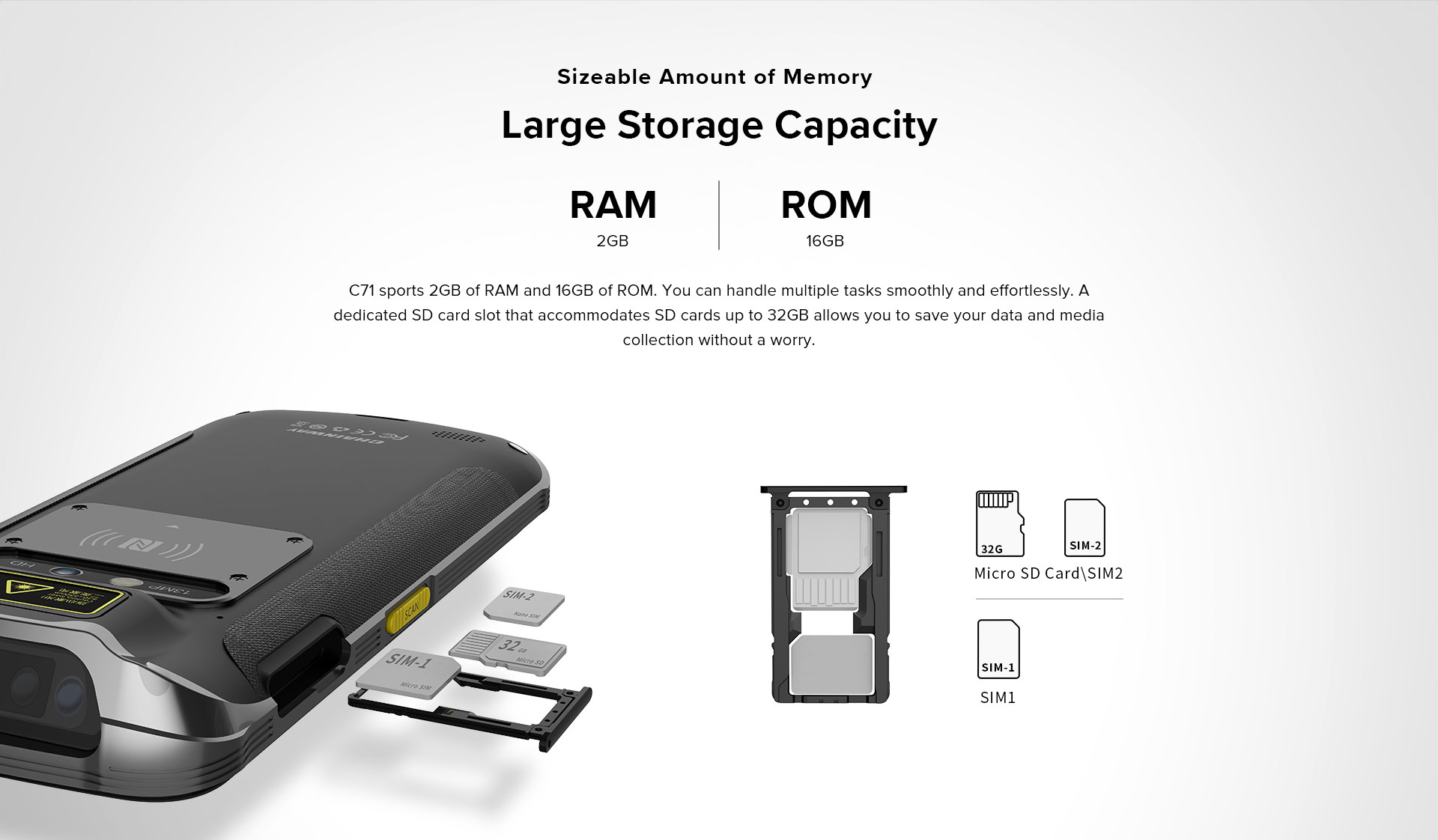

RAM+ROM	2GB+16GB
High-level Configuration
Low-level Configuration
RAM+ROM（2）
RAM+ROM
Expansion	Supports up to 32 GB Micro SD card

Developing Environment
Operating System	Android 6.0
SDK	Chainway Software Development Kit
Language	Java
Tool	Eclipse / Android Studio

Communication
WLAN	IEEE802.11 a/b/g/n, 2.4G/5G dual-band, internal antenna
WWAN (Optional)
WWAN
WWAN (Europe)	2G: 850/900/1800/1900MHz 3G: 850/900/1900/2100MHz 4G: B1, B3, B5, B7, B8, B20, B40
WWAN (America)	2G: 850/900/1800/1900MHz 3G: 850/900/1700/1900MHZ 4G: B2, B4, B7, B12, B17
WWAN (China)	2G: 900/1800MHz 3G: 900/1900/2000/2100MHz 4G: B1, B3, B5, B38, B39, B40, B41
WWAN (Others)	Depending on the country's ISP
Bluetooth	Bluetooth 4.0, BLE
GPS
GNSS	GPS/AGPS, GLONASS, BeiDou; internal antenna
GPS (Optional)
GNSS（Optional）

Fingerprint
Functions
Memory
Sensor
Image Size (pixel)
Sensing Area (mm)
Resolution (dpi)
Standard
Formats
Certifications
Format Extraction
Security
Fake Finger Detection
Module
Sensor Type
Pixel Array
Note

UHF RFID
Frequency	865MHz-868MHz / 920-925MHz / 902-928MHz
Protocol	EPC C1 GEN2 / ISO18000-6C
Antenna	Circular polarization (1dBi)
Power	0.4W (26dBm, +16dBm to +26dBm adjustable)
R/W ranges	1m
Reading rates (circular polarization)
Note	*Ranges and rates depend on tags and environment
Note2

PSAM
Protocol
Slots
Note

InfraRed
Wavelength
Frequency
Range
Protocol
Note

Barcode Scanning
1D Linear Scanner	Zebra SE965 / Honeywell N4313
2D Imager Scanner	Zebra: SE4710 / SE4750 / SE4750MR; Honeywell: N6603
Scan engine
1D Symbologies	UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
2D Symbologies	PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.
Note	*This function is optional
Note2

LF RFID
Frequency
Protocol
Chips
Range
Note

Camera

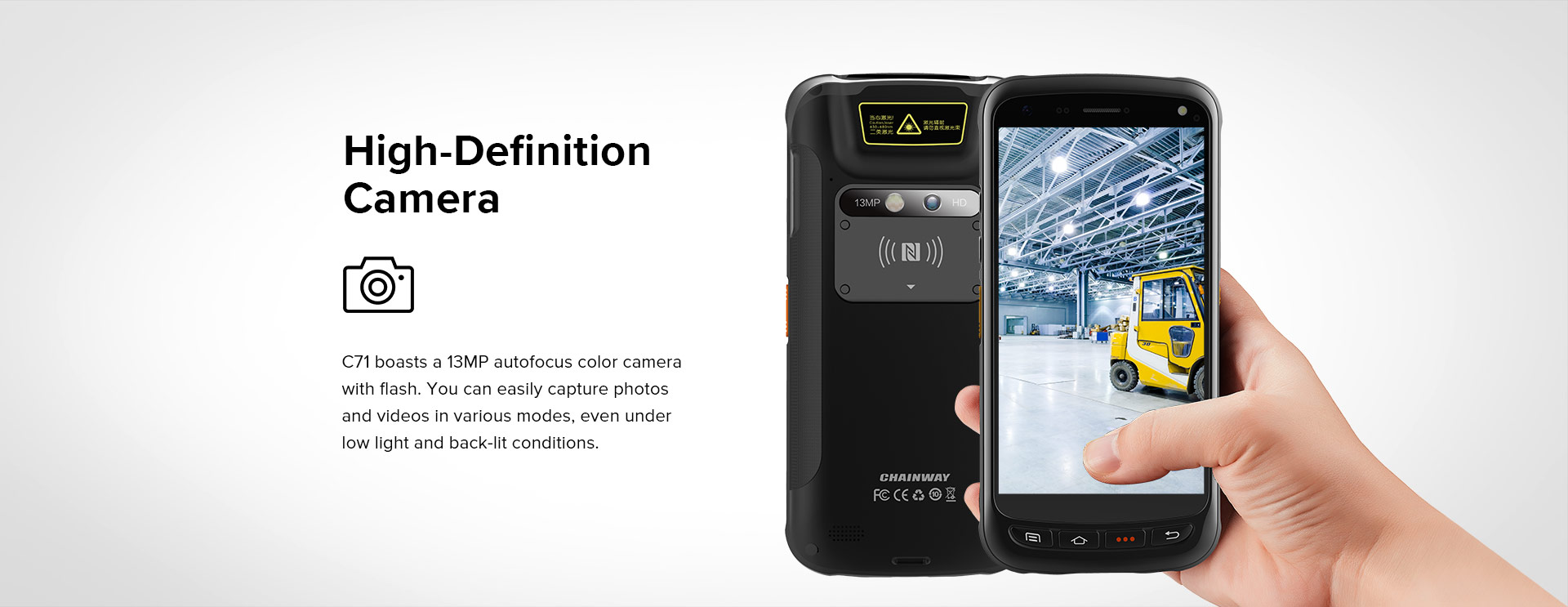

Camera	13MP autofocus rear camera with flash, optional 5MP front camera
Front Camera
Top Camera
External Camera (optional)
Note
Note2

Thermal Printer
Rate (mm/s)
Image Size (pixel)
Paper Width (mm)

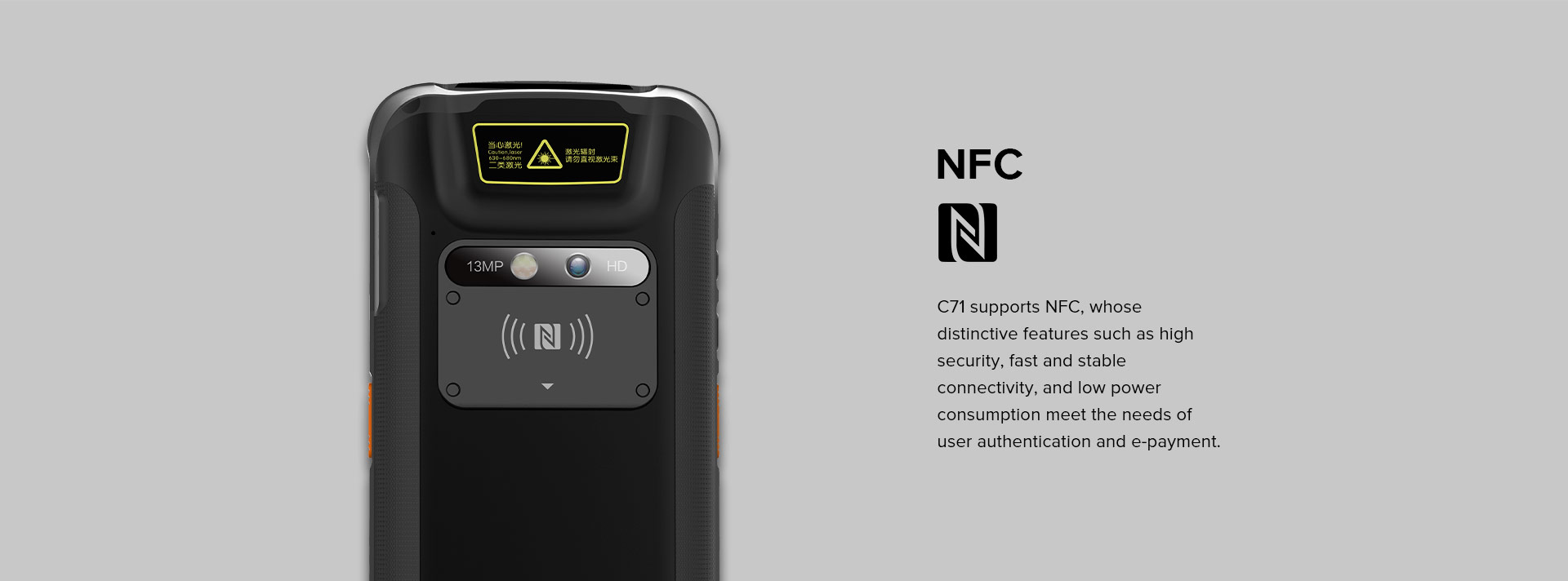

NFC
Frequency	13.56MHz
Protocol	ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
Chips	M1 card (S50, S70), CPU card, NFC tags, etc.
Range	2-4cm
Remark
Note
Note2

LF RFID (with external antenna)
Frequency
Protocol
Chips
Range
Note

HF RFID
HF
Frequency
Protocol
Chips
Range
Note
Note2

Iris Recognition
Rate	<150ms
Range	20-40cm
FAR	1/10000000
Note	*Front iris only
Note2	*This function is optional

HID iCLASS SE
Frequency
Chips
Protocol

OBD
Protocol

Reading Performance
Reading Rate
Reading Range

DOWNLOADS

Documents & Manuals
C71 UHF Data Sheet - EN - 2018-06-20 2017-11-01		PDF
Corporate Brochure 2018-04-04		PDF

Softwares

Certificates
C71-1.8m Drop Test Report 2017-09-05		PDF
C71-RoHS 2017-10-12		PDF
ISO9001 2017-07-10		PDF
ISO14001 2017-07-10		PDF
C71-CE 2017-11-13		PDF
C71-CCC 2017-11-28		PDF
C71-FCC 2017-12-22		ZIP

Android-based Handheld Computers

Mobile Computer

Handheld Computer

Mobile Computer

Optical Fingerprint

UHF RFID Reader

Infrared

Capacitive Fingerprint

UHF RFID Reader

Mobile Computer with Printer

UHF RFID Reader

Handheld Computer

Handheld Computer

UHF RFID Reader

Handheld Computer

UHF RFID Reader

Windows-based Handheld Computers

UHF RFID Reader

Handheld Computer

Vehicle-mounted Computers

Vehicle Computer

Industrial Tablet

Industrial Tablet

Barcode Scanners

1D Barcode Scanner

Optical Image Scanner

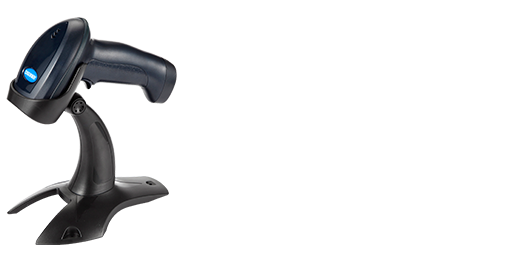

Cordless BT Scanner

UHF RFID Module

UHF RFID Module

UHF RFID Module

UHF RFID Module

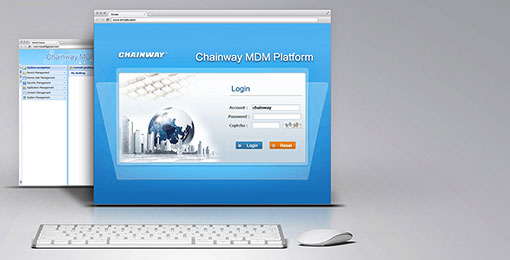

Mobile Device Management Platform
