Performance Parameter | |
Optical system | |
Light Source | |
Image Sensor | |
Image (Pixels) | |
Field of View | |
Decoding Rate | |
Decoding Capabilities | |
Roll / Pitch / Yaw | |
Scanning speed | |
Print Contrast | |
Angle | |
Resolution | |
Depth of Field | |
Printing Contrast | |
Prompting Mode | |
Interface | |
Trigger Mode | |
Setting Mode | |
Frequency | |
Communication Distance | |
Transmission Rate | |
Current | |
Capability of Battery |
Specification(USB IRIS Scanner) | |
Working Current | |
Start Current | |
Standby Current | |
Working Current | |
Resolution Ratio | |
FoV | |
Identification Range | |
Registration Range | |
Registration Time | |
Identification Time | |
Infared Wavelength | |
FAR | |
FRR | |
Frame Rate | |
Operating Temp. | |
Storage Temp. | |
Power Supply & Data Interface | |
Operating System Requirements | |
SDK Fitting System |
Symbology Decode Capability | |
1-D | |
2-D | |
Decoding rate | |
Interfaces |
Development Board | |
Module |
Physical Characteristics | |
Dimensions | 164.2 x 78.8 x 17.5 mm / 6.46 x 3.10 x 0.69 in. (the thickest: 24.5mm/0.96in) |
Weight | <314 g / 11.08 oz. |
Display | 5.2'' IPS LTPS 1920 x 1080 |
Battery | |
Touch Panel | Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported |
Power | Main battery: Li-ion, rechargeable, 5000 mAh Standby: over 350 hours Continuous use: over 12 hours (depending on user environment) Charging time: 3-4 hours (with standard adaptor and USB cable) |
Speaker | |
Vibrator | |
Notification | Sound, LED indicator, vibrator |
Microphone | |
Expansion Slot | 1 slot for SIM card, 1 slot for SIM or TF card |
Buzzer | |
Interfaces | USB 2.0 Type-C, OTG, TypeC headphones supported |
Card slot | |
Cable | |
Audio | 2 microphones,1 for noise cancellation;1 speaker;receiver |
Input Mode | |
Keypad | 4 front keys, 1 power key, 2 scan keys, 1 multifunctional key |
Sensors | Light sensor, proximity sensor, gravity sensor |
Pupil Lamp | |
Indicator LED | |
Size of adapted phone | |
Product Material | |
Colour | |
Voltage and Current | |
Material | |
Input Voltage | |
Standby Current | |
AC Adapter | |
Sleep Current | |
Comm Interface | |
GPIO | |
Baud Rate | |
Cooling Mode | |
Work Current | |
Display Interface | |
Port | |
Charging Current | |
Charging Duration | |
Ethernet interface | |
Power Supply | |
Identification Lamp |
RFID Features | |
RF Chip | |
Air Interface Protocol | |
Working Frequency | |
Output Power | |
Output Power Flatness | |
Antenna Interface | |
Regions Supported | |
Receive Sensitivity | |
Tag RSSI | |
Antenna Detector | |
Ambient Temp Monitor | |
Working Mode |
Communication Interface | |
Connector | |
Host Communication |
Power Supply | |
Input Voltage | |
Power Consumption in RF Output Mode | |
Power Consumption in Standby Mode(EN high TTL level) | |
Power Consumption in Power Down Mode(EN low TTL level) |
Communication | |
Ethernet interface | |
WLAN | IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, internal antenna |
WWAN | Android 8.1: WWAN (China): 2G: 900/1800MHz 3G: WCDMA: B1,B8        CDMA2000 EVDO: BC0        TD-SCDMA: B34,B39 4G: B1,B3,B5,B8,B34,B38,B39,B40,B41 WWAN (Europe): 2G: 850/900/1800/1900 MHz 3G: B1/B2/B4/B5/B8 4G: B1/B3/B5/B7/B8/B20/B40 WWAN(America): 2G: 850/900/1800/1900 MHz 3G: B1/B2/B4/B5/B8 4G: B2/B4/B7/B12/B17/B25/B66 Android 11: 2G: GSM850/GSM900/DCS1800/PCS1900 3G: WCDMA:B1/B2/B4/B5/B8        CDMA2000 EVDO: BC0        TD-SCDMA:A/F 4G:B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28A        B28B/B34/B38/B39/B40/B41 |
WWAN (Europe, Asia) | |
WWAN (Europe) | |
WWAN (America) | |
WWAN (Quad-core) | |
WWAN (Octa-core) | |
WWAN (China) | |
WWAN (Others) | Depending on the country's ISP |
Bluetooth | Android 8.1: Bluetooth v2.1+EDR,3.0+HS,v4.1+HS Android 11: Bluetooth 5.0 |
WWAN(Overseas) | |
Vo-LTE | |
GPS | |

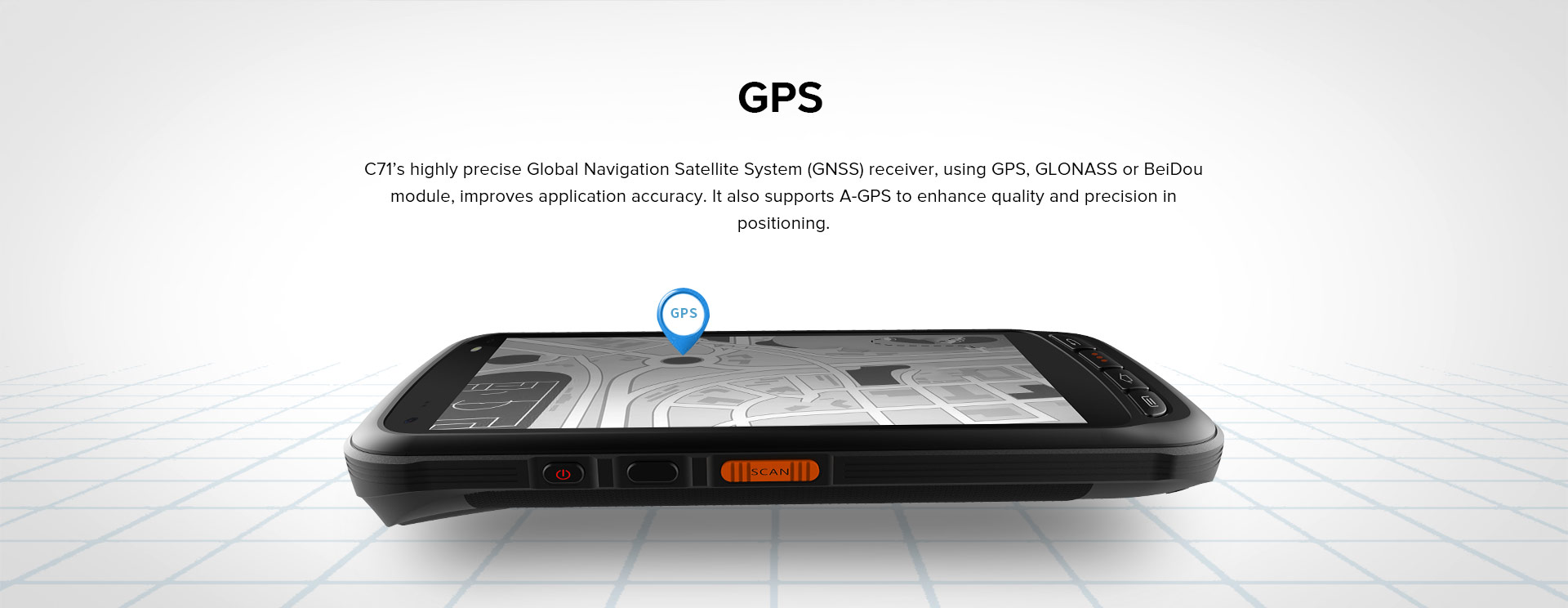

GNSS | GPS/AGPS, GLONASS, BeiDou; internal antenna |
GPS (Optional) | |
USB Type C | |
Note |
Power | |
Input Voltage | |
UHF | |
HF | |
Standby |
Developing Environment | |
Operating System | Android 8.1; GMS, FOTA, Soti MobiControl, SafeUEM supported Android 11; GMS, FOTA, Soti MobiControl, SafeUEM supported. Committed support for a future upgrade to Android 12, 13, and Android 14 pending feasibility |
SDK | Chainway Software Development Kit (capacitive fingerprint based on crossmatch SDK) |
Language | Java |
Tool | Eclipse / Android Studio |
Security |
Performance | |
CPU(1) | |
CPU | Cortex-A53 2.5 / 2.3 GHz Octa-core |
RAM+ROM(1) | |
Option 1 | |
Option 2 | |
CPU(2) | |
RAM+ROM | 3GB + 32GB 4GB + 64GB (optional) |
High-level Configuration | |
MCU | |
Low-level Configuration | |
RAM+ROM(2) | |
RAM+ROM | |
Expansion | Supports up to 128 GB Micro SD card |
Storage |
User Environment | |
Input Voltage | |
Operating Temp. | -4 °F to 122 °F / -20 °C to 50 °C |
Storage Temp. | -40 °F to 158 °F / -40 °C to 70 °C |
Humidity | 5% RH - 95% RH non condensing |
Luminance of environment | |
Drop Specification | Multiple 1.8 m / 5.9 ft. drops (at least 20 times) to the concrete across the operating temperature range |
Tumble Specification | 1000 x 0.5 m / 1.64 ft. falls at room temperature |
Ambient Light Immunity | |

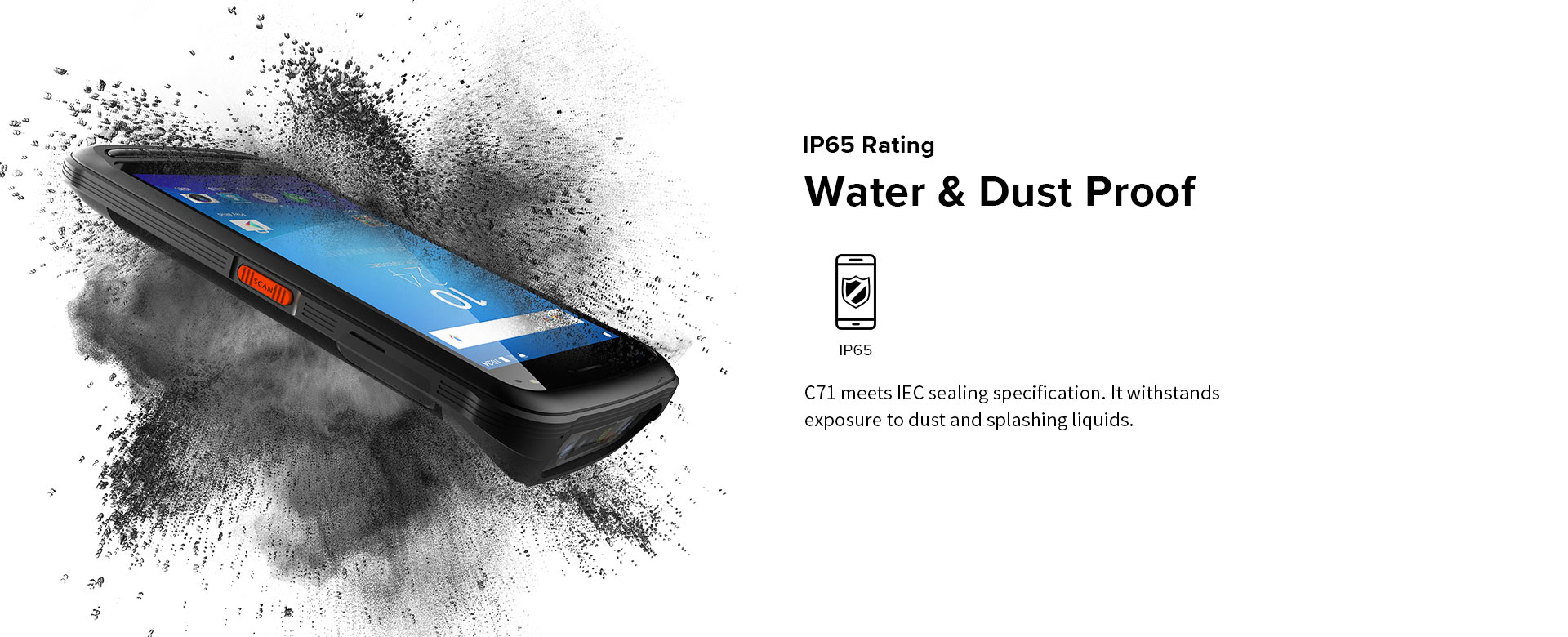

Sealing | IP65 / IP67 per IEC sealing specifications |
ESD | ±15 KV air discharge, ±6 KV conductive discharge |
Communication(Quad-core) | |
WLAN | |
WWAN | |
WWAN (China) | |
WWAN (Europe) | |
WWAN (America) | |
WWAN (Others) | |
Bluetooth | |
GNSS | |
Note |
Communication Android 8.1 | |
WLAN | |
WWAN (China) | |
WWAN (Europe) | |
WWAN(America) | |
WWAN (Others) | |
Bluetooth | |
GNSS |
Communication Android 11.0 | |
WLAN | |
WWAN | |
Bluetooth | |
GNSS |
Communication(Octa-core) | |
WLAN | |
WWAN (China) | |
WWAN | |
WWAN(Europe) | |
WWAN(Overseas) | |
WWAN (America) | |
WWAN (Others) | |
Bluetooth | |
GNSS |
Barcode Scanning | |
2D Scanner | |
Scan engine(Quad-core) | |
Scan engine(Octa-core) | |
1D Linear Scanner | Zebra: SE965; Honeywell: N4313 |
Scan engine | |
1D Linear Scanner(Quad-core) | |
2D Imager Scanner(Quad-core) | |
2D Imager Scanner(Octa-core) | |
2D Imager Scanner | Zebra: SE4710 / SE4750 / SE4750MR; Honeywell: N6603 |
1D Symbologies | UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc. |
2D Symbologies | PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc. |
Note | *This function is optional |
Note2 |
UHF RFID | |
Engine | |
Frequency | |
Protocol | |
Antenna | |
Power | |
Fastest Read Rate (circular polarization) | |
Output Power | |
Output Power Precision | |
Output Power Flatness | |
Receive Sensitivity | |
RSSI | |
Ambient Temp Monitor | |
Fastest Read Rate | |
Antenna Detector | |
Antenna Port | |
Communication Mode | |
Read Range | |
R/W ranges | |
Note | |
Note2 |
UHF1 | |
Engine | |
Frequency | |
Protocol | |
Antenna | |
Power | |
R/W range | |
Fastest Read Rate | |
Communication Mode | |
Note |
UHF2 | |
Engine | |
Frequency | |
Protocol | |
Antenna | |
Power | |
R/W range | |
Fastest Read Rate | |
Communication Mode | |
Note |
UHF3 | |
Engine | |
Frequency | |
Protocol | |
Antenna | |
Power | |
R/W range | |
Note |
InfraRed | |
Wavelength | |
Frequency | |
Range | |
Protocol | |
Note |
Volume Measurement | |
Sensor | |
Range | |
Measurement Error | |
Module | |
Field of View Angle | |
Measurement Speed | |
Measured Distance | |
Note |

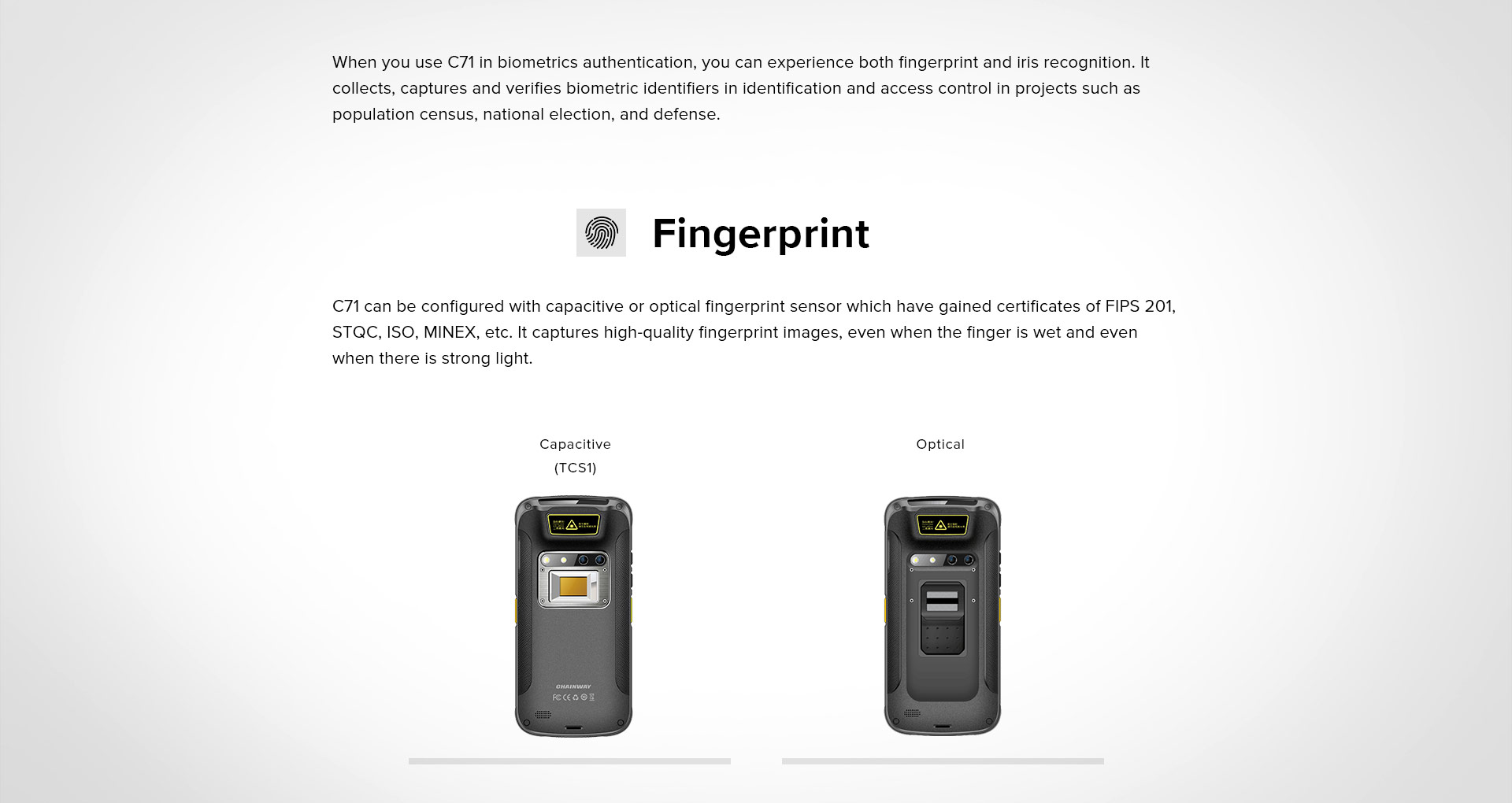

Fingerprint | |
Sensor | |
Sensing Area (mm) | |
Resolution (dpi) | |
Certifications | |
Format Extraction | |
Fake Finger Detection | |
Security | |
Note |
Fingerprint 1 | |
Sensor | TCS1/TCS2 Capacitive |
Sensing Area (mm) | 12.8 × 18.0 ; 10.4 x 14.4 |
Resolution (dpi) | 508 dpi, 8-bit greylevel |
Certifications | FIPS 201, STQC |
Format Extraction | ISO 19794, WSQ, ANSI 378, JPEG2000 |
Fake Finger Detection | Support by SDK |
Security | AES, DES key encryption of the host communication channel |
Note |
Fingerprint 2 | |
Sensor | Optical Morpho CBM-E3 |
Sensing Area (mm) | 14 x 22 |
Resolution (dpi) | 500 dpi, 256 greylevel |
Certifications | FIPS PIV IQS / ISO 19794-4, MINEX & FIPS 201 compliant, STQC |
Format Extraction | ISO 19794-2/4, WSQ, ANSI 378, etc |
Fake Finger Detection | Latex, GeLatin, Plasticine, Kapton, Transparent Film, Silicone, Rubber, Play-doh, Graphite Or Paper |
Security | FIPS 140-2 level 2, multiple security methods available, including image and templates encryption, template signature, secure tunneling, etc. |
Note |
LF RFID | |
Frequency | |
Protocol | |
Chips | |
Range | |
Note |
Camera | |
Camera | |
Front Camera | 5 MP camera |
Top Camera | |
External Camera (optional) | |
Rear Camera | 13 MP autofocus rear camera with flash |
Internal Camera (Optional) | |
Note | *Front Camera function is optional |
Note2 |
Thermal Printer | |
Rate | |
Image Size (pixel) | |
Paper Width | |
Paper Diameter | |
Paper Length |
NFC | |
Frequency | 13.56 MHz |
Protocol | ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc. |
Chips | M1 card (S50, S70), CPU card, NFC tags, etc. |
Range | 2-4 cm |
Remark | |
Note | |
Note2 |
LF RFID (with external antenna) | |
Frequency | |
Protocol | |
Chips | |
Range | |
Note |
PSAM | |
Protocol | |
Slots | |
Note |
HF RFID | |
HF | |
Frequency | |
Protocol | |
Chips | |
Range | |
Note | |
Note2 |

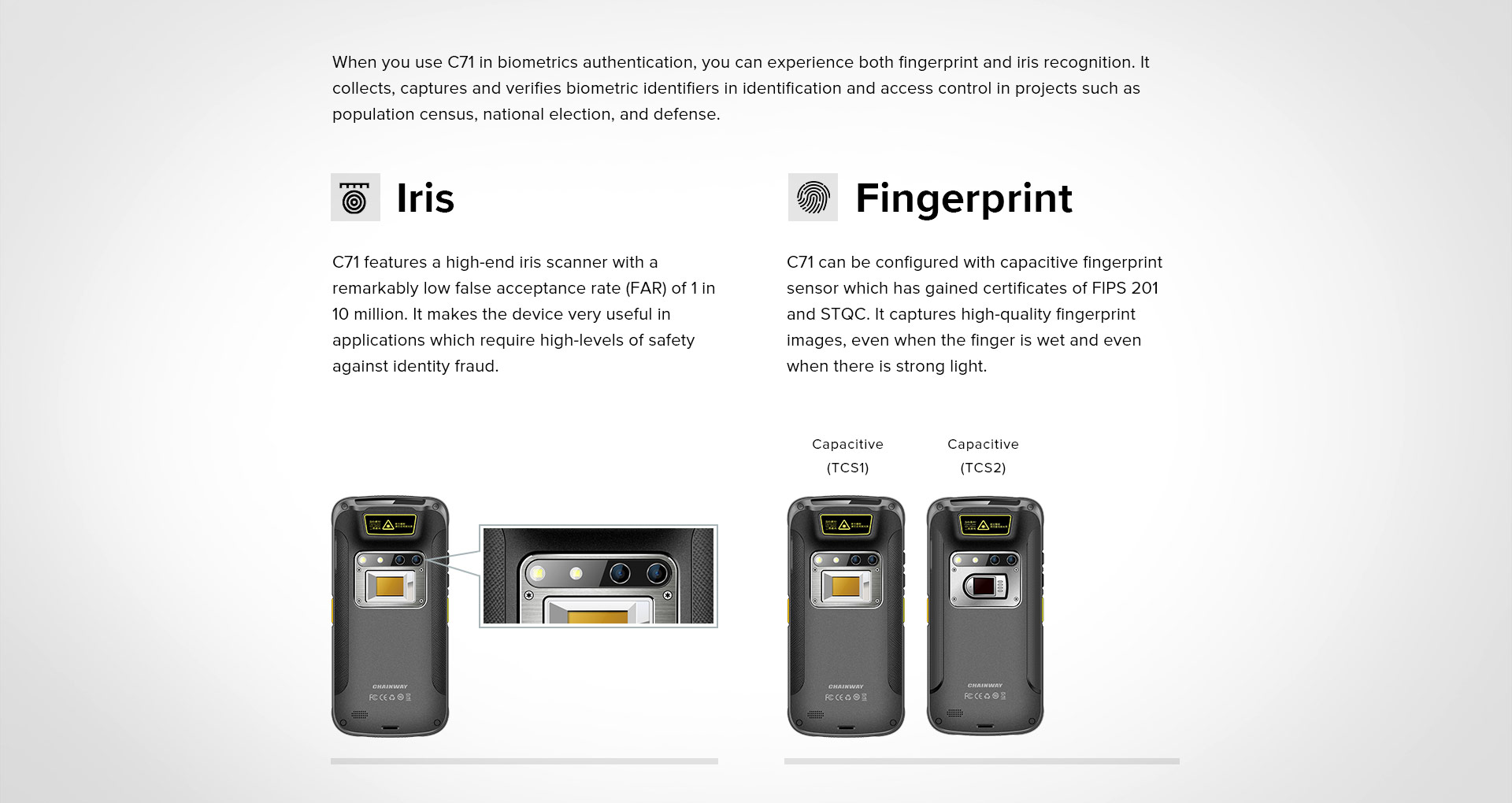

Iris Recognition | |
Rate | < 150 ms |
Range | 20-40 cm |
FAR | 1/10000000 |
Note | Protocol:ISO/IEC 19794-6,GB/T 20979-2007 |
Note2 | *This function is optional *Iris is alternative to front camera |
Temperature Collection | |
Measure Position | |
Measure Method | |
Measure Distance | |
Measure Range | |
Measure Accuracy | |
Measure Duration | |
Spectral Range | |
Resolution | |
Note |
HID iCLASS SE | |
Frequency | |
Chips | |
Protocol |
OBD | |
Protocol |
Reading Performance | |
Reading Rate | |
Reading Range |
Optional accessories | |
Accessories | |
Note |
Certifications | |
Certifications |
