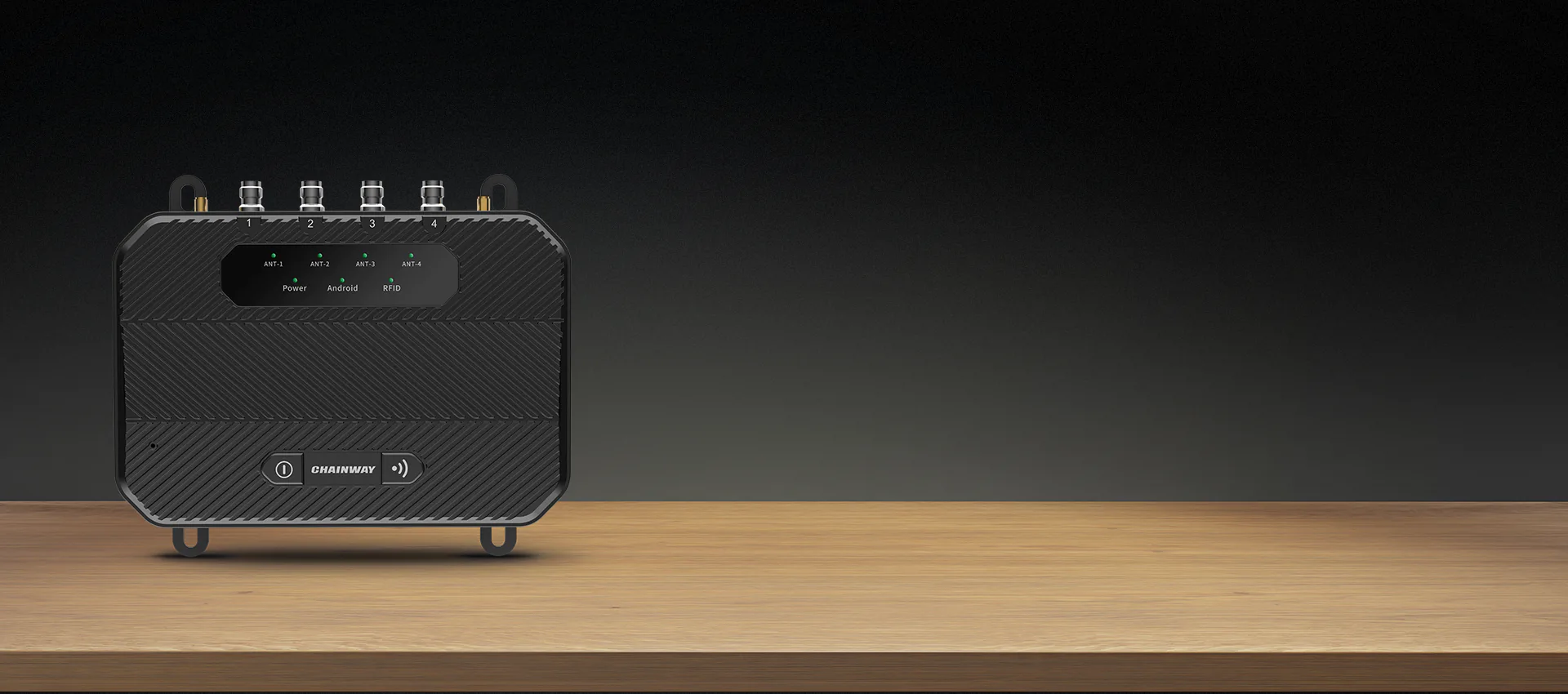

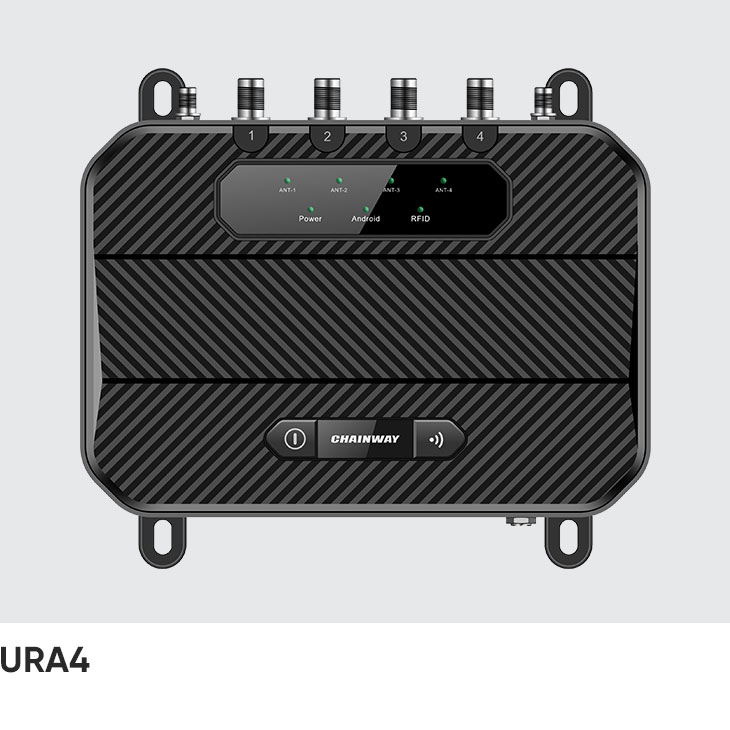

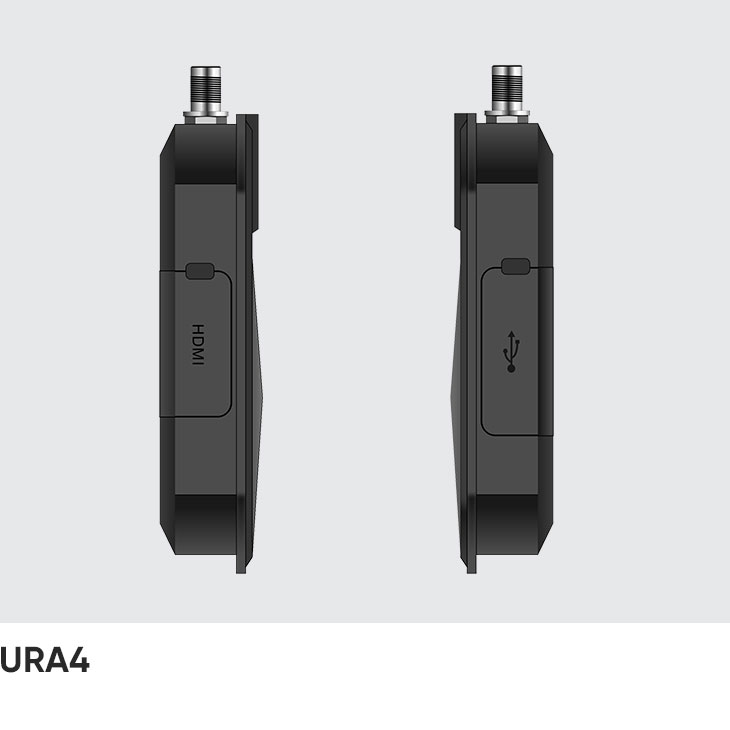

Fixed RFID Reader (Android 13)
Fixed RFID Reader (Android 13)
Fixed RFID Reader (Android 13)
Fixed RFID Reader (Android 13)

Excellent RFID Capability with Suitable Android OS & Various Interface

Features
Android 13 Android 13 Diverse Interface and Power Options Diverse Interface and Power Options
Flexible Deployment Flexible Deployment Durable Aluminum Alloy Body Durable Aluminum Alloy Body
Functions
Self-Developed Module Based on Impinj E Series chips Self-Developed Module Based on Impinj E Series chips Impinj Gen2X for Enhanced UHF Performance Impinj Gen2X for Enhanced UHF Performance
1300+ tags/sec Read Rate 1300+ tags/sec Read Rate

SPECIFICATIONS

Performance Parameter
Optical system
Light Source
Image Sensor
Image (Pixels)
Field of View
Decoding Rate
Decoding Capabilities
Roll / Pitch / Yaw
Scanning speed
Print Contrast
Angle
Resolution
Depth of Field
Printing Contrast
Prompting Mode
Interface
Trigger Mode
Setting Mode
Frequency
Communication Distance
Transmission Rate
Current
Capability of Battery
Specification(USB IRIS Scanner)
Working Current
Start Current
Standby Current
Working Current
Resolution Ratio
FoV
Identification Range
Registration Range
Registration Time
Identification Time
Infared Wavelength
FAR
FRR
Frame Rate
Operating Temp.
Storage Temp.
Power Supply & Data Interface
Operating System Requirements
SDK Fitting System
Printing
Printing Method
Resolution
Max. Printing Speed
Max. Printing Width
Max. Printing Length
Media
RFID Tag
Types
Width
Thickness
Height
Label Roll Diameter
Core Diameter
Label Length
Label Roll Capacity
Ribbon
Types
Width
Length
Core Diameter
Capacity
Symbology Decode Capability
1-D
2-D
Decoding rate
Interfaces
Development Board
Module
Physical Characteristics
Dimensions 214 (L) x 148 (W) x 30 (H) mm
Weight 1000g / 35.27 oz. (without antenna)
Display
Battery
Touch Panel
Power DC (12V), POE (802.3af 13W), POE+ (802.3at 25.5W)

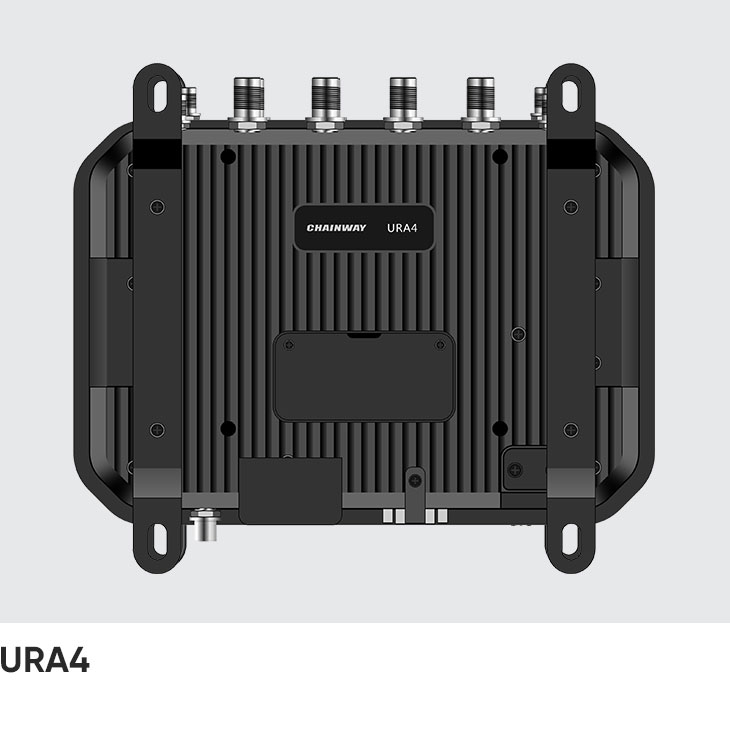

Material Aluminium alloy
Speaker
Vibrator
Notification
Microphone
Buzzer
Expansion Slot 1 slot for Nano SIM card, 1 slot for TF card
Interfaces
Card slot
Cable
Audio
Input Mode
Keypad
Sensors
Button
Pupil Lamp
Indicator LED
Size of adapted phone
Product Material
Colour
Voltage and Current
Input Voltage DC 10V – 24V
Standby Current < 30mA
AC Adapter
Sleep Current

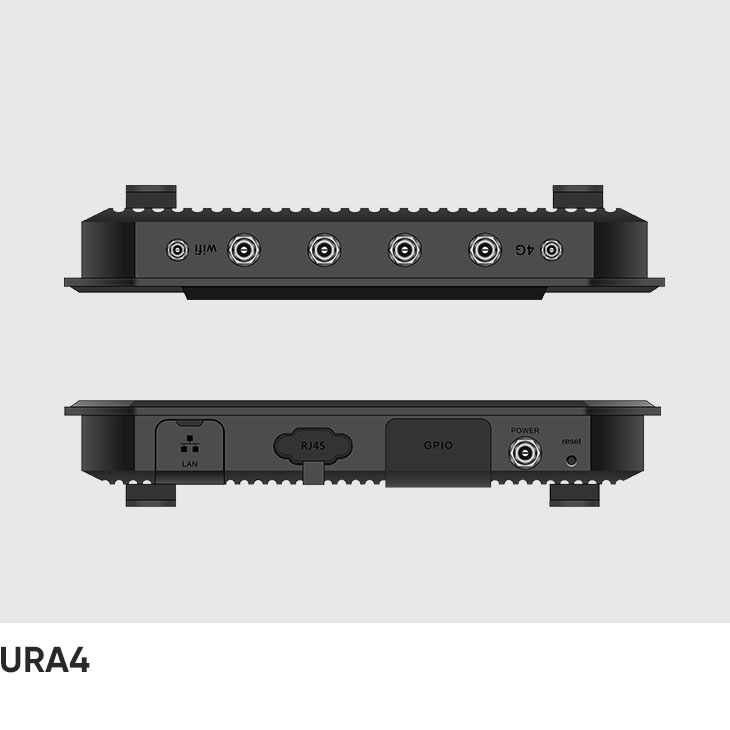

Comm Interface 1*RS-232 , 1*RJ45, 3*USB2.0 Type A, 1*Type C, USB Host
GPIO 4 Input Optical-couplings, 4 Output Optical-couplings, isolation
Baud Rate 115200 bps
Cooling Mode Air cooling
Work Current 1300mA +/-5% @ DC 12V Input
Display Interface HDMI Type A, support 720P
Port
Charging Current
Charging Duration
Ethernet interface
Power Supply
Identification Lamp
Ethernet Interface
RFID Features
RF Chip
Impinj Gen2X
Air Interface Protocol
Working Frequency
Output Power
Output Power Flatness
Antenna Interface
Regions Supported
Receive Sensitivity
Tag RSSI
Antenna Detector
Ambient Temp Monitor
Working Mode
Communication Interface
Connector
Host Communication
Power Supply
Input Voltage
Power Consumption in RF Output Mode
Power Consumption in Standby Mode（EN high TTL level）
Power Consumption in Power Down Mode（EN low TTL level）
Communication
Ethernet interface 10/100 Base-T Ethernet (RJ45)
WLAN Support 802.11 a/b/g/n/ac/d/e/h/i/k/r/v,2.4G/5G dualband, IPV4,IPV6;
Fast roaming: PMKID caching, 802.11r, OKC;
Operating Channels: 2.4G(channel 1~13), 5G(channel 36,40,44,48,52,56,60,64,100,104,108,112,1 16,120,124,128,132,136,140,149,153,157,161,165), Depends on local regulations;
Security and Encryption: WEP,WPA/WPA2-PSK(TKIP and AES),WAPI-PSK—EAP-TTLS,EAP-TLS, PEAPMSCHAPv2, PEAP-LTS,PEAP-GTC,etc.
WWAN
WWAN (Europe, Asia) 2G: GSM/EDGE (MHz): 850/900/1800/1900
3G: WCDMA: B1/B2/B4/B5/B8
4G: TDD-LTE: B38/B40/B41
       FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B20/B28
WWAN (Europe)
WWAN (America) 4G: TDD-LTE: B41
       FDD-LTE: B2/B4/B5/B7/B12/B13/B14/B17/B25/
       B26/B66/B71
WWAN (Quad-core)
WWAN (Octa-core)
WWAN (China)
WWAN (Others)
Bluetooth 5.1
WWAN(Overseas)
Vo-LTE
GPS
GNSS
GPS (Optional)
USB Type C
Note
Power
Input Voltage
UHF
HF
Standby
Developing Environment
Operating System Android 13
SDK Chainway Software Development Kit
Language Java
Tool Eclipse/Android Studio
Security
Performance
CPU（1）
CPU Octa-core 2.0 GHz
RAM+ROM（1）
Option 1
Option 2
CPU（2）
RAM+ROM 3GB + 32GB
High-level Configuration
MCU
Low-level Configuration
RAM+ROM（2）
RAM+ROM
Storage
RAM
Flash
Expansion
User Environment
Input Voltage
Operating Temp. -25 °C to 55 °C
Storage Temp. -40 °C to 85 °C
Humidity 5% - 95%
Luminance of environment
Drop Specification
Tumble Specification
Ambient Light Immunity
Sealing IP64
ESD
Note
Communication(Quad-core)
WLAN
WWAN
WWAN (China)
WWAN (Europe)
WWAN (America)
WWAN (Others)
Bluetooth
GNSS
Note
Communication Android 8.1
WLAN
WWAN (China)
WWAN (Europe)
WWAN(America)
WWAN (Others)
Bluetooth
GNSS
Communication Android 11.0
WLAN
WWAN
Bluetooth
GNSS
Communication(Octa-core)
WLAN
WWAN (China)
WWAN
WWAN(Europe)
WWAN(Overseas)
WWAN (America)
WWAN (Others)
Bluetooth
GNSS
Barcode Scanning
2D Scanner
Scan engine(Quad-core)
Scan engine(Octa-core)
1D Linear Scanner
Scan engine
1D Linear Scanner（Quad-core）
2D Imager Scanner(Quad-core)
2D Imager Scanner(Octa-core)
2D Imager Scanner
1D Symbologies
2D Symbologies
Min.Resolution
Note
Note2
UHF RFID
Engine Based on Impinj E Series chips
Frequency 865-868 MHz / 920-925 MHz / 902-928 MHz
Impinj Gen2X Supported
Protocol EPC global UHF Class 1 Gen 2 / ISO 18000-6C
Antenna Supporting a variety of antennas, such as 6dBic, 9dBic
Power
Fastest Read Rate (circular polarization)
Output Power 1W (30dBm, support +5~+30dBm adjustable, POE/DC power)
2W Optional (33dBm, support +10~+33dBm adjustable, POE+/DC power, for Latin America, etc.)
Output Power Precision +/- 1dB
Output Power Flatness +/- 0.2dB
Receive Sensitivity < -84dBm
RSSI Supported
Ambient Temp Monitor Supported
Fastest Read Rate 1300+ tags/sec
Antenna Detector Supported
Antenna Port 4 channel 50Ω TNC port
Communication Mode
Multi-tag Inventory
Max Read Range
Read Range
Note
Note2
UHF1
Engine
Frequency
Impinj Gen2X
Protocol
Antenna
Power
Max Read Range
Fastest Read Rate
Communication Mode
Note
UHF2
Engine
Frequency
Impinj Gen2X
Protocol
Antenna
Power
Max Read Range
Fastest Read Rate
Communication Mode
Note
UHF3
Engine
Frequency
Protocol
Antenna
Impinj Gen2X
Power
Max Read Range
Note
InfraRed
Wavelength
Frequency
Range
Protocol
Note
Volume Measurement
Sensor
Range
Measurement Error
Module
Field of View Angle
Measurement Speed
Measured Distance
Note
Fingerprint Recognition
Sensor
Fingerprint
Sensing Area (mm)
Resolution (dpi)
Certifications
Format Extraction
Fake Finger Detection
Security
Note
Fingerprint 1
Sensor
Sensing Area (mm)
Resolution (dpi)
Certifications
Format Extraction
Fake Finger Detection
Security
Note
Fingerprint 2
Sensor
Sensing Area (mm)
Resolution (dpi)
Certifications
Format Extraction
Fake Finger Detection
Security
Note
Fingerprint 3
Sensor
Sensing Area (mm)
Resolution (dpi)
Certifications
Format Extraction
Fake Finger Detection
Security
Note
Antenna 1
Frequency
Polarization Mode
Gain
Horizontal Angle
Vertical Angle
VSWR
FBR
Characteristic Impedance
Maximum Input Power
Lightning Protection
Antenna Port
LF RFID
Frequency
Protocol
Chips
Range
Note
Antenna 2
Polarization Mode
Frequency
Gain
Horizontal Angle
Vertical Angle
VSWR
FBR
Characteristic Impedance
Maximum Input Power
Lightning Protection
Antenna Port
Camera
Camera
Front Camera
Top Camera
External Camera (optional)
Rear Camera
Internal Camera (Optional)
Note
Note2
Thermal Printer
Rate
Image Size (pixel)
Paper Width
Paper Diameter
Paper Length
NFC
Frequency
Protocol
Chips
Range
Remark
Note
Note2
LF RFID (with external antenna)
Frequency
Protocol
Chips
Range
Note
PSAM
Protocol
Slots
Note
HF RFID
HF
Frequency
Protocol
Chips
Range
Note
Note2
Iris Recognition
Rate
Range
FAR
Note
Note2
Temperature Collection
Measure Position
Measure Method
Measure Distance
Measure Range
Measure Accuracy
Measure Duration
Spectral Range
Resolution
Note
HID iCLASS SE
Frequency
Chips
Protocol
OBD
Protocol
Reading Performance
Reading Rate
Reading Range
Optional Accessories
Accessories
Note
Certifications
Certifications
Other Specification (RFID Printer)
Emulation
Software
Resident Fonts
Download Fonts
Barcodes
Code Page
Graphics
Options & Accessory
Agency Approval
Other Specification (Printer)
Processor
Driver
Print Head Life
Internal Fonts
Barcodes
Rotation
Emulation
Factory Options
Dealer Options
Agency Approval
Specification (RFIDLinked)
Data Collection Suite
Printing/Encoding Suite
Data Management
Note
Electrical
Frequency Range
Polarization Type
Gain
3dB Beam-Width. H-Plan
3dB Beam-Width. E-Plan
VSWR
Front to back Ratio
Input Impedance
Max Input Power
Lightning Protection
Mechanical
Connector Type
Dimensions H*W*D (mm)
Weight
Radome Material
Radome color
Radiant board material
Operating Temperature
Sealing
Installation mode
Support Pole Diameter
Rated Wind Velocity

SUPPORT & DOWNLOADS

Documents & Manuals

URA4(A13) Data Sheet

2025-07-15
Softwares

Company Introduction

2025-07-15

Factory Introduction

2025-07-15

Subscribe to our newsletter

Sign up to be the first to learn about specials and news.

OUR PRODUCTS
Mobile Computers
Rugged Tablets
Handheld RFID Readers
Bluetooth RFID Readers
Fixed RFID Readers
RFID Modules
RFID Software
Biometric Readers
Printers
Vehicle Computers
Mobility Family
SUPPORT
Product Support
Technical Support
Repair and Service
FAQs
How-to Videos
CASES & PARTNERS
Case Studies
Global Resellers
Become a Partner
Cases Navigation
ABOUT US
About Chainway
News
Events
Contact Us
Industry News
English

Copyright © 2016-2025 Shenzhen Chainway Information Technology Co., Ltd. All Rights Reserved      Privacy Policy |Terms & Conditions |Use of Cookies | Support

Please help us to keep the environment clean by disposing the e-waste responsibly.
To know more about e-waste management, Click Here (http://indiaewasterecycler.com/ewastecrm/?link_id=5afe5c2c29a13)

Close
Cookies
We would like to use cookies on our website to improve your experience. By clicking “Accept All”, you consent to the use of all the cookies. Via 'Cookie Settings' you can manage your preferences. For more information about the cookies we use, click here to read our Cookie Policy
Cookie Settings Accept All
Close
Privacy Overview
This website uses cookies to improve your experience while you navigate through the website. Out of these, the cookies that are categorized as necessary are stored on your browser as they are essential for the working of basic functionalities of the website. We also use third-party cookies that help us analyze and understand how you use this website. These cookies will be stored in your browser only with your consent. You also have the option to opt-out of these cookies. However, blocking some types of cookies may impact your experience of the site
Accept All
Strictly Necessary Cookies
Always Active
These cookies are necessary for the website to function and camnot be swiched of in our systems.They are usully only set in response to actions made by youwhich amount to a requestfor services such as seting your prvacy preferences,logging in o iling in forms.You can set your browser to block or let you boutthese cookies, but some parts of the site will not then work. These cookies do not store any personally identfiable information.
Performance Cookies
These cookies are necessary for the website to function and camnot be swiched of in our systems.They are usully only set in response to actions made by youwhich amount to a requestfor services such as seting your prvacy preferences,logging in o iling in forms.You can set your browser to block or let you boutthese cookies, but some parts of the site will not then work. These cookies do not store any personally identfiable information.
Social Media Cookies
These cookies are set by a range of social media services that we have added to the site to enable you to share our content with your friends and networks. They are capable of tracking your browser across other sites and building up a profile of your interests. This may impact the content and messages you see on other websites you visit. If you do not allow these cookies you may not be able to use or see these sharing tools.
Functional Cookies
These cookies enable the website to provide enhanced functionality and personalisation. They may be set by us or by third party providers whose services we have added to our pages. If you do not allow these cookies then some or all of these services may not function properly.
Targeting Cookies
These cookies may be set through our site by our advertising partners. They may be used by those companies to build a profile of your interests and show you relevant adverts on other sites. They do not store directly personal information, but are based on uniquely identifying your browser and internet device. If you do not allow these cookies, you will experience less targeted advertising.
Confirm My Choices
