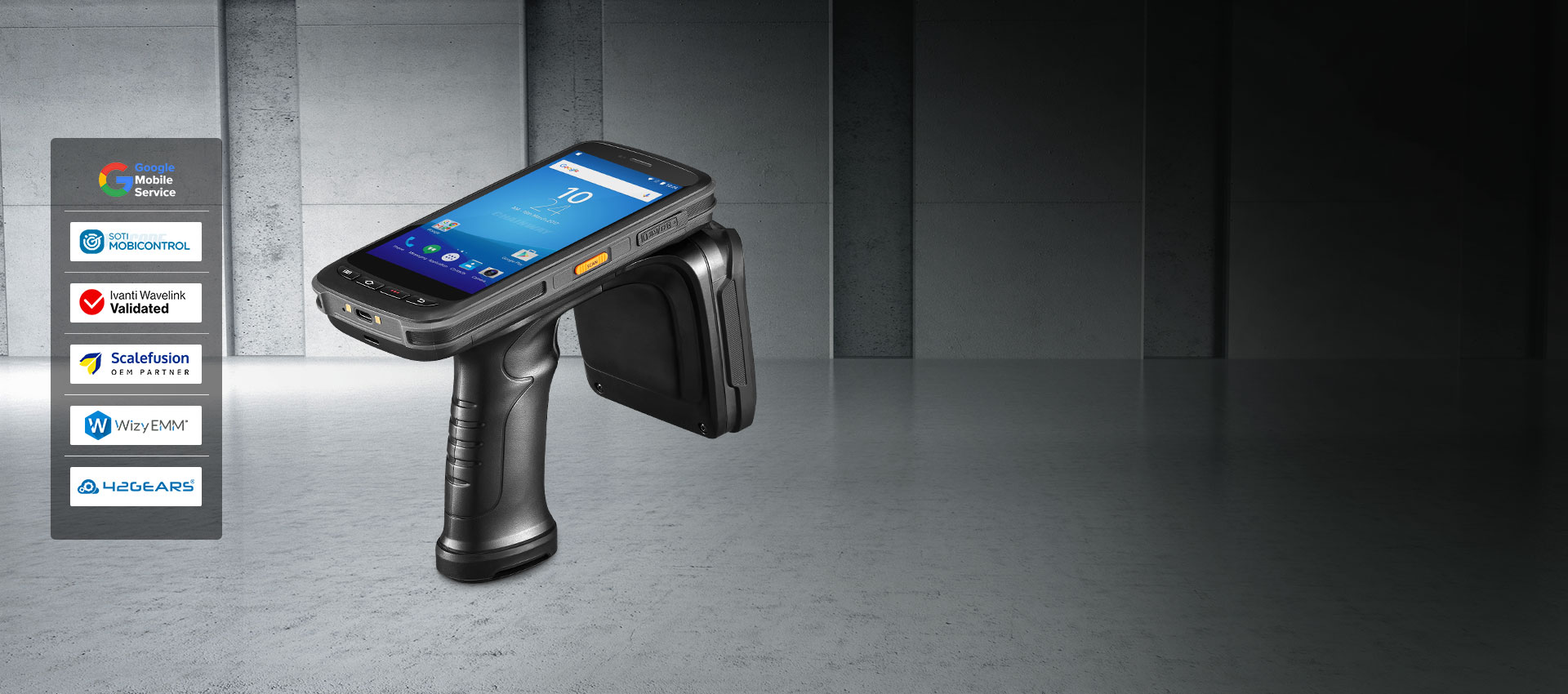

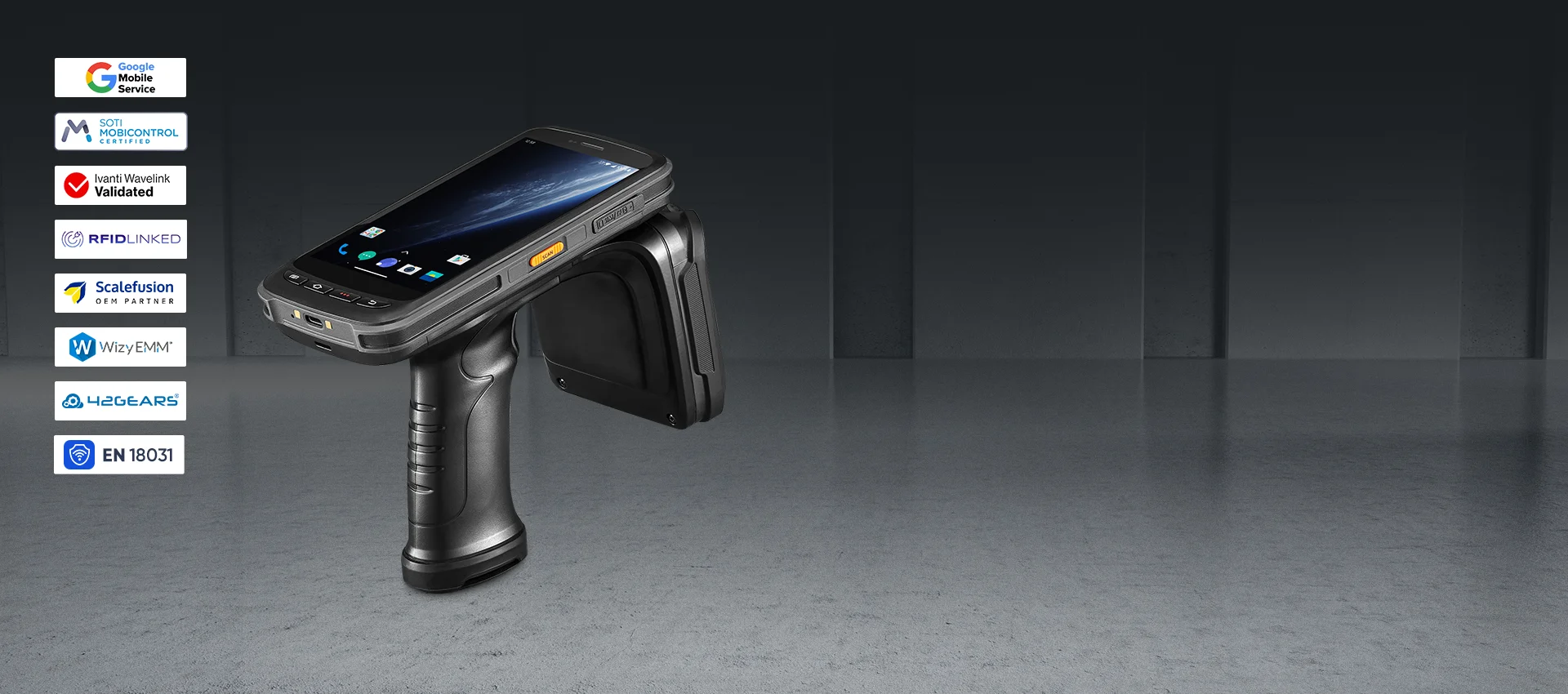

Deliver Distant UHF Fulfillment

Features
Android GMS Certified 4G/Dual-band WIFI
5.2'' IPS 1080P Screen 8000mAh Powerful Battery
IP65 Sealing 1.5m Drop Proof
Functions
Industry-leading Scan Engine UHF RFID
NFC Iris Scanning
13MP Autofocus Camera GPS/BDS

SPECIFICATIONS

Performance Parameter
Optical system
Light Source
Image Sensor
Image (Pixels)
Field of View
Decoding Rate
Decoding Capabilities
Roll / Pitch / Yaw
Scanning speed
Print Contrast
Angle
Resolution
Depth of Field
Printing Contrast
Prompting Mode
Interface
Trigger Mode
Setting Mode
Frequency
Communication Distance
Transmission Rate
Current
Capability of Battery
Specification(USB IRIS Scanner)
Working Current
Start Current
Standby Current
Working Current
Resolution Ratio
FoV
Identification Range
Registration Range
Registration Time
Identification Time
Infared Wavelength
FAR
FRR
Frame Rate
Operating Temp.
Storage Temp.
Power Supply & Data Interface
Operating System Requirements
SDK Fitting System
Symbology Decode Capability
1-D
2-D
Decoding rate
Interfaces
Development Board
Module
Physical Characteristics
Dimensions 164.2 x 80.0 x 24.3mm / 6.46 x 3.15 x 0.96in
Weight 654g / 23.07oz
Display 5.2'' IPS FHD 1920x1080
Battery
Touch Panel Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported
Power Main battery: Li-ion, rechargeable, 8000mAh
Standby: over 500 hours
Continuous use: over 12 hours (depending on user environment)
Charging time: 3-4 hours (with standard adaptor and USB cable)
Speaker
Vibrator
Microphone
Expansion Slot 1 slot for SIM card, 1 slot for SIM or TF card
Buzzer
Interfaces USB 2.0 Type-C, OTG
Card slot
Audio Speaker, 2 microphones
Input Mode
Keypad 4 front keys, 1 power key, 2 scan keys, 1 multifunctional key
Sensors Gravity sensor, light sensor, proximity sensor
Pupil Lamp
Indicator LED
Size of adapted phone
Product Material
Colour
Voltage and Current
Material
Input Voltage
Standby Current
AC Adapter
Sleep Current
Comm Interface
GPIO
Baud Rate
Cooling Mode
Work Current
Display Interface
RFID Features
RF Chip
Air Interface Protocol
Working Frequency
Output Power
Output Power Flatness
Antenna Interface
Regions Supported
Receive Sensitivity
Tag RSSI
Antenna Detector
Ambient Temp Monitor
Working Mode
Communication Interface
Connector
Host Communication
Power Supply
Input Voltage
Power Consumption in RF Output Mode
Power Consumption in Standby Mode(EN high TTL level)
Power Consumption in Power Down Mode(EN low TTL level)
User Environment
Input Voltage
Operating Temp. 4°F to 122°F / -20°C to 50°C
Storage Temp. -40°F to 158°F / -40°C to 70°C
Humidity 5% RH - 95% RH non condensing
Luminance of environment
Drop Specification Multiple 1.5m/4.9ft drops (at least 20 times) to the concrete across the operating temperature range
Tumble Specification 1000 x 0.5m/1.64ft falls at room temperature
Ambient Light Immunity
Sealing Host IP65 per IEC sealing specifications
ESD ±15KV air discharge, ±6KV conductive discharge
Developing Environment
Operating System Android 6.0(Quad-core)/Android 8.1(Octa-core)
SDK Chainway Software Development Kit
Language Java
Tool Eclipse / Android Studio
Performance
CPU(1)
CPU Cortex-A53 Quad-core 1.45GHz/Cortex-A53 Octa-core 2.5GHz
RAM+ROM(1)
Option 1
Option 2
CPU(2)
RAM+ROM 2GB+16GB(Quad-core)/ 3GB+32GB(Octa-core)
High-level Configuration
MCU
Low-level Configuration
RAM+ROM(2)
RAM+ROM
Expansion Supports up to 128 GB Micro SD card
Storage
UHF1 (Optional, UHF Back Clip)
Engine
Frequency
Protocol
Antenna
Power
R/W range
Reading rate
Note
UHF2 (Optional, UHF Sled)
Engine
Frequency
Protocol
Antenna
Power
R/W range
Reading rate
Note
Communication(Quad-core)
WLAN IEEE802.11 a/b/g/n, 2.4G/5G dual-band, internal antenna
WWAN (China) 2G: 900/1800MHz
3G: 900/1900/2000/2100MHz
4G: B1, B3, B5, B38, B39, B40, B41
WWAN (Europe) 2G: 850/900/1800/1900MHz
3G: 850/900/1900/2100MHZ
4G: B1, B3, B5, B7, B8, B20, B40
WWAN (America) 2G: 850/900/1800/1900MHz
3G: 850/900/1700/1900MHZ
4G: B2, B4, B7, B12, B17
WWAN (Others) Depending on the country's ISP
Bluetooth Bluetooth 4.0, BLE
GNSS GPS/AGPS, GLONASS, BeiDou; internal antenna
Note C72 models being manufactured for Turkish Market, do not include Voice Call (Phone Call) function. WAN module included on those models only support DATA transfer.
Communication(Octa-core)
WLAN IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, internal antenna
WWAN (China) 2G: 900/1800MHz
3G: WCDMA: B1,B8
       CDMA2000 EVDO: BC0
       TD-SCDMA: B34,B39
4G: B1,B3,B5,B8,B34,B38,B39,B40,B41
WWAN(Europe) 2G: 850/900/1800/1900MHz
3G: B1,B2,B4,B5,B8
4G: B1,B3,B5,B7,B8,B20,B40
WWAN (America) 2G: 850/900/1800/1900MHz
3G: B1,B2,B4,B5,B8
4G: B2,B4,B7,B12,B17,B25,B66
WWAN (Others) Depending on the country's ISP
Bluetooth Bluetooth v2.1+EDR,3.0+HS,v4.1+HS
GNSS GPS/AGPS, GLONASS, BeiDou; internal antenna
Communication
WLAN
WWAN (Optional)
WWAN
WWAN (Europe, Asia)
WWAN (Europe)
WWAN (America)
WWAN (China)
WWAN (Others)
Bluetooth
GPS
GNSS
GPS (Optional)
GNSS(Optional)
Fingerprint
Functions
Memory
Sensor
Image Size (pixel)
Sensing Area (mm)
Resolution (dpi)
Standard
Formats
Certifications
Format Extraction
Security
Fake Finger Detection
Module
Sensor Type
Pixel Array
Note
PSAM
Protocol
Slots
Note

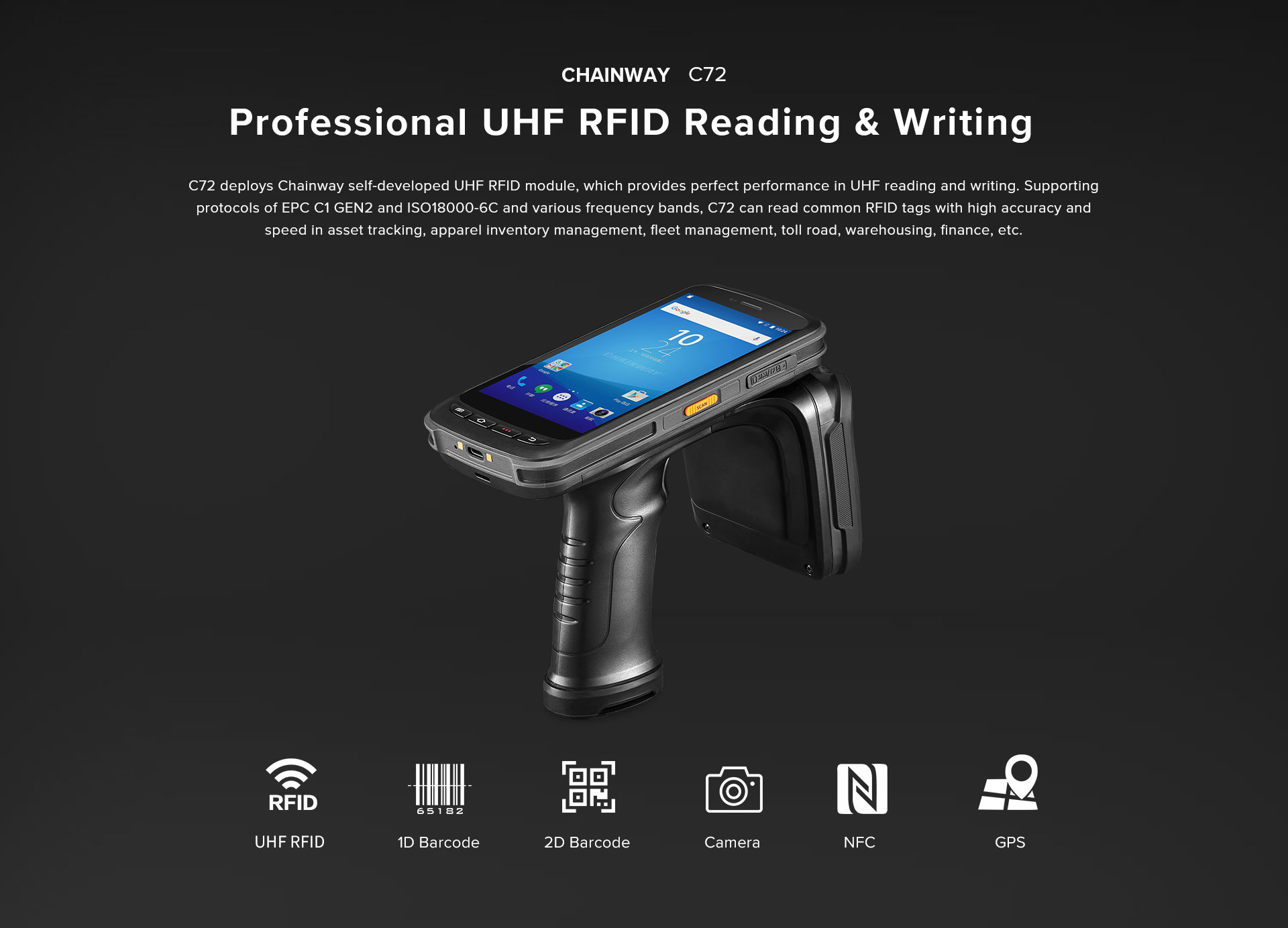

UHF RFID
Engine CM2000-1 module based on Impinj Indy R2000
Frequency 865MHz-868MHz / 920-925MHz / 902-928MHz
Protocol EPC C1 GEN2 / ISO18000-6C
Antenna Linear polarization(1.8dBi); circular polarization (4dBi)
Power 1W (30dBm, +5dBm to +30dBm adjustable)
R/W ranges >7m (linear polarization, outdoors); >21m (linear polarization, indoors)
>10m (circular polarization, outdoors); >25m (circular polarization, indoors)
Reading rates (circular polarization) >200 tags/s (circular polarization)
Output Power
Output Power Precision
Output Power Flatness
Receive Sensitivity
RSSI
Ambient Temp Monitor
Reading rate
Antenna Detector
Antenna Port
Note *Ranges and rates depend on tags and environment
Note2 *This function is optional
InfraRed
Wavelength
Frequency
Range
Protocol
Note
Barcode Scanning
2D Scanner
Scan engine(Quad-core)
Scan engine(Octa-core)
1D Linear Scanner
Scan engine
1D Linear Scanner(Quad-core) Zebra SE965 / Honeywell N4313
1D Symbologies UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
2D Imager Scanner(Quad-core) Zebra: SE4710 / SE4750 / SE4750MR; Honeywell: N6603
2D Imager Scanner(Octa-core) Zebra: SE4750/ SE4750MR
2D Imager Scanner
2D Symbologies PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.
Note *This function is optional
Note2
LF RFID
Frequency
Protocol
Chips
Range
Note
Camera
Camera 13MP Autofocus with flash
Front Camera
Top Camera
External Camera (optional)
Rear Camera
Note
Note2
Thermal Printer
Rate
Image Size (pixel)
Paper Width
Paper Diameter
Paper Length
NFC
Frequency 13.56MHz
Protocol
Chips
Range
Remark
Note *This function is optional
Note2
LF RFID (with external antenna)
Frequency
Protocol
Chips
Range
Note
HF RFID
HF
Frequency
Protocol
Chips
Range
Note
Note2
Iris Recognition
Rate <150ms
Range 20-40cm
FAR 1/10000000
Note Protocol:ISO/IEC 19794-6,GB/T 20979-2007
Note2 *This function is optional
HID iCLASS SE
Frequency
Chips
Protocol
OBD
Protocol
Reading Performance
Reading Rate
Reading Range
Optional accessories
Accessories
Note

DOWNLOADS

Documents & Manuals

C72 Data Sheet

2019-05-10
PDF

C7X Accessories Guide

2018-11-20
PDF

C72 User Manual

2018-11-20
PDF
Softwares

APPcenter

2018-12-20
ZIP

KeyboardEmulator

2018-12-20
ZIP
Certificates

ISO9001

2018-11-15
PDF

ISO14001

2018-11-15
PDF

ISO18001

2018-11-15
PDF

C72-CCC

2018-11-15
PDF

C72-CE

2018-11-15
PDF

C72-RoHS

2018-11-15
PDF

C72-FCC

2018-11-15
PDF

C72-IMEI TAC

2018-11-15
PDF

C72-IP65

2018-11-15
PDF

C72-1.5m Drop Test Report

2018-11-15
PDF

C72-Report for Safe Transport

2018-11-15
PDF

Accessories

Adapter(CN)

PWR-C72-5V2A-CN

Adapter(EU)

PWR-C72-5V2A-EU

Adapter(UK)

PWR-C72-5V2A-UK

Adapter(US)

PWR-C72-5V2A-US

USB Cable

DC-C72-TypeC

Lanyard

SG-C72-LYD-GY

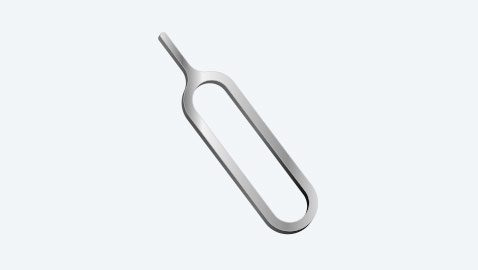

Sim Tray Ejector
