Large Screen Display, High Extensibility

Features
5.45” IPS Display Android 7.1 OS
Qualcomm Octa-core Processor 4G/Dual-band WIFI
4300mAh Removable Battery, Support QC3.0 IP65 Sealing
Functions
Zebra Scan Engine Support UHF Sled
NFC 13MP Autofocus Camera
GPS/BDS/GLONASS Support Pistol Grip with 5200mAh Battery

SPECIFICATIONS

Performance Parameter
Optical system
Light Source
Image Sensor
Image (Pixels)
Field of View
Decoding Rate
Decoding Capabilities
Roll / Pitch / Yaw
Scanning speed
Print Contrast
Angle
Resolution
Depth of Field
Printing Contrast
Prompting Mode
Interface
Trigger Mode
Setting Mode
Frequency
Communication Distance
Transmission Rate
Current
Capability of Battery
Specification(USB IRIS Scanner)
Working Current
Start Current
Standby Current
Working Current
Resolution Ratio
FoV
Identification Range
Registration Range
Registration Time
Identification Time
Infared Wavelength
FAR
FRR
Frame Rate
Operating Temp.
Storage Temp.
Power Supply & Data Interface
Operating System Requirements
SDK Fitting System
Symbology Decode Capability
1-D
2-D
Decoding rate
Interfaces
Development Board
Module
Physical Characteristics
Dimensions 160x76x15.5mm / 6.3*2.99*0.61in
Weight 287g/ 10.12oz( Host with battery)
Display 5.45-inch high definition full display(18:9), IPS LTPS 1440*720
Battery 4300mAh removable main battery, 5200mAh optional pistol battery, support QC3.0 and RTC
Standby: over 300 hours (only main battery)
Continuous use: over 12 hours (depending on user environment)
Charging time: 2.5hours (charge device by standard adaptor and USB cable)
Touch Panel Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported
Power
Speaker Support
Vibrator Support
Microphone 2 Microphones, 1 for noise reduction
Expansion Slot
Buzzer
Interfaces USB3.0, Type-C, OTG, extended thimble
Card slot 2 slot for SIM card, 1 slot for TF card
Audio
Input Mode
Keypad 1 power key, 2 scan keys, 2 volume keys, 1 PTT key
Sensors Distance sensor, light sensor, gravity sensor, vibration motor
Pupil Lamp
Indicator LED Power, charging, status indicator
Size of adapted phone
Product Material
Colour
Voltage and Current
Material
Input Voltage
Standby Current
AC Adapter
Sleep Current
Comm Interface
GPIO
Baud Rate
Cooling Mode
Work Current
Display Interface
RFID Features
RF Chip
Air Interface Protocol
Working Frequency
Output Power
Output Power Flatness
Antenna Interface
Regions Supported
Receive Sensitivity
Tag RSSI
Antenna Detector
Ambient Temp Monitor
Working Mode
Communication Interface
Connector
Host Communication
Power Supply
Input Voltage
Power Consumption in RF Output Mode
Power Consumption in Standby Mode(EN high TTL level)
Power Consumption in Power Down Mode(EN low TTL level)
User Environment
Input Voltage
Operating Temp. -20℃~+50℃
Storage Temp. -40℃~+70℃
Humidity 5%RH - 95%RH non condensing
Luminance of environment
Drop Specification Multiple 1.5m/4.9ft drops (at least 20 times) to the concrete across the operating temperature range;
Multiple 2.4m/7.87ft drops (at least 20 times) to the concrete after installed rubber bumper
Tumble Specification 1000 x 0.5m/1.6ft falls at room temperature
Ambient Light Immunity
Sealing IP65 per IEC sealing specifications
ESD ±15KV air discharge, ±8KV conductive discharge
Developing Environment
Operating System Android 7.1
SDK Chainway Software Development Kit
Language Java
Tool Eclipse / Android Studio
Performance
CPU(1)
CPU Qualcomm 2.0GHz Octa-core
RAM+ROM(1)
Option 1
Option 2
CPU(2)
RAM+ROM 2GB+16GB / 3GB+32GB
High-level Configuration
MCU
Low-level Configuration
RAM+ROM(2)
RAM+ROM
Expansion Supports up to 128 GB Micro SD card
Storage
UHF1 (Optional)
Engine CM2000-1 module based on Impinj Indy R2000
Frequency 865MHz-868MHz / 920-925MHz / 902-928MHz
Protocol EPC C1 GEN2 / ISO18000-6C
Antenna Circular Polarized Antenna (4dBi)
Power 1W (30dBm, +5dBm to +30dBm adjustable)
2W Optional (33dBm, for Lati America, etc.)
R/W range >25m (indoors); >10m (open outdoors)
Reading rate >200 tags/s
Communication Mode Pin Connector
Note *Ranges and rates depend on tags and environment
UHF2 (Optional, UHF Sled)
Engine CM2000-1 module based on Impinj Indy R2000
Frequency 865MHz-868MHz / 920-925MHz / 902-928MHz
Protocol EPC C1 GEN2 / ISO18000-6C
Antenna Circular Polarized Antenna (3dBi)
Power 1W (30dBm, support +5~+30dBm adjustable)
2W Optional (33dBm, for Lati America, etc.)
R/W range >22m(indoors);>8m(open outdoors)
Reading rate >200tags/s
Communication Mode Pin Connector / Bluetooth
Note *Ranges and rates depend on tags and environment
Communication(Quad-core)
WLAN
WWAN (China)
WWAN (Europe)
WWAN (America)
WWAN (Others)
Bluetooth
GNSS
Note
Communication(Octa-core)
WLAN
WWAN (China)
WWAN(Europe)
WWAN(Overseas)
WWAN (America)
WWAN (Others)
Bluetooth
GNSS
Communication
WLAN Support 802.11 a/b/g/n/ac
WWAN (Optional)
WWAN
WWAN (Europe, Asia) 2G: 850/900/1800/1900MHz
3G: CDMA EVDO: BC0
       WCDMA: 850/900/1900/2100MHz
       TD-SCDMA: A/F(B34/B39)
4G: B1, B3, B5, B7, B8, B20, B38, B39, B40, B41
WWAN (Europe)
WWAN (America) 2G: 850/900/1800/1900MHz
3G: 850/900/1900/2100MHz
4G: B2, B4, B5, B7, B12, B17, B38
WWAN (China)
WWAN (Others)
Bluetooth Bluetooth 4.2/4.1+HS/4.0/3.0+HS/2.1+EDR
GPS
GNSS GPS/AGPS, GLONASS, BeiDou, internal antenna
GPS (Optional)
GNSS(Optional)
Fingerprint
Functions
Memory
Sensor
Image Size (pixel)
Sensing Area (mm)
Resolution (dpi)
Standard
Formats
Certifications
Format Extraction
Security
Fake Finger Detection
Module
Sensor Type
Pixel Array
Note
PSAM
Protocol
Slots
Note
UHF RFID
Engine
Frequency
Protocol
Antenna
Power
R/W ranges
Reading rates (circular polarization)
Output Power
Output Power Precision
Output Power Flatness
Receive Sensitivity
RSSI
Ambient Temp Monitor
Reading rate
Antenna Detector
Antenna Port
Note
Note2
InfraRed
Wavelength
Frequency
Range
Protocol
Note
Barcode Scanning
2D Scanner Zebra: SE4710 / SE2100; Honeywell: N6603
Scan engine(Quad-core)
Scan engine(Octa-core)
1D Linear Scanner
Scan engine
1D Linear Scanner(Quad-core)
1D Symbologies UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
2D Imager Scanner(Quad-core)
2D Imager Scanner(Octa-core)
2D Imager Scanner
2D Symbologies PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX),etc.
Note *This function is optional
Note2
LF RFID
Frequency
Protocol
Chips
Range
Note
Camera
Camera Rear 13MP Autofocus with flash
Front Camera
Top Camera
External Camera (optional)
Rear Camera
Note
Note2
Thermal Printer
Rate
Image Size (pixel)
Paper Width
Paper Diameter
Paper Length
NFC
Frequency 13.56MHz
Protocol ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
Chips M1 card (S50, S70), CPU card, NFC tags, etc.
Range 2-4cm
Remark
Note
Note2
LF RFID (with external antenna)
Frequency
Protocol
Chips
Range
Note
HF RFID
HF
Frequency
Protocol
Chips
Range
Note
Note2
Iris Recognition
Rate
Range
FAR
Note
Note2
HID iCLASS SE
Frequency
Chips
Protocol
OBD
Protocol
Reading Performance
Reading Rate
Reading Range
Optional accessories
Accessories Separate handle with one button;

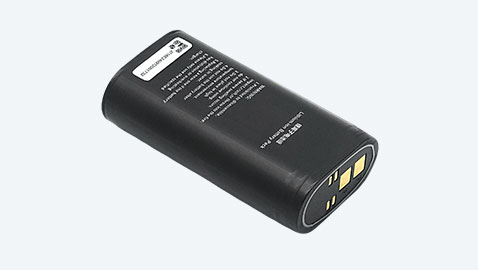

Handle + battery(handle battery 5200mAh, one button);
UHF back clip + handle(5200mAh, one button);

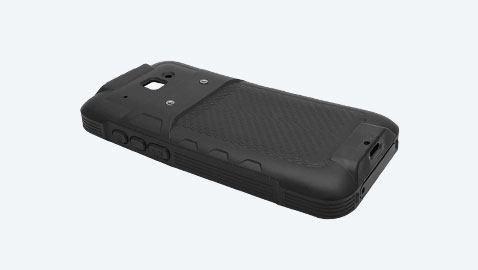

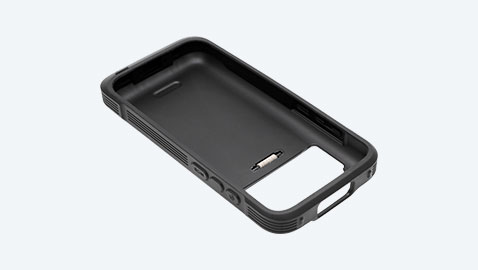

Wrist Strap; Rubber Bumper; Charging Cradle
Note *See details in Accessory Guide
