P80 RFID Tablet

Best-in-Class RFID Reading Performance

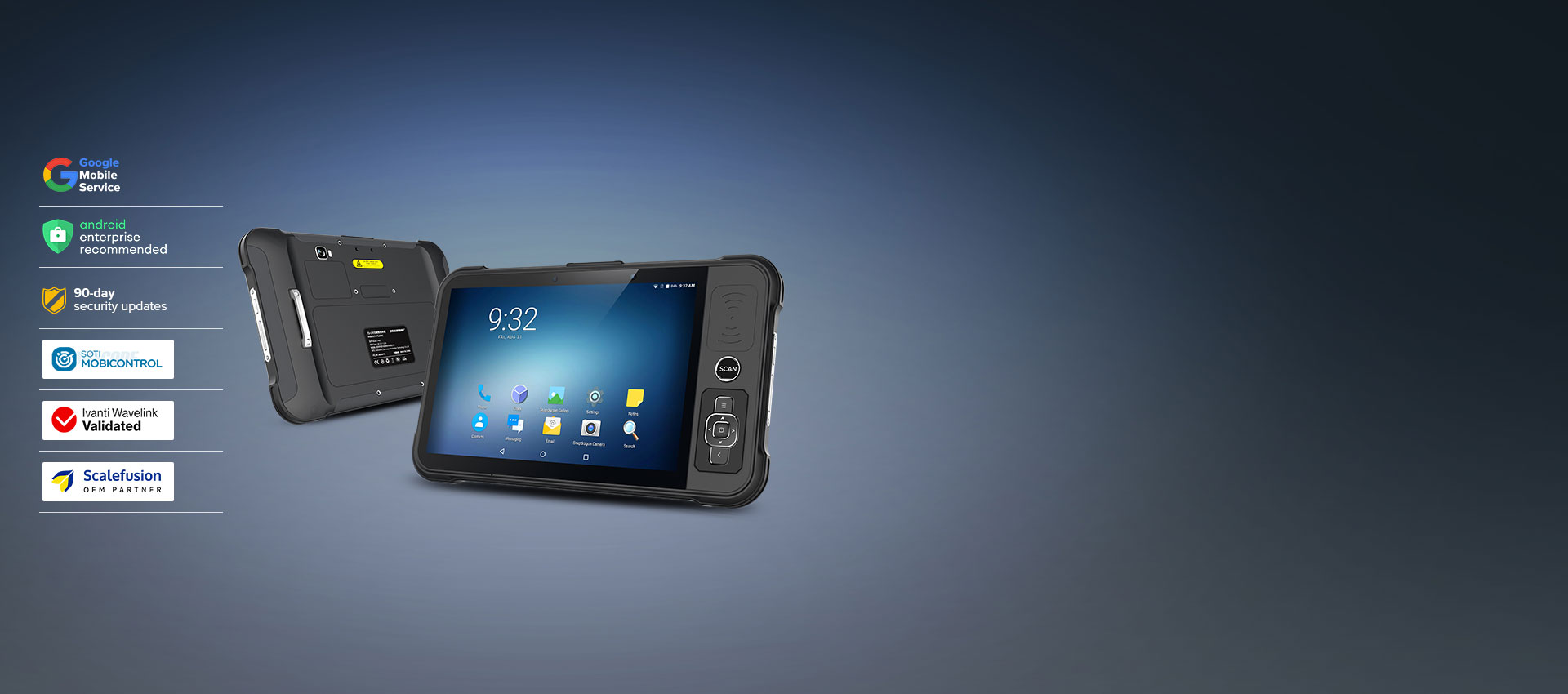

Chainway P80 RFID tablet, integrated with Chainway’s industry best self-developed UHF RFID module CM2000-1 (with Impinj R2000 chip), is the ideal device to get superior reading/writing performance. The device ensures high reliability with 8000 mAh battery for long lasting backup and has an 8'' large IPS display with Android 7.1 OS. This tablet with RFID reader can perform multiple tasks in various sectors such as retail operation, inventory management, logistics, asset management etc.

Get Quote

Best-in-Class Rugged Tablet with RFID Reader

Features

Android 7.1 OS	High Performance CPU
4G/Dual-band WIFI	8'' IPS 1920x1200 Screen
8000mAh Powerful Battery	IP65 Sealing

Functions

Industry-leading Scan Engine	UHF RFID
HF RFID/NFC	Fingerprint Authentication
Iris Scanning	InfraRed
Camera/GPS	Secure PSAM

SPECIFICATIONS

Performance Parameter
Optical system
Light Source
Image Sensor
Image (Pixels)
Field of View
Decoding Rate
Decoding Capabilities
Roll / Pitch / Yaw
Scanning speed
Print Contrast
Angle
Resolution
Depth of Field
Printing Contrast
Prompting Mode
Interface
Trigger Mode
Setting Mode
Frequency
Communication Distance
Transmission Rate
Current
Capability of Battery

Specification(USB IRIS Scanner)
Working Current
Start Current
Standby Current
Working Current
Resolution Ratio
FoV
Identification Range
Registration Range
Registration Time
Identification Time
Infared Wavelength
FAR
FRR
Frame Rate
Operating Temp.
Storage Temp.
Power Supply & Data Interface
Operating System Requirements
SDK Fitting System

Symbology Decode Capability
1-D
2-D
Decoding rate
Interfaces

Development Board
Module

Physical Characteristics
Dimensions	250.8mm x 152mm x 15mm / 9.87 x 5.98 x 0.59in ( for standard version )
Weight	700g / 24.7oz ( for standard version )
Display	8'' IPS LTPS 1920x1200
Battery
Touch Panel	Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported
Power	Main battery: Li-ion, rechargeable, 8000mAh Standby: over 500 hours Continuous use: over 10 hours ( depending on user environment ) Charging time: 5-7 hours ( with standard AC adaptor and USB cable )
Speaker
Vibrator
Microphone
Expansion Slot	1 slot for SIM card, 1 slot for TF card, 2 optional slots for PSAM cards ( ISO7816 T=0, T=1 protocol )
Buzzer
Interfaces	USB 3.0 Type-C, OTG
Card slot
Audio	Speaker, microphone
Input Mode
Keypad	1 front key , 1 volume key , 1 power key , direction key ( Optional )
Sensors	Gravity sensor
Pupil Lamp
Indicator LED
Size of adapted phone
Product Material
Colour
Voltage and Current
Material
Input Voltage
Standby Current
AC Adapter
Sleep Current
Comm Interface
GPIO
Baud Rate
Cooling Mode
Work Current
Display Interface

RFID Features
RF Chip
Air Interface Protocol
Working Frequency
Output Power
Output Power Flatness
Antenna Interface
Regions Supported
Receive Sensitivity
Tag RSSI
Antenna Detector
Ambient Temp Monitor
Working Mode

Communication Interface
Connector
Host Communication

Power Supply
Input Voltage
Power Consumption in RF Output Mode
Power Consumption in Standby Mode（EN high TTL level）
Power Consumption in Power Down Mode（EN low TTL level）

User Environment
Input Voltage
Operating Temp.	-4°F to 122°F / -20°C to 50°C
Storage Temp.	-40°F to 158°F / -40°C to 70°C
Humidity	5%RH - 95%RH non condensing
Luminance of environment
Drop Specification	Multiple 1.5m / 4.9ft drops ( at least 20 times ) to the concrete across the operating temperature range
Tumble Specification	500 x 0.5m / 1.64ft falls at room temperature
Ambient Light Immunity
Sealing	IP65 per IEC sealing specifications
ESD	±15KV air discharge, ±8KV conductive discharge

Developing Environment
Operating System	Android 7.1
SDK	Chainway Software Development Kit
Language	Java
Tool	Eclipse / Android Studio

Performance
CPU（1）
CPU	Qualcomm 1.8GHz Octa-core / Qualcomm 2.0GHz Octa-core
RAM+ROM（1）
Option 1
Option 2
CPU（2）
RAM+ROM	2GB+16GB / 3GB+32GB
High-level Configuration
MCU
Low-level Configuration
RAM+ROM（2）
RAM+ROM
Expansion	Supports up to 128GB Micro SD card
Storage

UHF1 (Optional)
Engine
Frequency
Protocol
Antenna
Power
R/W range
Reading rate
Communication Mode
Note

UHF2 (Optional, UHF Sled)
Engine
Frequency
Protocol
Antenna
Power
R/W range
Reading rate
Communication Mode
Note

Communication(Quad-core)
WLAN
WWAN (China)
WWAN (Europe)
WWAN (America)
WWAN (Others)
Bluetooth
GNSS
Note

Communication(Octa-core)
WLAN
WWAN (China)
WWAN(Europe)
WWAN(Overseas)
WWAN (America)
WWAN (Others)
Bluetooth
GNSS

Communication
WLAN	IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, internal antenna
WWAN (Optional)
WWAN	2G: 850/900/1800/1900MHz, GPRS, EDGE 3G: CDMA EVDO:BC0 TD-SCDMA: B34/B39 WCDMA: B1/B2/B5/B8 4G: TDD-LTE: B38/B39/B40/B41 FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B20/B26/B28
WWAN (Europe, Asia)
WWAN (Europe)
WWAN (America)
WWAN (China)
WWAN (Others)	Depending on the country's ISP Note: P80 models being manufactured for Turkish Market, do not include Voice Call ( Phone Call ) function. WAN module included on those models only support DATA transfer.
Bluetooth	Bluetooth 4.2/4.1+HS/4.0/3.0+HS/2.1+EDR
GPS
GNSS	GPS/AGPS, GLONASS, BeiDou, internal antenna
GPS (Optional)
GNSS（Optional）

Fingerprint
Functions
Memory
Sensor	TCS1/TCS2 Capacitive; Optical Morpho CBM-E3
Image Size (pixel)
Sensing Area (mm)	12.8×18; 10.4x14.4; 14x22
Resolution (dpi)	508 dpi, 8-bit greylevel; 500 dpi, 256 greylevel
Standard
Formats
Certifications	FIPS 201, STQC; FIPS PIV IQS / ISO 19794-4, MINEX & FIPS 201 complaint, STQC
Format Extraction	ISO 19794, WSQ, ANSI 378, JPEG2000; ISO 19794-2/4, WSQ, ANSI 378, etc.
Security	AES, DES key encryption of the host communication channel; FIPS 140-2 level 2, multiple security methods available, including image and templates encryption, template signature, secure tunneling, etc.
Fake Finger Detection	Support by SDK; Latex, Gelatin, Plasticine, Kapton, Transparent Film, Silicone, Rubber, Play-doh, Graphite Or Paper
Module
Sensor Type
Pixel Array
Note	* This function is optional

PSAM
Protocol	ISO7816
Slots	2 PSAM card slot
Note	* This function is optional

UHF RFID
Engine	CM2000-1 module based on Impinj Indy R2000
Frequency	865MHz-868MHz / 920-925MHz / 902-928MHz
Protocol	EPC C1 GEN2 / ISO18000-6C
Antenna	Circular polarization ( default UHF, 3dBi ; UHF with pistol grip, 4dBi )
Power	1W ( 30dBm, +5dBm to +30dBm adjustable ) 2W Optional ( 33dBm, for Lati America, etc. )
R/W ranges	＞10m ( open outdoors ) ; ＞25m ( indoors )
Reading rates (circular polarization)	＞200 tags/s
Output Power
Output Power Precision
Output Power Flatness
Receive Sensitivity
RSSI
Ambient Temp Monitor
Reading rate
Antenna Detector
Antenna Port
Note	* Ranges and rates depend on tags and environment
Note2

InfraRed
Wavelength	940nm
Frequency	38kHz
Range	> 4m
Protocol	DLT_645-2007, DLT_645-1997
Note	* This function currently only has an interface reserved.

Barcode Scanning
2D Scanner
Scan engine(Quad-core)
Scan engine(Octa-core)
1D Linear Scanner
Scan engine	Zebra SE4710 ( standard ) , Zebra SE4850 ( optional )
1D Linear Scanner（Quad-core）
1D Symbologies	UPC/EAN, Code128, Code39, Code93, Code11, Codabar, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, MSI, RSS, etc.
2D Imager Scanner(Quad-core)
2D Imager Scanner(Octa-core)
2D Imager Scanner
2D Symbologies	PDF417, MicroPDF417, Composite, RSS, TLC- 39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal ( KIX ) , etc.
Note	* This function is optional
Note2

LF RFID
Frequency
Protocol
Chips
Range
Note

Camera
Camera	13MP Autofocus with flash
Front Camera	8MP
Top Camera
External Camera (optional)
Rear Camera
Note
Note2

Thermal Printer
Rate
Image Size (pixel)
Paper Width
Paper Diameter
Paper Length

NFC
Frequency	13.56MHz
Protocol	ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
Chips	M1 card ( S50, S70 ) , CPU card, NFC tags, etc.
Range	2-4cm
Remark
Note	* This function is optional
Note2

LF RFID (with external antenna)
Frequency
Protocol
Chips
Range
Note

HF RFID
HF
Frequency	13.56MHz
Protocol
Chips
Range
Note	* This function is optional
Note2	* HF RFID is alternative to NFC

Iris Recognition
Rate	<150ms
Range	20-40cm
FAR	1/10000000
Note	Protocol：ISO/IEC 19794-6，GB/T 20979-2007
Note2	* This function currently only has an interface reserved. * Front Iris

HID iCLASS SE
Frequency
Chips
Protocol

OBD
Protocol

Reading Performance
Reading Rate
Reading Range

Optional accessories
Accessories
Note
