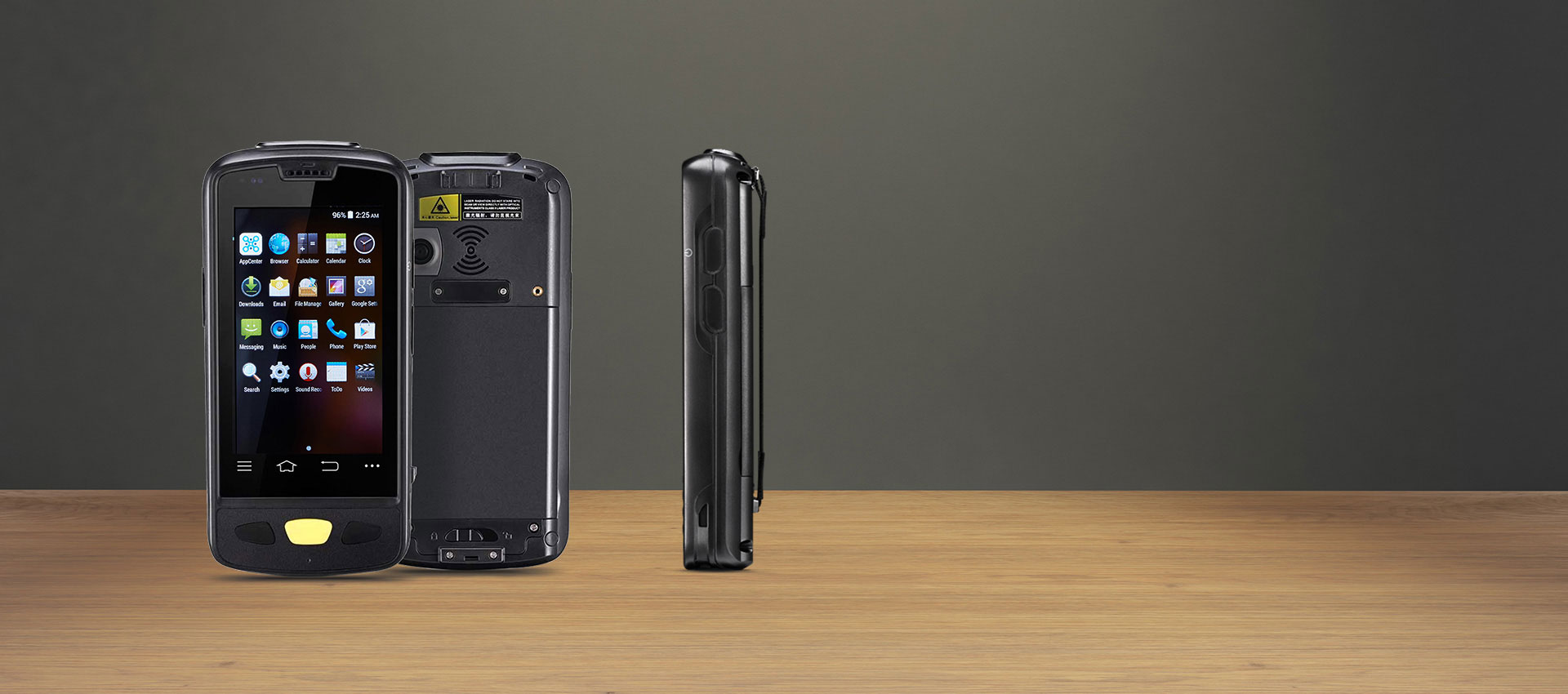

Rugged and Portable with High Performance

Features
Android OS High Performance CPU
Stable WiFi 3G/Bluetooth
Powerful Battery
Functions
Industry-leading Scan Head HF RFID/NFC
LF RFID Fingerprint Authentication
InfraRed Accurate GPS

SPECIFICATIONS

Performance Parameter
Optical system
Light Source
Image Sensor
Image (Pixels)
Field of View
Decoding Rate
Decoding Capabilities
Roll / Pitch / Yaw
Scanning speed
Print Contrast
Angle
Resolution
Depth of Field
Printing Contrast
Prompting Mode
Interface
Trigger Mode
Setting Mode
Frequency
Communication Distance
Transmission Rate
Current
Capability of Battery
Symbology Decode Capability
1-D
2-D
Decoding rate
Interfaces
Development Board
Module
Physical Characteristics
Dimensions 153mm x 75mm x 29mm/ 6.02 x 2.95 x 1.14in
Weight 286g/ 10.09oz
Display 4’’ WVGA (480*800), 16.7M colors
Touch Panel Rugged capacitive touch panel
Power Main battery: Li-ion, 3200mAh
Pistol battery: Li-ion, 5200mAh (Optional)
Expansion Slot 1 PSAM(optional, ISO7816 Protocol), 1 SIM, 1 MicroSD(TF) slot
Interfaces USB Micro-B
Audio 0.5W speaker, build-in microphone
Input Mode
Keypad 4 TP touch key-press buttons
Sensors Light sensor, proximity sensor
Pupil Lamp
Voltage and Current
Material
AC Adapter
RFID Features
RF Chip
Air Interface Protocol
Working Frequency
Output Power
Output Power Flatness
Antenna Interface
Regions Supported
Receive Sensitivity
Tag RSSI
Antenna Detector
Ambient Temp Monitor
Working Mode
Communication Interface
Connector
Host Communication
Power Supply
Input Voltage
Power Consumption in RF Output Mode
Power Consumption in Standby Mode(EN high TTL level)
Power Consumption in Power Down Mode(EN low TTL level)
User Environment
Input Voltage
Operating Temp. -4°F to 122°F / -20°C to 50°C
Storage Temp. -40°F to 158°F / -40°C to 70°C
Humidity 5%RH - 95%RH non condensing
Luminance of environment
Drop Specification Multiple 1.2m drops to concrete across the operating temperature range
Tumble Specification 1000 x 0.5m/1.64ft falls at room temperature
Ambient Light Immunity
Sealing IP64
ESD
Performance
CPU(1)
CPU Cortex-A7 1.3GHz quad-core
RAM+ROM(1)
Option 1
Option 2
CPU(2)
RAM+ROM 1GB+4GB
High-level Configuration
Low-level Configuration
RAM+ROM(2)
RAM+ROM
Expansion Supports up to 32GB Micro SD card
Developing Environment
Operating System Android 4.4.2
SDK Chainway Software Development Kit
Language Java
Tool Eclipse / Android Studio
Communication
WLAN IEEE802.11 b/g/n
WWAN (Optional)
WWAN GSM/GPRS/EDGE Quad Band (850/900/1800/1900MHz)
WCDMA (850/1900/2100MHz)
WWAN (Europe)
WWAN (America)
WWAN (China)
WWAN (Others)
Bluetooth Bluetooth 4.0
GPS
GNSS GPS, AGPS
GPS (Optional)
GNSS(Optional)
Fingerprint
Functions Fingerprint enrollment, match, storage etc.
Memory
Sensor TCS1 / TCS2SS (Capacitive)
Image Size (pixel) TCS1: 256×360; TCS2SS: 208×288
Sensing Area (mm) TCS1: 12.8×18; TCS2SS: 10.4×14.4
Resolution (dpi) 508
Standard TCS1: FIPS, STQC; TCS2SS: ISO
Formats
Certifications
Format Extraction
Security
Fake Finger Detection
Module
Sensor Type
Pixel Array
Note *This function is optional
UHF RFID
Frequency
Protocol
Antenna
Power
R/W ranges
Reading rates (circular polarization)
Note
Note2
PSAM
Protocol
Slots
Note
InfraRed
Wavelength 940nm
Frequency 38kHz
Range > 4m
Protocol DLT_645-2007
Note *This function is optional

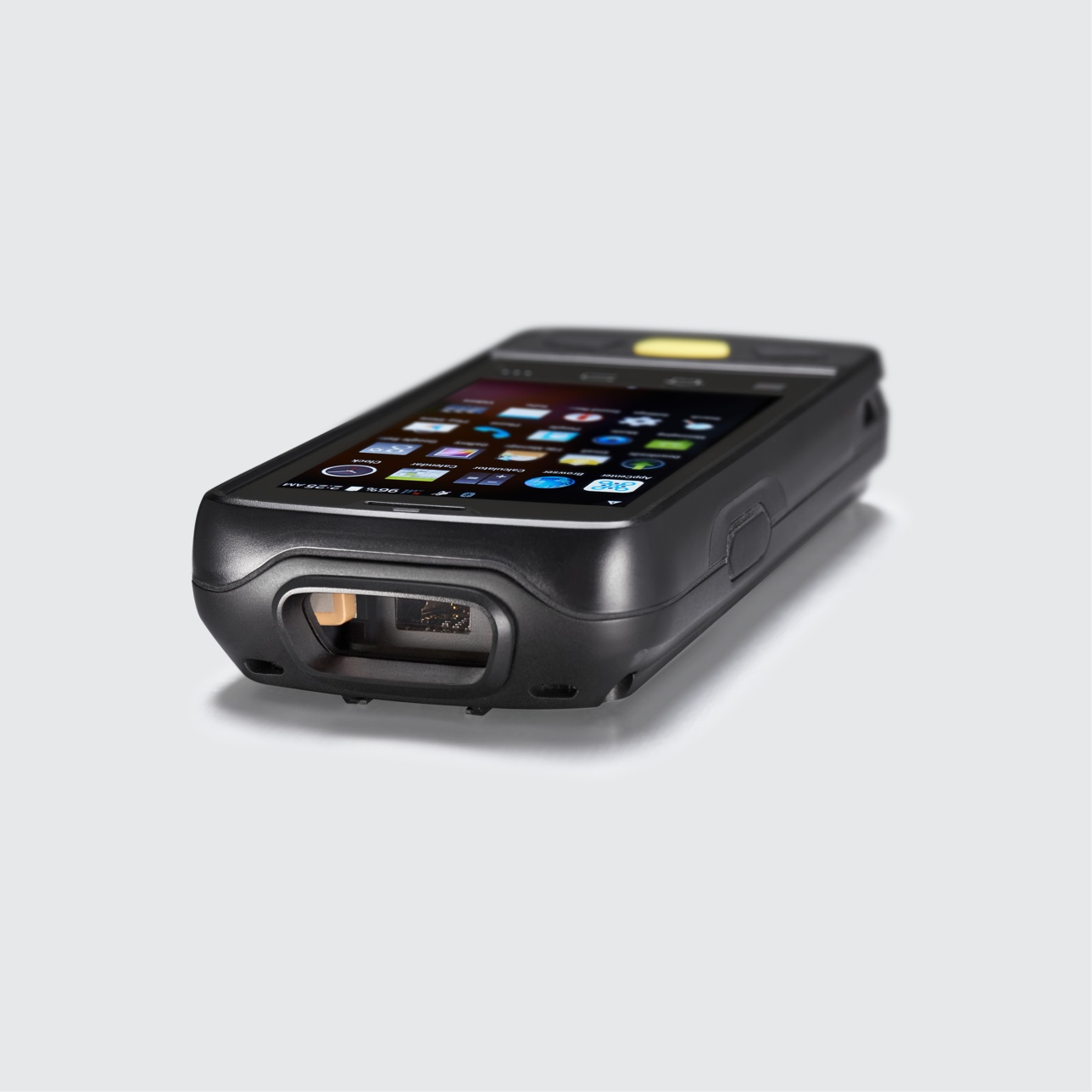

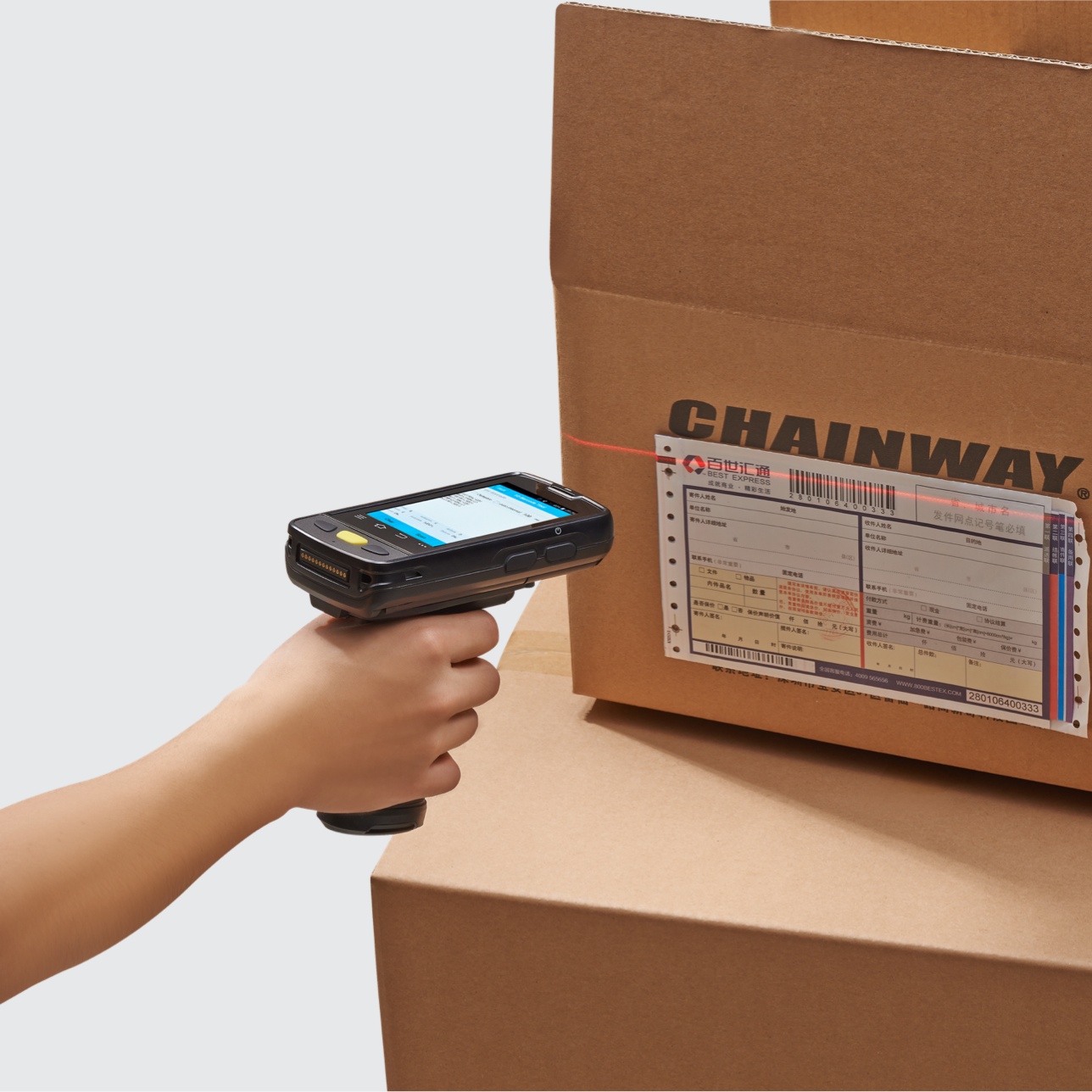

Barcode Scanning
1D Linear Scanner Honeywell N4313 / Zebra SE965
2D Imager Scanner Zebra SE4750 / Zebra SE4750MR
Scan engine
1D Symbologies UPC/EAN, Code128, Code39, Code93, Code11,Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
2D Symbologies PDF417, MicroPDF417, Composite, RSS, TLC-39,Datamatrix, QR code, Micro QR code, Aztec,MaxiCode; Postal Codes: US PostNet, US Planet,UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.
Note *This function is optional
Note2
LF RFID
Frequency 125kHz, 134kHz (FDX-B / HDX)
Protocol ISO11784/5, ISO18000-2
Chips R/O ID card, eg EM4100/4200, TK4100
R/W ID card, eg EM4305/HITAG S
Animal tags
Others for customization
Range 3-8cm
Note *This function is optional
Camera
Camera 8MP Autofocus with flash
Front Camera
Top Camera
External Camera (optional)
Note
Note2
Thermal Printer
Rate (mm/s)
Image Size (pixel)
Paper Width (mm)
NFC
Frequency 13.56MHz
Protocol ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
Chips M1 card (S50, S70), CPU card, NFC tags, etc
Range 2-4cm
Remark
Note *This function is optional
Note2

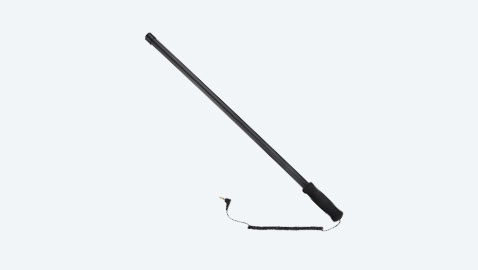

LF RFID (with external antenna)
Frequency 134kHz (FDX-B+HDX)
Protocol ISO11784/5
Chips Animal tags
Others for customization
Range 3-12cm, external antenna
3-20cm, with a 75cm extension antenna
Note *This function is optional
HF RFID
HF
Frequency 13.56MHz
Protocol ISO14443A/B,ISO15693
Chips M1 card (S50/S70), M0 (Ultralight),M3 (Desfire D40/D41/D81)
CPU_A card,CPU_B card
ICODE II,TI2048,LRI64K
Others for customization
Range 3-8cm
Note *This function is optional
Note2
Iris Recognition
Rate
Range
FAR
Note
Note2
HID iCLASS SE
Frequency
Chips
Protocol
OBD
Protocol
Reading Performance
Reading Rate
Reading Range

DOWNLOADS

Softwares

APPcenter and KeyboardEmulator

2017-05-02
ZIP
Certificates

ISO9001

2017-07-14
PDF

ISO14001

2017-07-14
PDF

C4000-CCC

2017-07-14
PDF

C4000-CE

2017-11-08
PDF

C4000-RoHS

2017-07-14
PDF

C4000 Cradle-RoHS

2017-07-14
PDF

C4000-FCC

2017-07-14
ZIP

C4000-BIS

2017-07-14
PDF

C4000-IP64

2017-07-14
PDF

Accessories

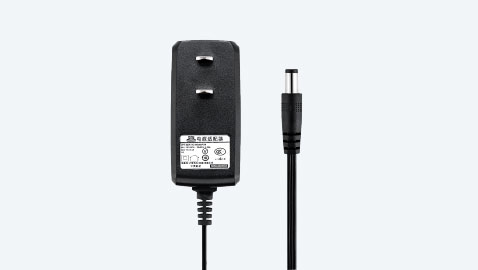

Adapter(CH)

DCPWR-C4000-5V2A-CN

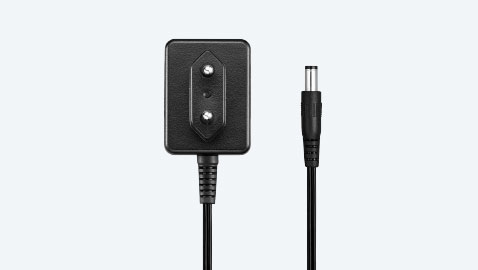

Adapter(EU)

DCPWR-C4000-5V2A-EU

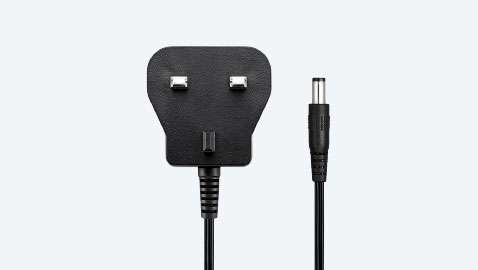

Adapter(UK)

DCPWR-C4000-5V2A-UK

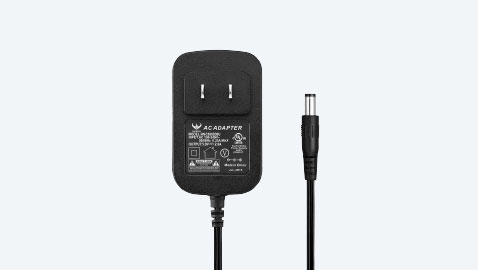

Adapter(US)

DCPWR-C4000-5V2A-US

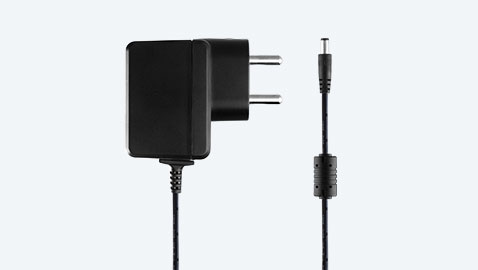

Adapter(IND)

DCPWR-C4000-5V2A-IN

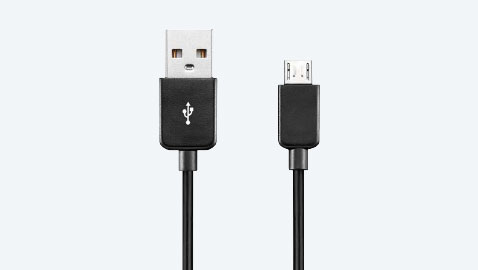

USB Cable

DC-C4000-USB

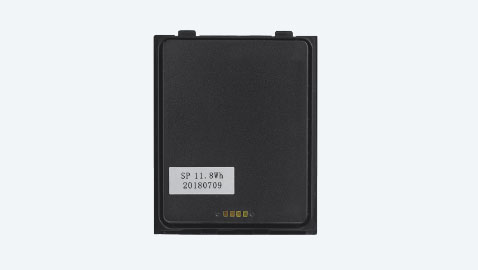

Battery

BTRY-C4000-32MA

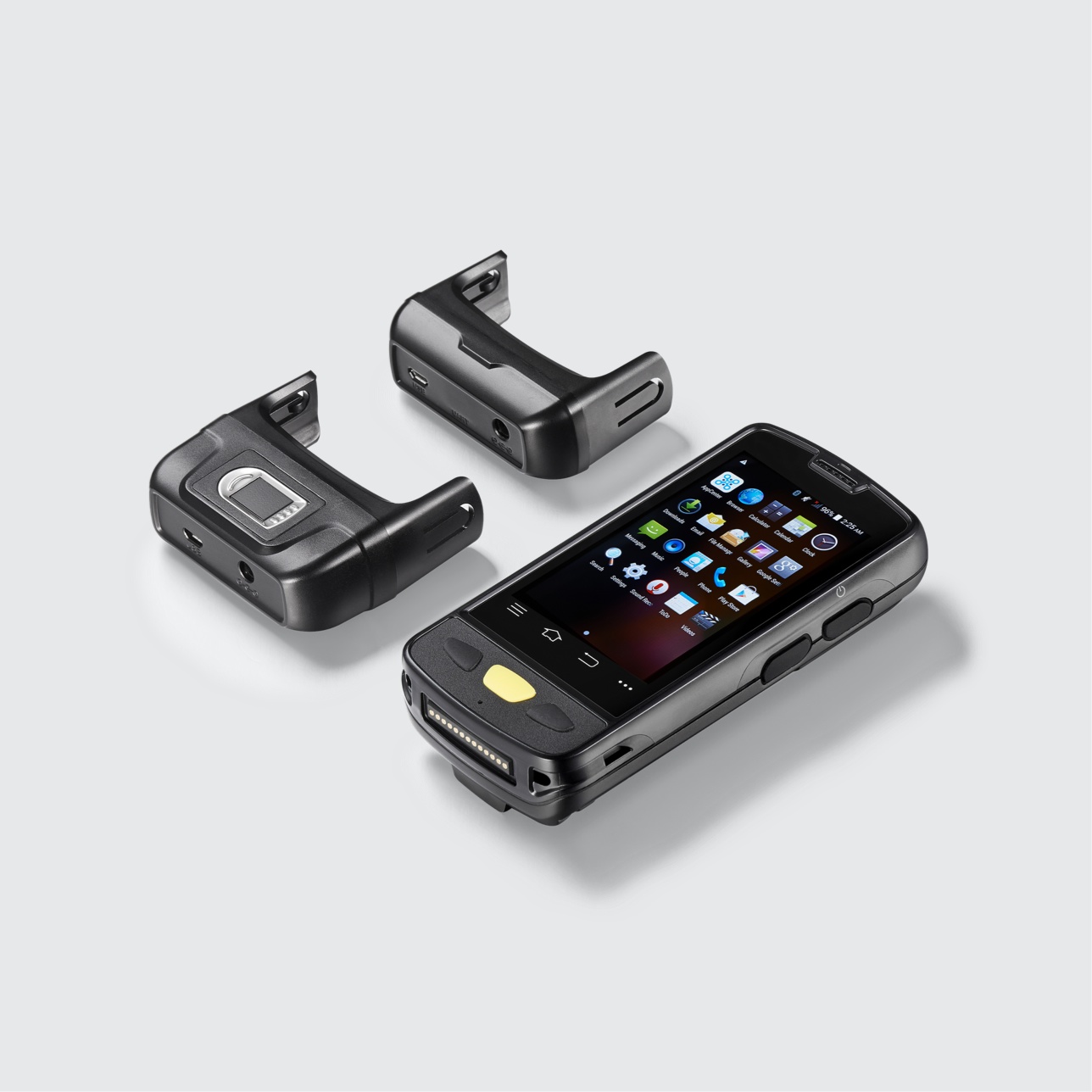

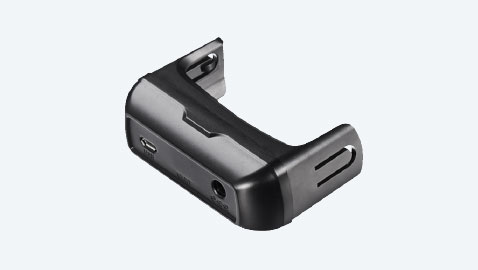

Snap-on

SNP-C4000-USB/DC

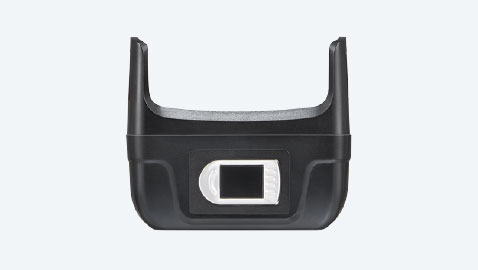

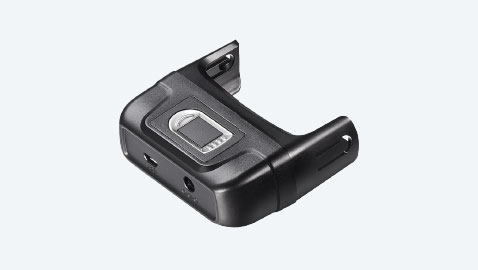

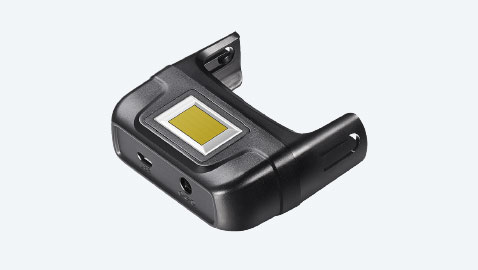

Fingerprint Snap-on(Optional)

SNP-C4000-USB/DC-FP-ISO

Fingerprint Snap-on(Optional)

SNP-C4000-USB/DC-FP-FIPS

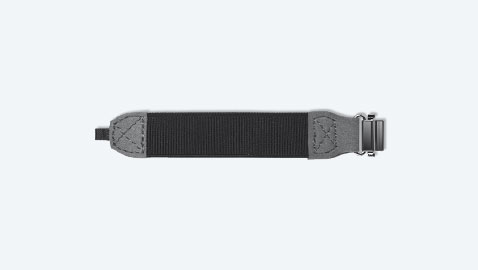

Wrisband

SG-C4000-HDSTP

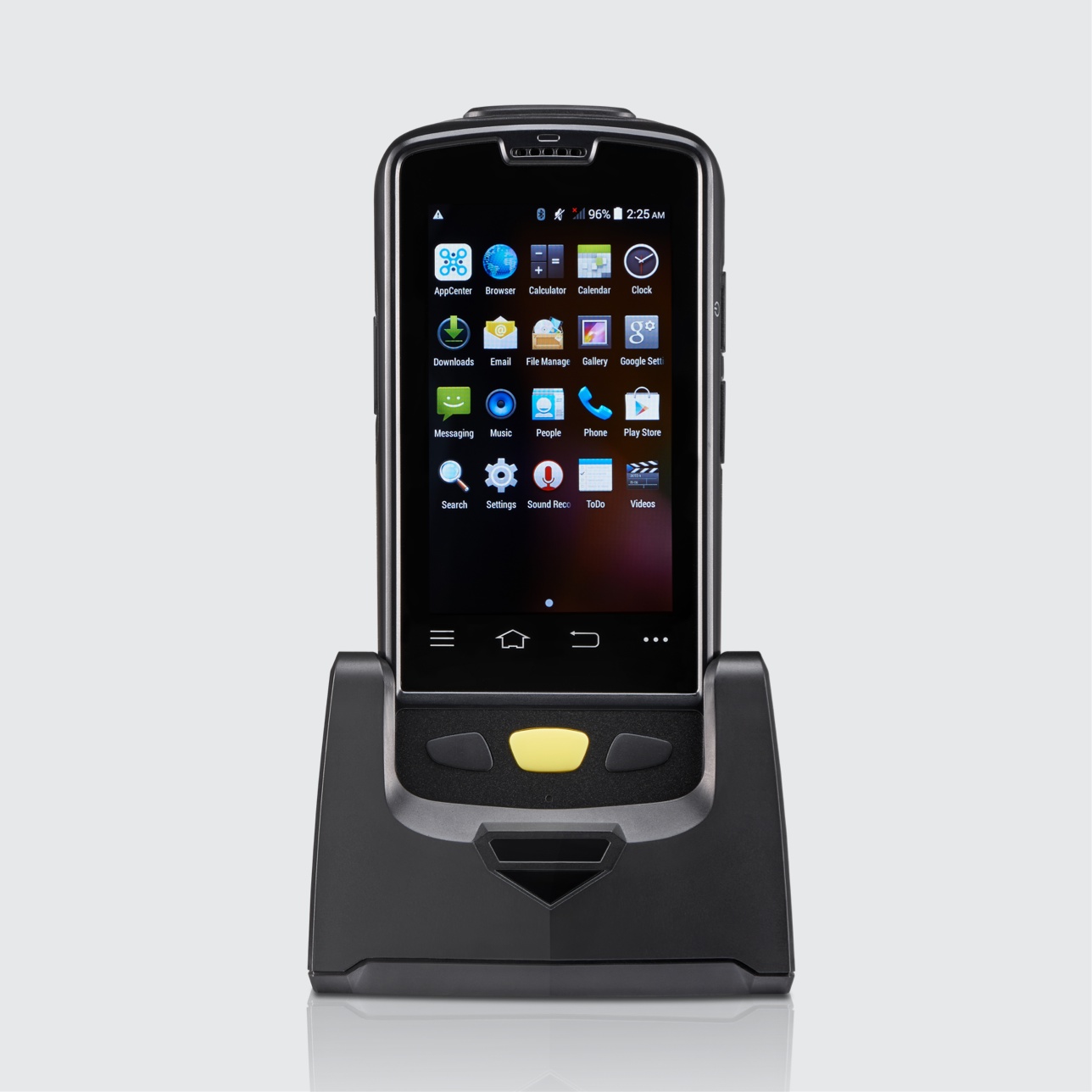

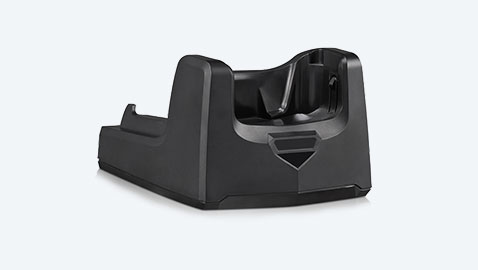

Cradle(Optional)

CRD-C4000-1SC1B

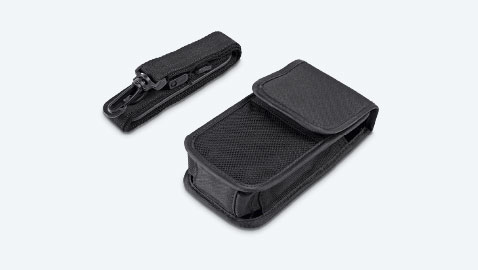

Holster
