Features
Android 5.1 OS High Performance CPU
4G LTE Network Stable WIFI/Bluetooth
Powerful Battery
Functions
Industry-leading Scan Head HF RFID/NFC
LF RFID Fingerprint Authentication
InfraRed Accurate GPS

SPECIFICATIONS

Performance Parameter
Optical system
Light Source
Image Sensor
Image (Pixels)
Field of View
Decoding Rate
Decoding Capabilities
Roll / Pitch / Yaw
Scanning speed
Print Contrast
Angle
Resolution
Depth of Field
Printing Contrast
Prompting Mode
Interface
Trigger Mode
Setting Mode
Frequency
Communication Distance
Transmission Rate
Current
Capability of Battery
Symbology Decode Capability
1-D
2-D
Decoding rate
Interfaces
Development Board
Module

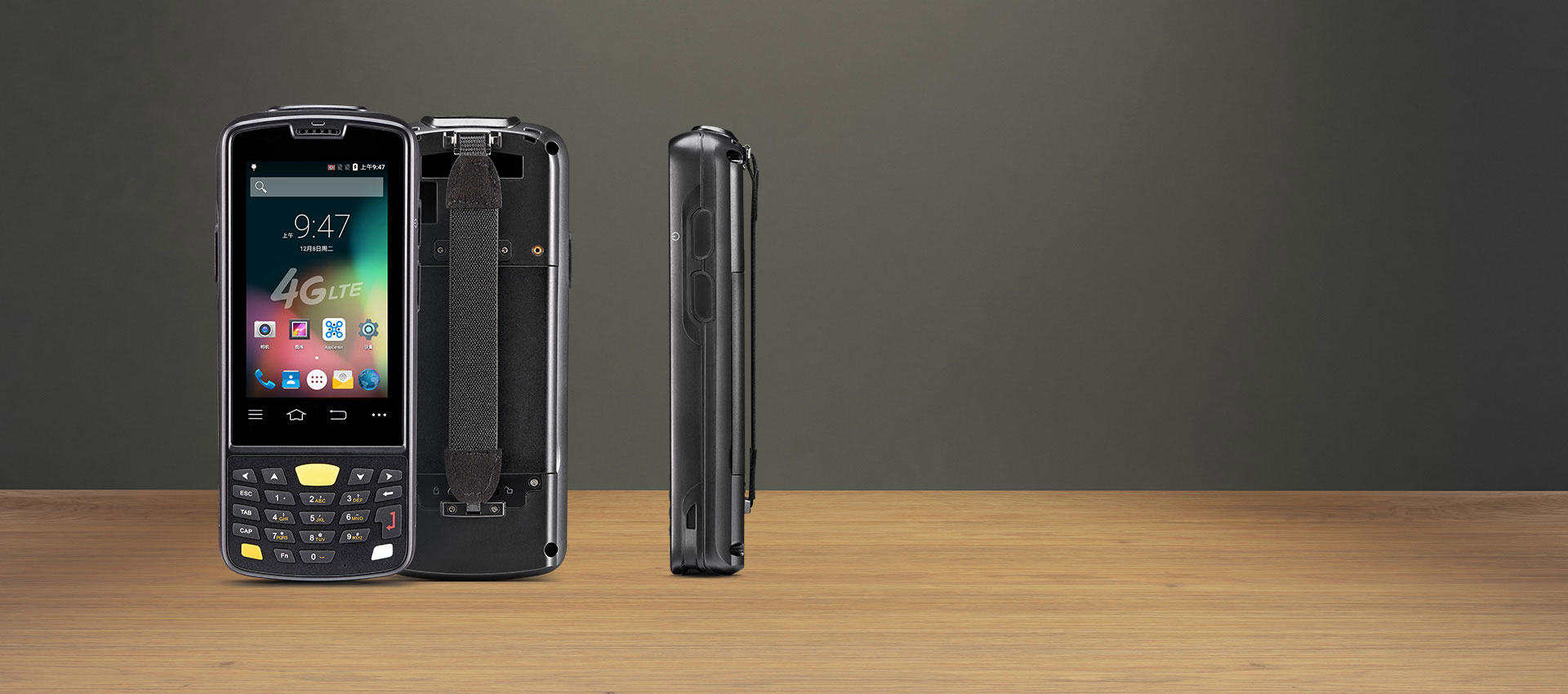

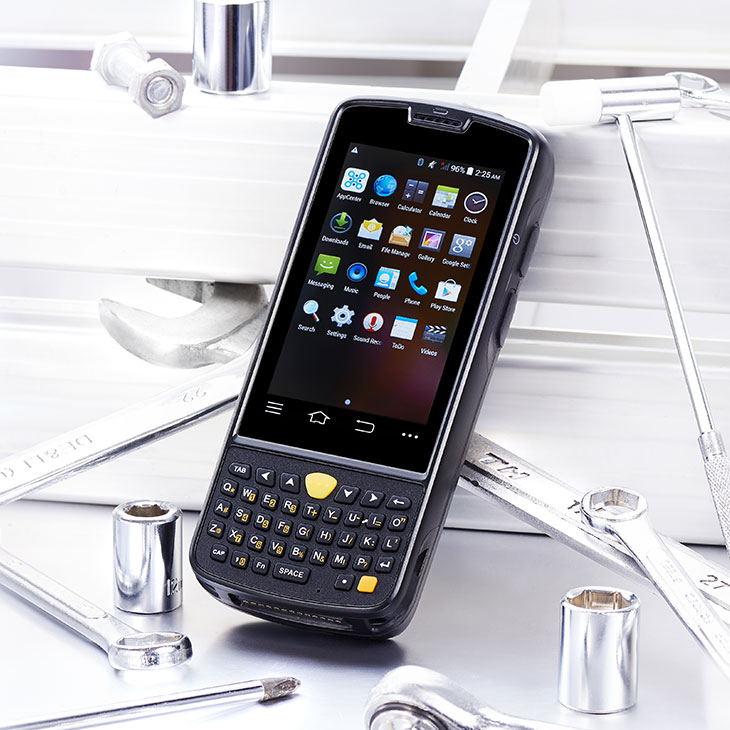

Physical Characteristics
Dimensions 176mm x 76mm x 29mm/ 6.93 x 2.99 x 1.14in
Weight 319g/ 11.25oz
Display 4’’ WVGA (480*800), 16.7M colors
Touch Panel Rugged capacitive touch panel

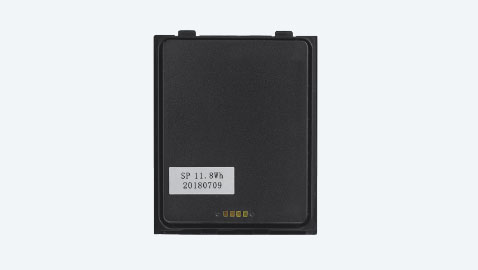

Power Main battery: Li-ion, 3200mAh

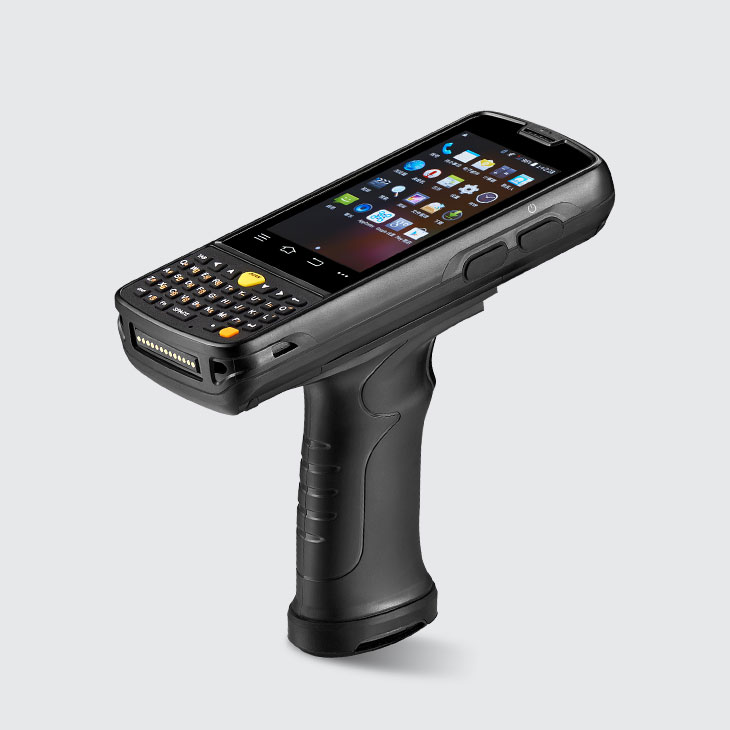

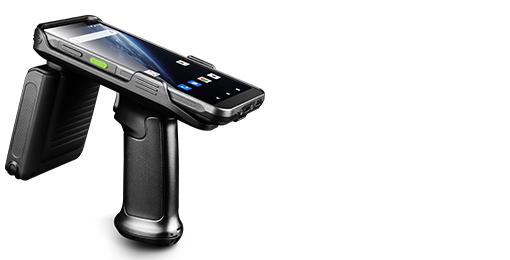

Pistol battery: Li-ion, 5200mAh (optional)
Expansion Slot 1 PSAM, 1 SIM, 1 MicroSD(TF) slot

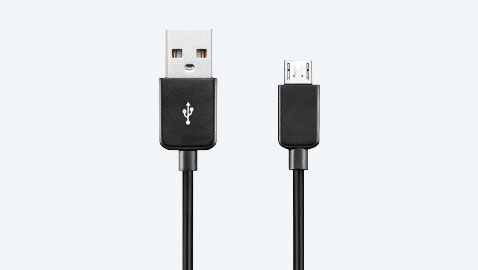

Interfaces USB Micro-B
Audio 0.5W speaker, build-in microphone

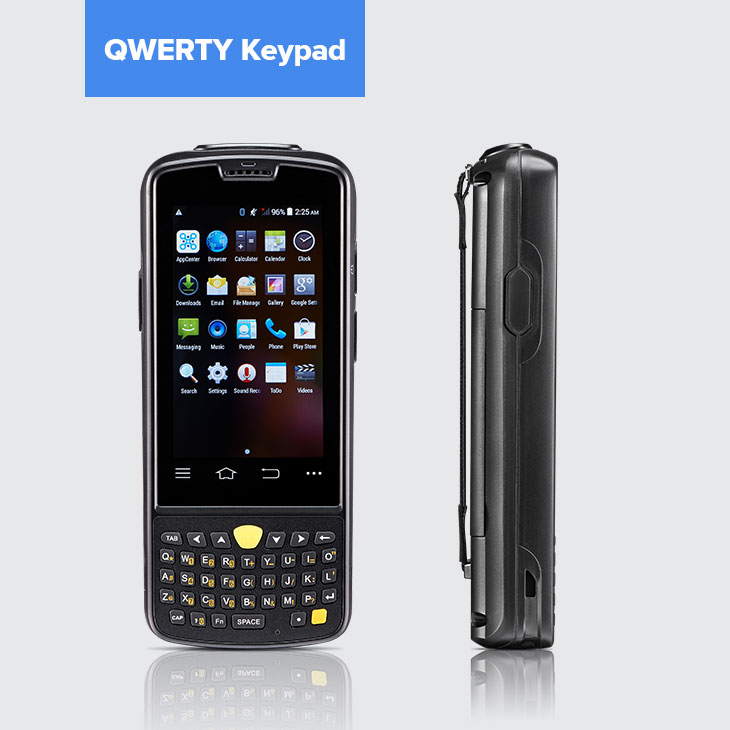

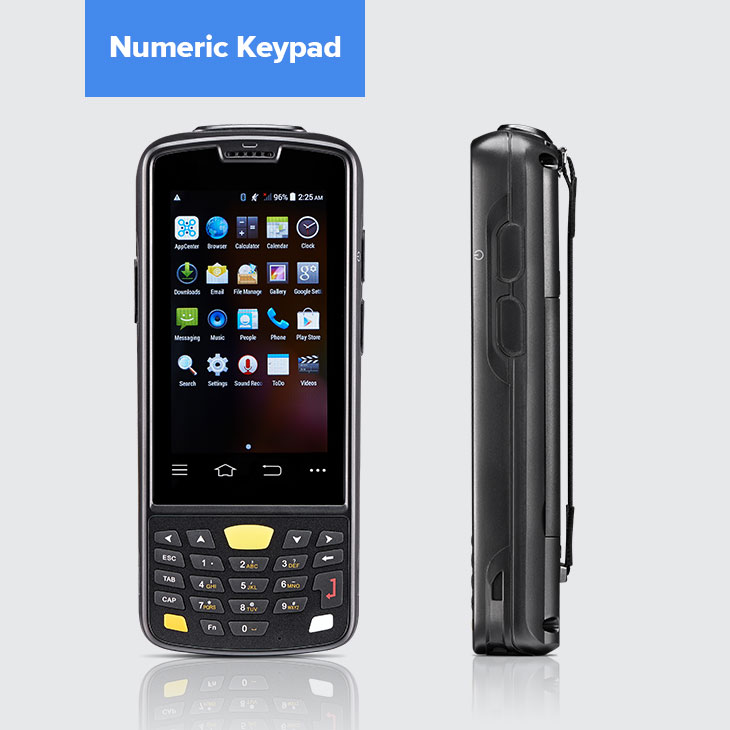

Keypad Numeric / Qwerty
Sensors Light sensor, proximity sensor
Pupil Lamp
Voltage and Current
Material

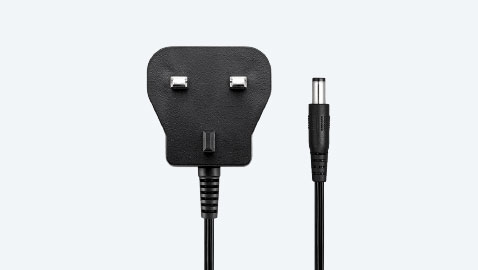

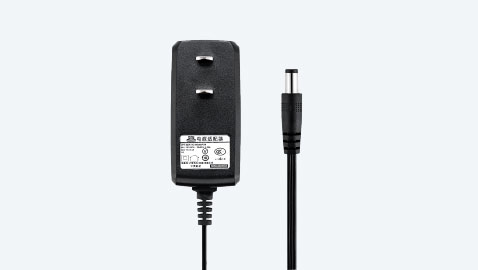

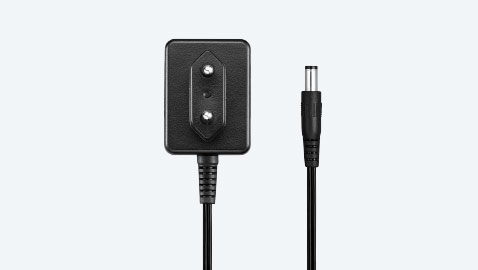

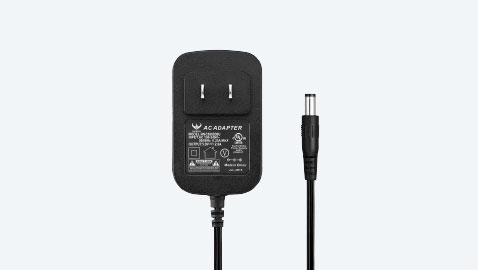

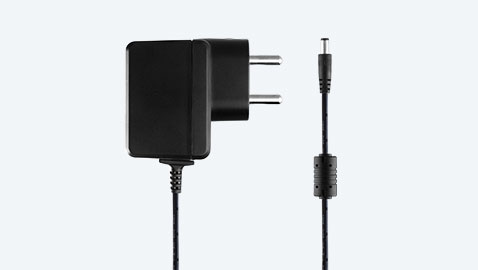

AC Adapter
RFID Features
RF Chip
Air Interface Protocol
Working Frequency
Output Power
Output Power Flatness
Antenna Interface
Regions Supported
Receive Sensitivity
Tag RSSI
Antenna Detector
Ambient Temp Monitor
Working Mode
Communication Interface
Connector
Host Communication
Power Supply
Input Voltage
Power Consumption in RF Output Mode
Power Consumption in Standby Mode(EN high TTL level)
Power Consumption in Power Down Mode(EN low TTL level)
User Environment
Input Voltage
Operating Temp. 4°F to 122°F / -20°C to 50°C
Storage Temp. -40°F to 158°F / -40°C to 70°C
Humidity 5%RH - 95%RH non condensing
Luminance of environment
Drop Specification Multiple 1.2m/3.9ft drops to concrete across the operating temperature range
Tumble Specification 1000 x 0.5m/1.64ft falls at room temperature
Ambient Light Immunity
Sealing IP64
ESD
Performance
CPU(1) Qualcomm 1.3 GHz quad-core
CPU
RAM+ROM(1) 2GB+16GB
Option 1
Option 2
CPU(2) Qualcomm 1 GHz quad-core
RAM+ROM(2) 1GB+8GB
RAM+ROM
High-level Configuration
Low-level Configuration
RAM+ROM
Expansion Supports up to 32GB Micro SD card
Developing Environment
Operating System Android 5.1
SDK Chainway Software Development Kit
Language Java
Tool Eclipse / Android Studio
Communication
GNSS(Optional)
WLAN IEEE802.11 a/b/g/n
WWAN
WWAN (Optional)
WWAN (Europe) 2G:GPRS(900/1800MHz)
3G:WCDMA B1、B8
4G:FDD-LTE:B1、B3、B7、B8、B20
WWAN (America) 2G: GPRS(850/1900MHz)
3G: WCDMA B1、B2、B5
4G: FDD- LTE: B2 B4 B7 B17
WWAN (China) 2G: GPRS(850/900/1800MHz)
3G:WCDMA :B1;CDMA EVDD:EVDD Rev.A800MHz;TD-SCDMA: B34, B39
4G: TDD-LTE: B38/B39/B40/B41;FDD-LTE: B1/B3
WWAN (Others)
Bluetooth Bluetooth 4.0
GPS GPS, AGPS
GNSS
GPS (Optional)
Biometric (Optional)
Sensor Type
Resolution
Memory
Size
Functions
Sensor
Fingerprint
Functions
Sensor
Image Size (pixel)
Sensing Area (mm)
Resolution (dpi)
Standard
Formats
Certifications
Format Extraction
Security
Fake Finger Detection
UHF (Optional)
Frequency
Frequency
Protocol
Antenna
Power
R/W range
Reading Rate
UHF RFID
Frequency
Protocol
Antenna
Power
R/W ranges
Reading rates (circular polarization)
InfraRed
Wavelength
Frequency
Range
Protocol
InfraRed (Optional)
Wavelength 940nm
Frequency 38kHz
Range > 4m
Protocol DLT_645-2007
Barcode Scanning (Optional)
1D Laser/CCD
1D Scan Engine Honeywell N4313 / Zebra SE965
1D Symbologies UPC/EAN, Code128, Code39, Code93, Code11,Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
2D CMOS Laser Scanner Zebra SE4500
2D Imager Scanner
2D Symbologies PDF417, MicroPDF417, Composite, RSS, TLC-39,Datamatrix, QR code, Micro QR code, Aztec,MaxiCode; Postal Codes: US PostNet, US Planet,UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.
Barcode Scanning
1D Linear Scanner
Scan engine
1D Symbologies
2D Imager Scanner
2D Symbologies
LF RFID (Optional)
Frequency 125kHz, 134kHz (FDX-B / HDX)
Protocol ISO11784/5, ISO18000-2
Chips R/O ID card, eg EM4100/4200, TK4100
R/W ID card, eg EM4305/HITAG S
Animal tags
Others for customization
Range 3-8cm
Camera
Camera
NFC
Frequency
Protocol
Chips
Range
Remark
Barcode Scanning (Optional)
2D Imager Scanner
1D Symbologies
2D Symbologies
LF RFID (with external antenna) (Optional)
Frequency 134kHz (FDX-B+HDX)
Protocol ISO11784/5
Chips Animal tags
Others for customization

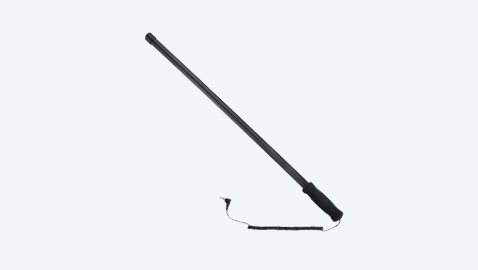

Range 3-12cm, external antenna
3-20cm, with a 75cm extension antenna
HF RFID (Optional)
Frequency 13.56MHz
Protocol ISO14443A/B, ISO15693
Chips M1 card (S50/S70), M0 (Ultralight),M3 (Desfire D40/D41/D81)
CPU_A card,CPU_B card
ICODE II,TI2048,LRI64K
Others for customization
Range 3-8cm
Iris (Optional)
Rate
Range
FAR
NFC (Optional)
Frequency 13.56MHz
Protocol ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
Chips M1 card (S50, S70), CPU card, NFC tags, etc
Range 2-4cm
Fingerprint
Module
Sensor Type
Pixel Array
Data Collection
Front Camera
External Camera (optional)
Resolution
Fps
MJPEG
RFID

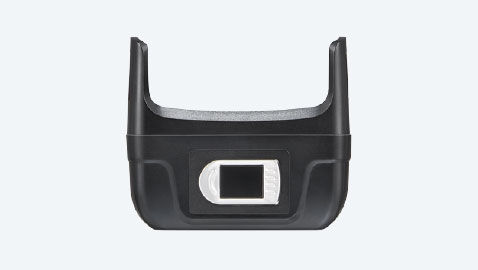

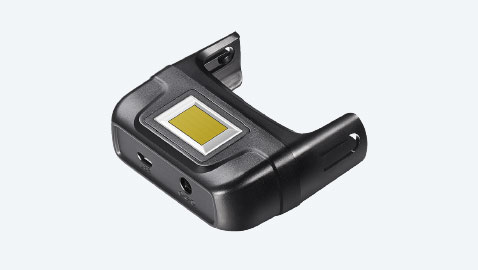

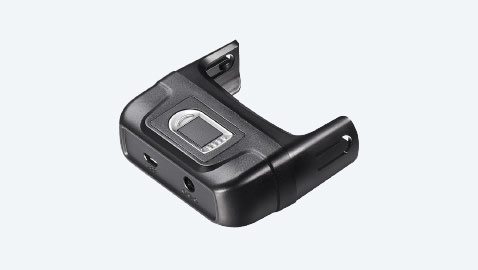

Fingerprint (Optional)
Functions Fingerprint enrollment, match, storage etc.
Sensor TCS1 / TCS2SS (Capacitive)
Image Size (pixel) TCS1: 12.8×18; TCS2SS: 10.4×14.4
Sensing Area (mm) TCS1: 256×360; TCS2SS: 208×288
Resolution (dpi) 508
Standard TCS1: FIPS, STQC; TCS2SS: ISO
HID iCLASS SE
Frequency
Chips
Protocol
OBD (Optional)
Protocol
Other Modules (Optional)
Camera 8MP Autofocus with flash
PSAM ISO7816 Protocol, 1 PSAM slot
Front Iris (Optional)
Rate
Range
FAR
HF/ NFC (Optional)
Frequency
Reading Performance
Reading Rate
Reading Range

DOWNLOADS

Softwares

APPcenter and KeyboardEmulator

2017-05-02
ZIP
Certificates

ISO9001

2017-07-14
PDF

ISO14001

2017-07-14
PDF

C4050-CCC

2017-07-14
PDF

C4050-CE

2017-11-10
PDF

C4050-RoHS

2017-07-14
PDF

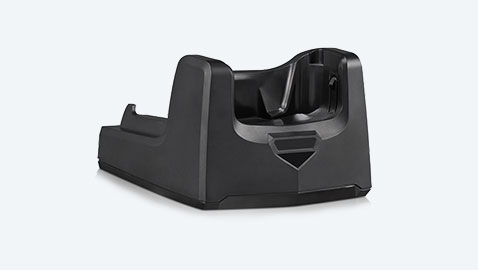

C4050 Cradle-RoHS
