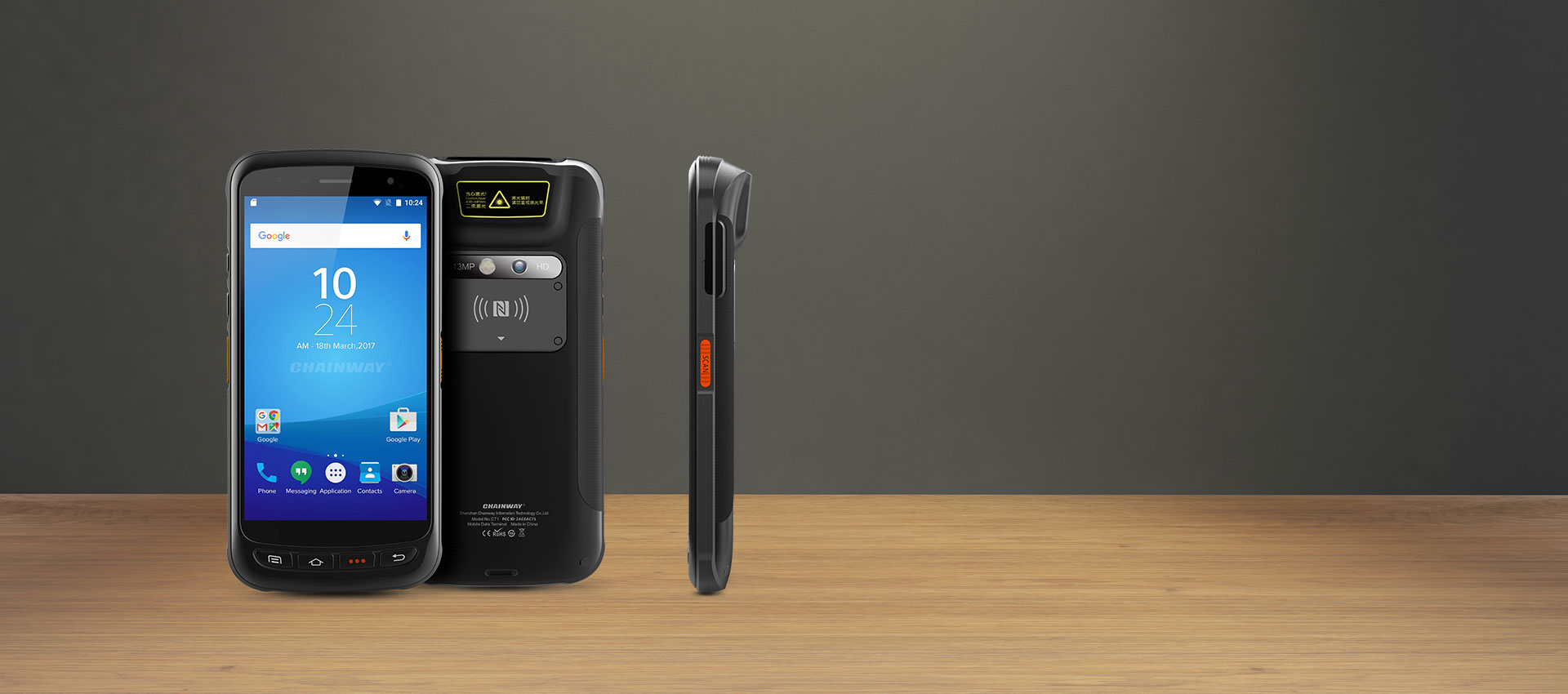

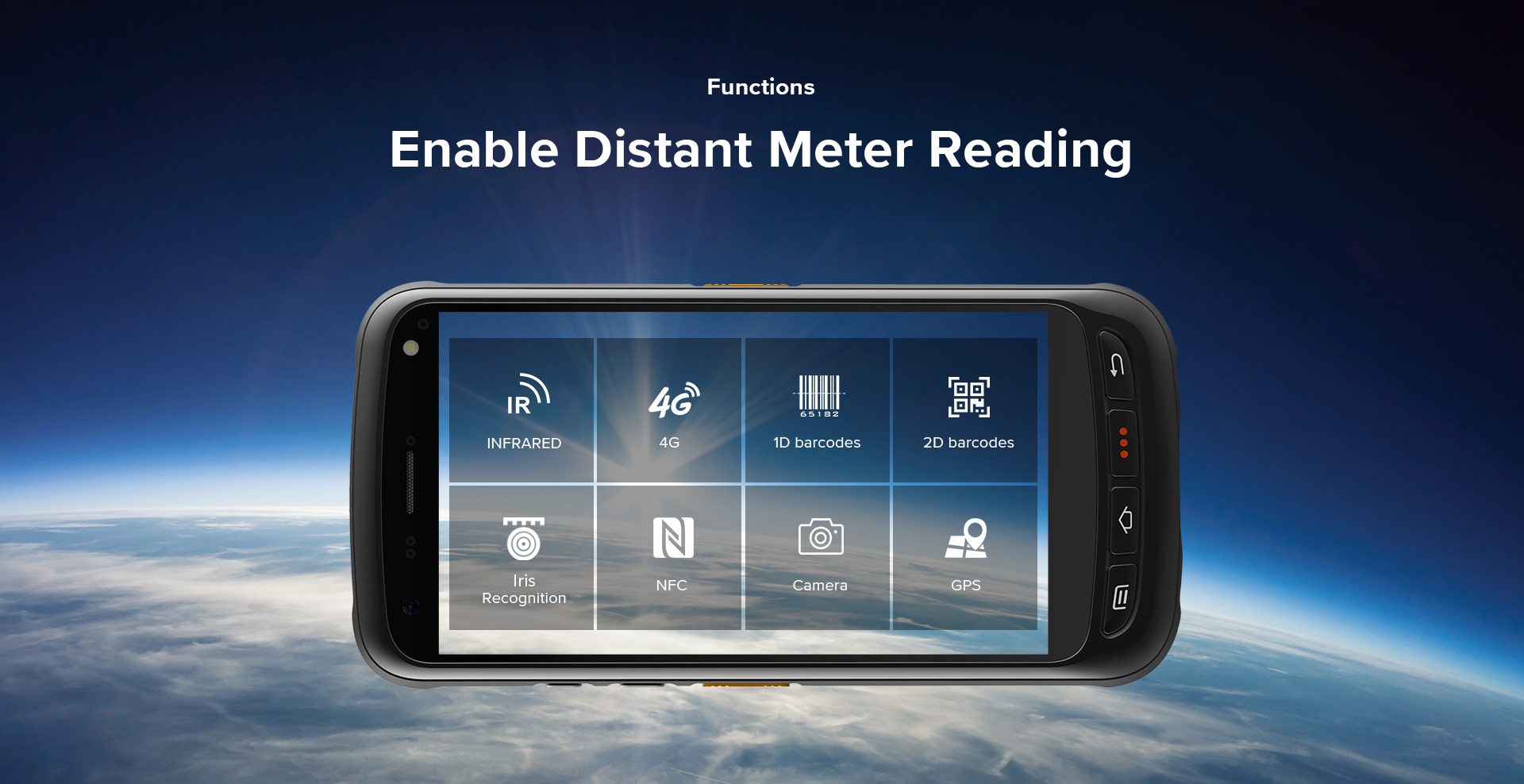

Enable Distant Meter Reading

Features
Android 6.0 OS 4G/Dual-band WIFI
5.2'' IPS 1080P Screen 5000mAh Powerful Battery

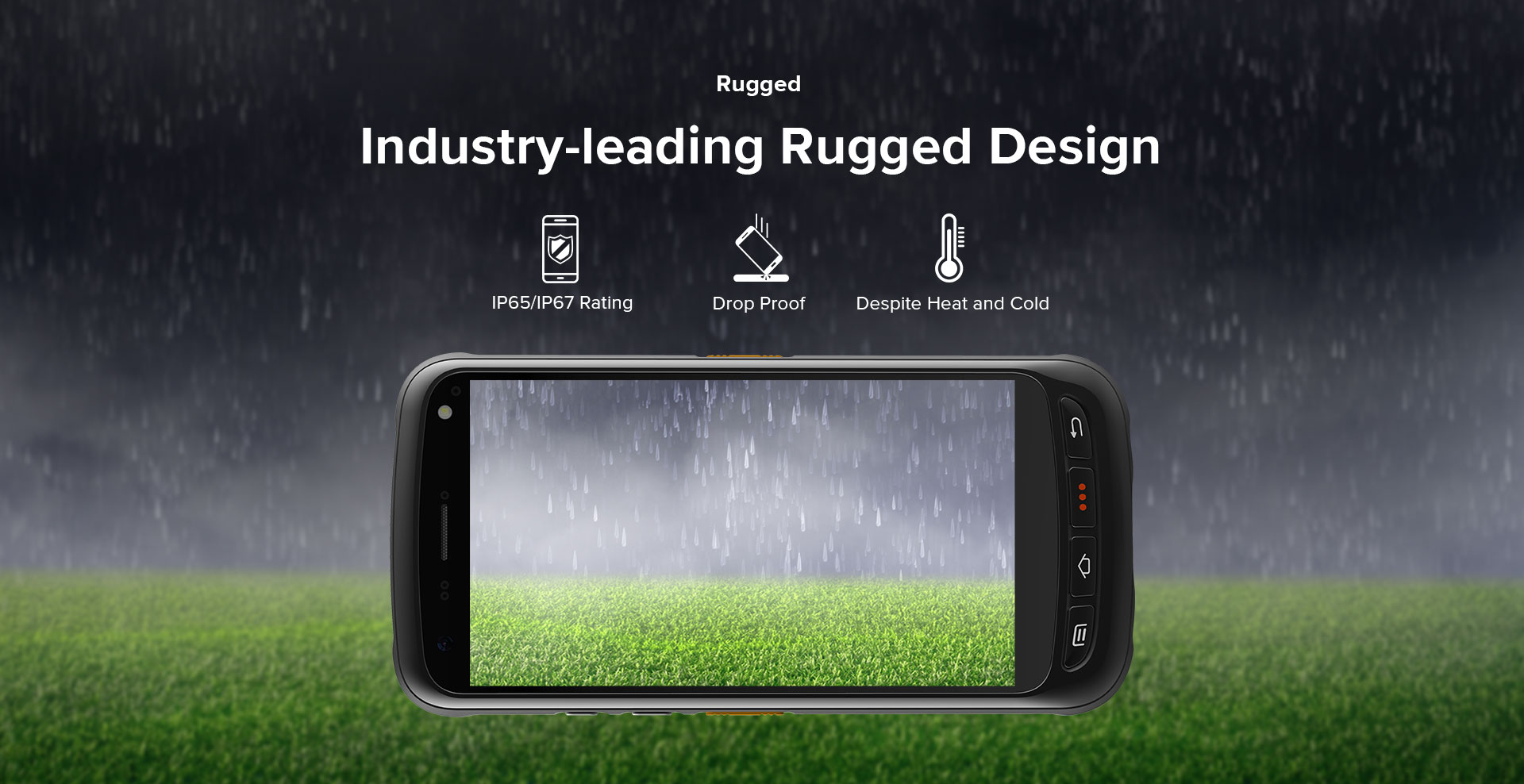

IP65/IP67 Sealing 1.8m Drop Proof
Functions
Industry-leading Scan Head NFC
InfraRed 13MP Autofocus Camera
GPS/BDS

SPECIFICATIONS

Performance Parameter
Optical system
Light Source
Image Sensor
Image (Pixels)
Field of View
Decoding Rate
Decoding Capabilities
Roll / Pitch / Yaw
Scanning speed
Print Contrast
Angle
Resolution
Depth of Field
Printing Contrast
Prompting Mode
Interface
Trigger Mode
Setting Mode
Frequency
Communication Distance
Transmission Rate
Current
Capability of Battery
Symbology Decode Capability
1-D
2-D
Decoding rate
Interfaces
Development Board
Module
Physical Characteristics
Dimensions 164.2*78.8*17mm/6.46*3.10*0.67in
Weight <284g/10.02oz

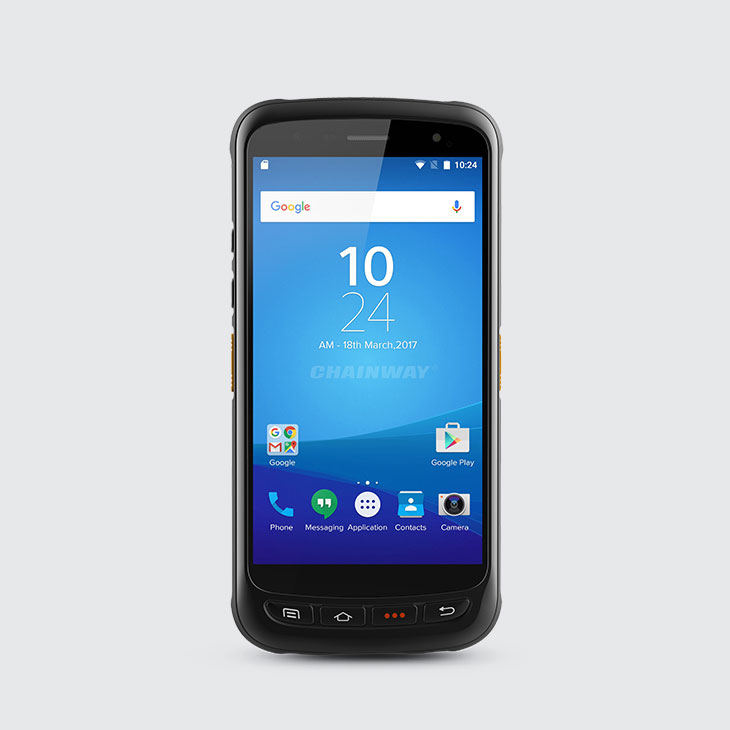

Display 5.2'' IPS FHD 1920x1080

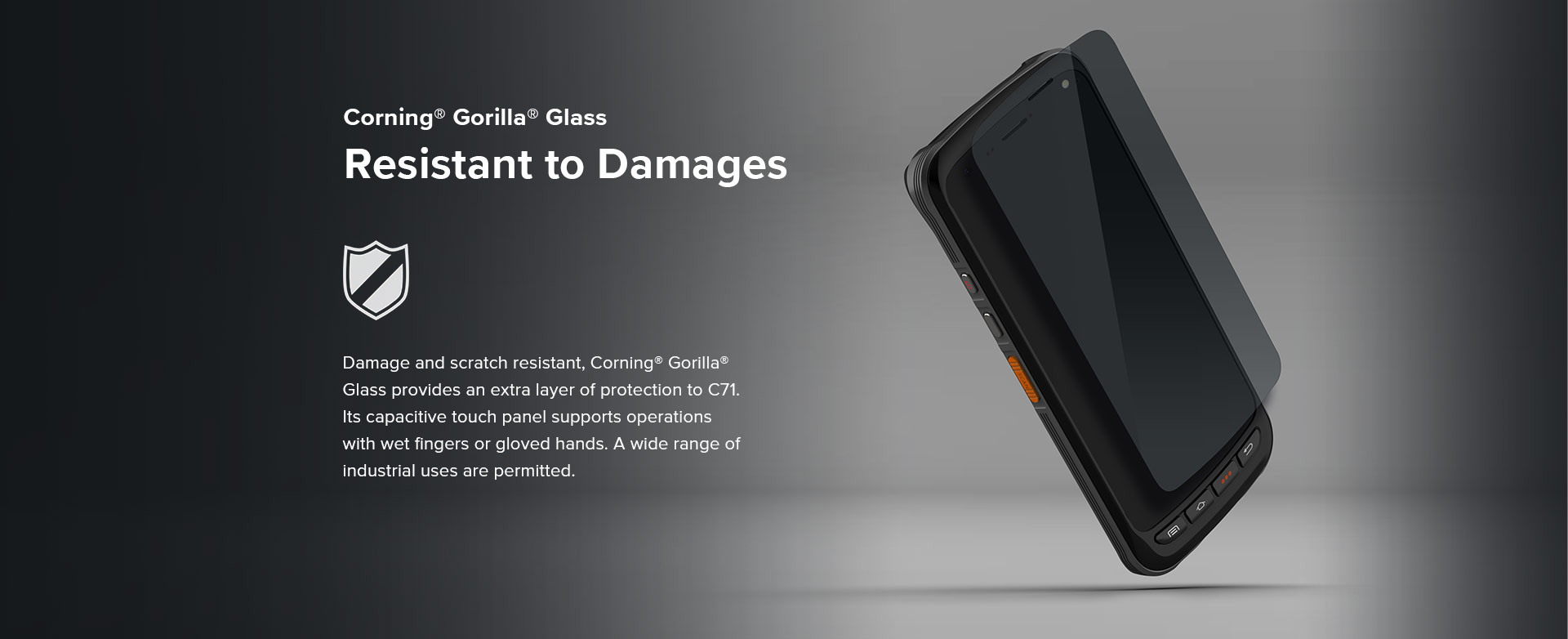

Touch Panel Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported
Power Main battery: Li-ion, rechargeable, 5000mAh
Standby: over 350 hours
Continuous use: over 12 hours (depending on user environment)
Charging time: 3-4 hours (with standard adaptor and USB cable)
Expansion Slot 1 slot for SIM card, 1 slot for SIM or TF card

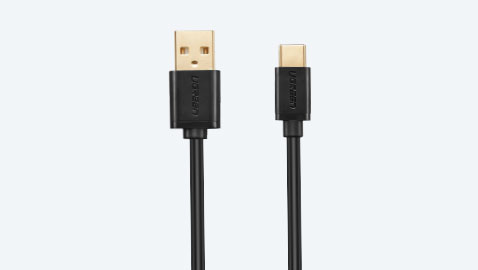

Interfaces USB 2.0 Type-C, OTG
Audio Speaker, 2 microphones
Input Mode
Keypad 4 front keys, 1 power key, 2 scan keys, 1 multifunctional key
Sensors Gravity sensor, light sensor, proximity sensor, vibration motor
Pupil Lamp
Voltage and Current
Material

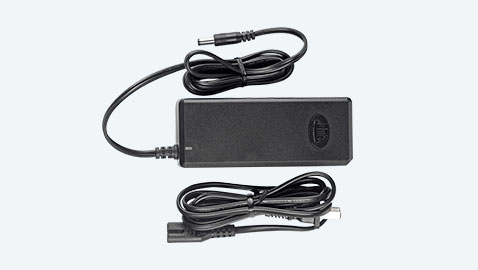

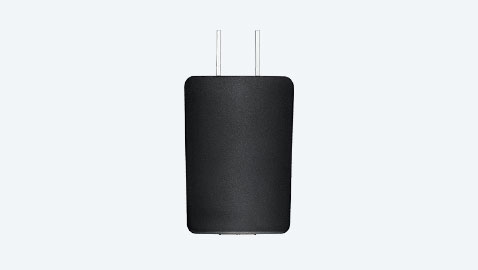

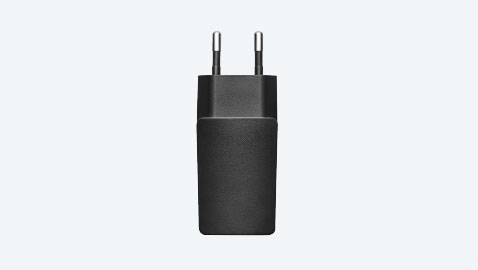

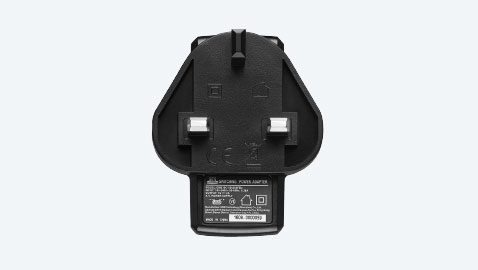

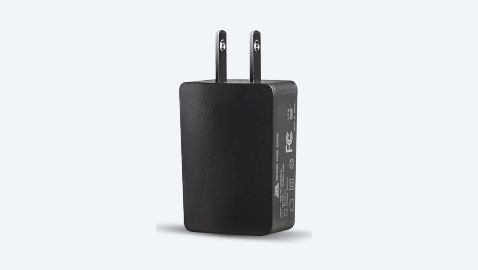

AC Adapter
RFID Features
RF Chip
Air Interface Protocol
Working Frequency
Output Power
Output Power Flatness
Antenna Interface
Regions Supported
Receive Sensitivity
Tag RSSI
Antenna Detector
Ambient Temp Monitor
Working Mode
Communication Interface
Connector
Host Communication
Power Supply
Input Voltage
Power Consumption in RF Output Mode
Power Consumption in Standby Mode(EN high TTL level)
Power Consumption in Power Down Mode(EN low TTL level)
User Environment
Input Voltage

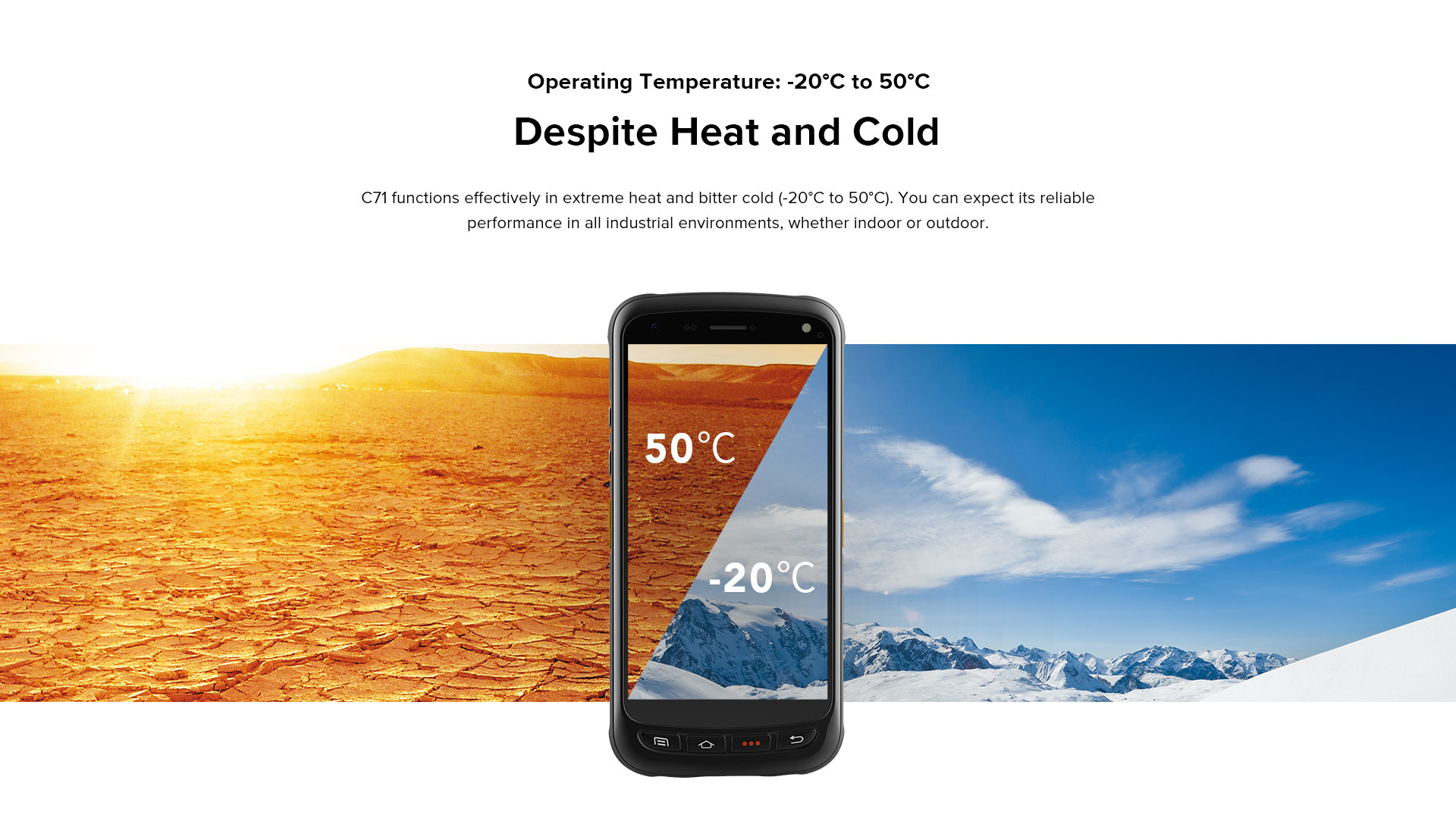

Operating Temp. 4°F to 122°F / -20°C to 50°C
Storage Temp. -40°F to 158°F / -40°C to 70°C
Humidity 5% RH - 95% RH non condensing
Luminance of environment
Drop Specification Multiple 1.8m/5.9ft drops (at least 20 times) to the concrete across the operating temperature range
Tumble Specification 1000 x 0.5m/1.6ft falls at room temperature
Ambient Light Immunity

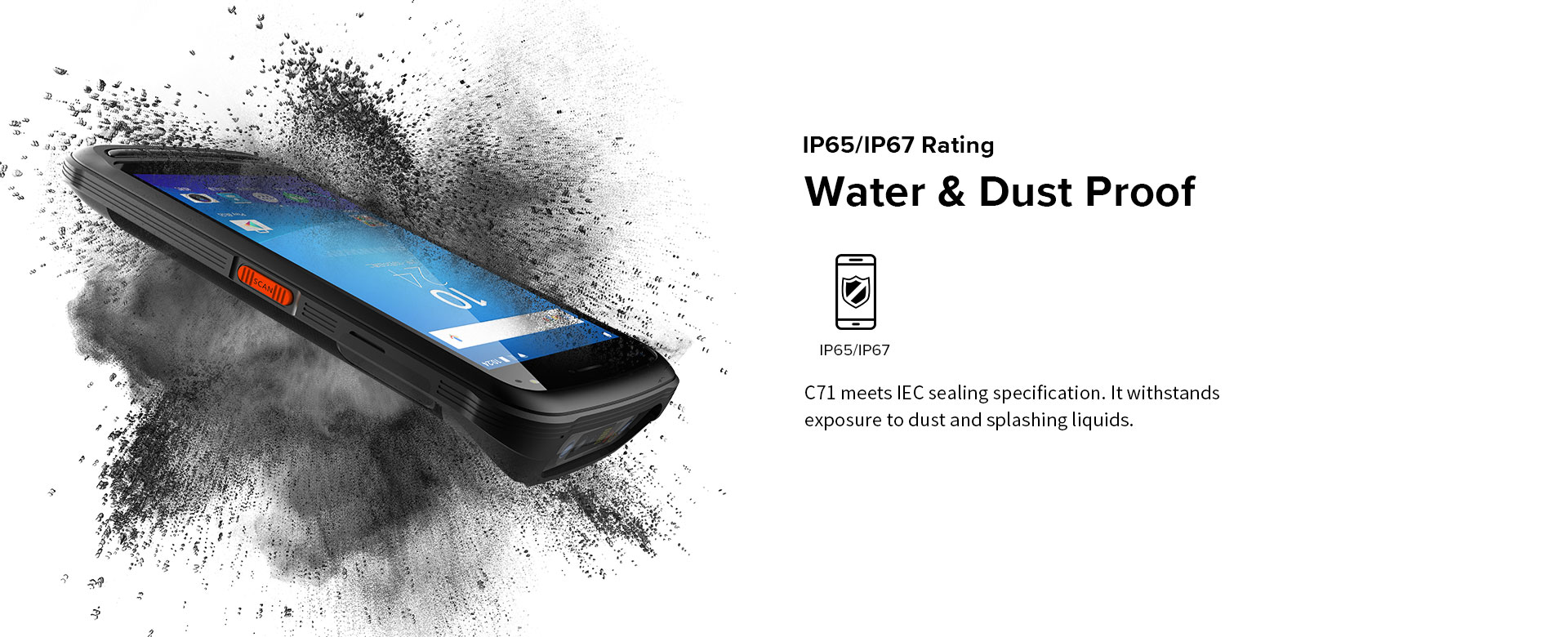

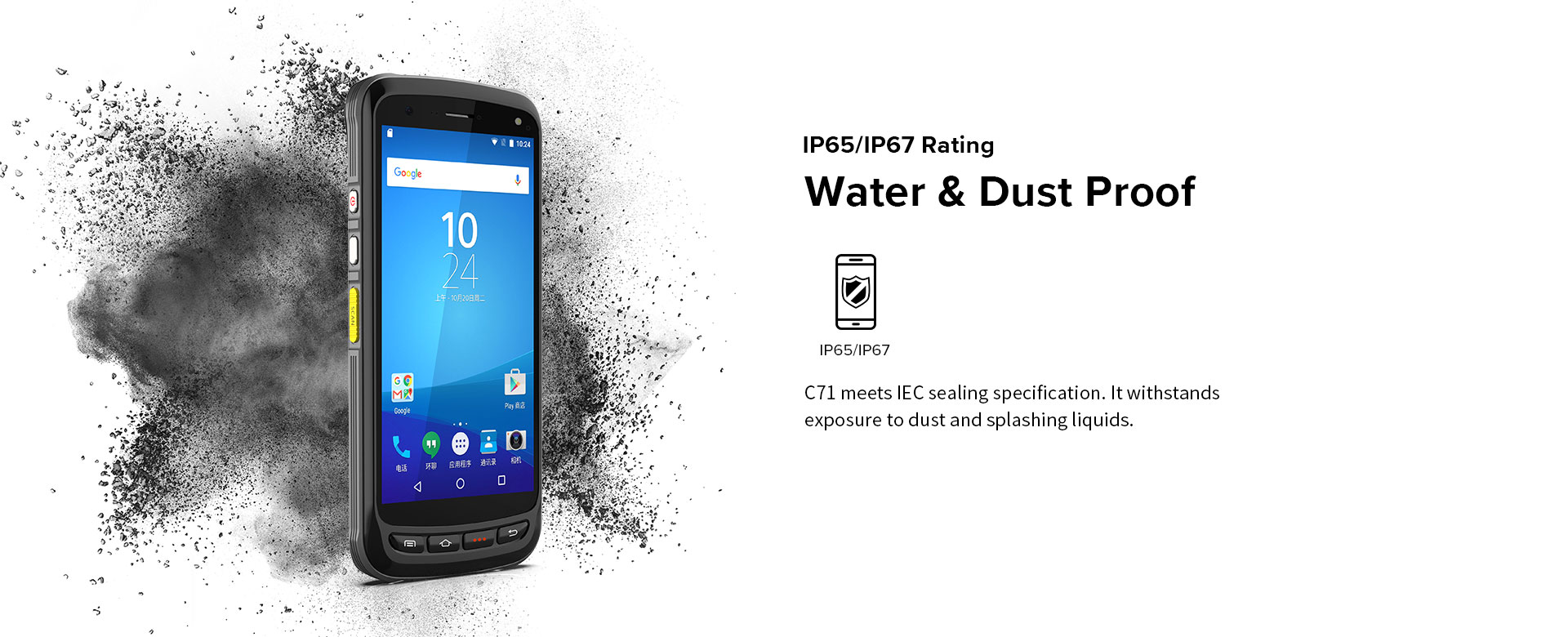

Sealing IP65/IP67 per IEC sealing specifications
ESD ±8KV air discharge, ±4KV conductive discharge

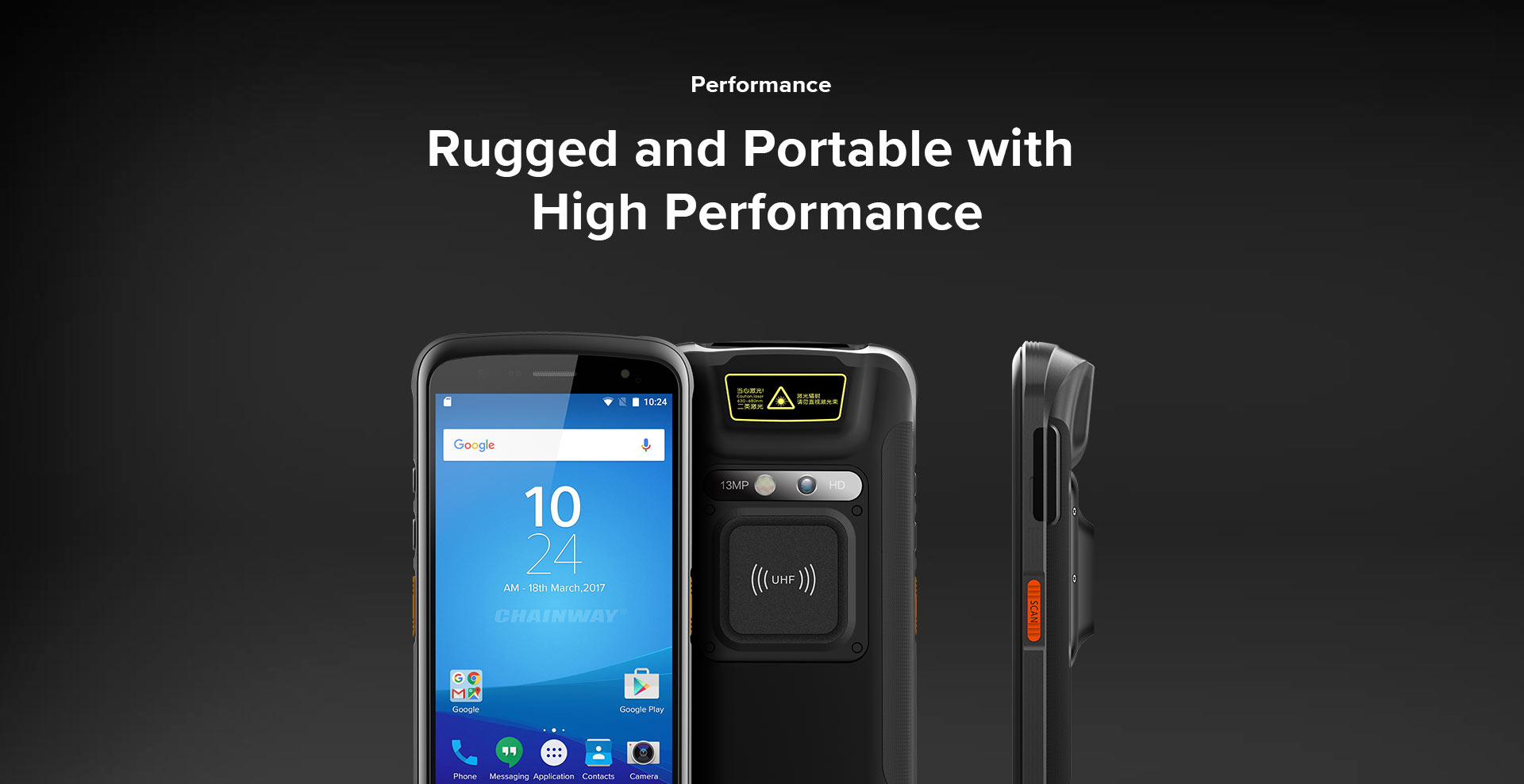

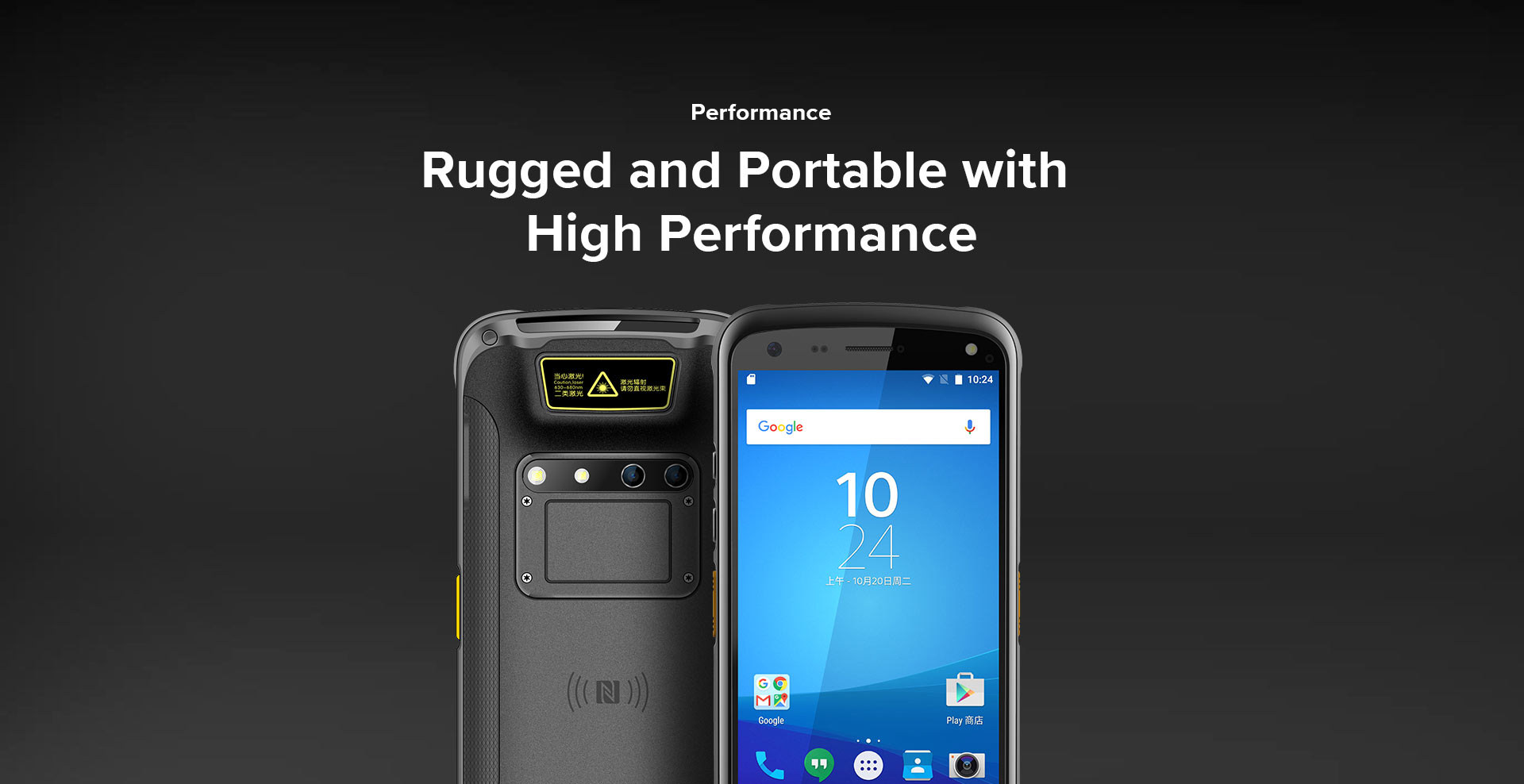

Performance
CPU(1)
CPU Cortex-A53 Quad-core 1.3GHz
RAM+ROM(1)
Option 1
Option 2
CPU(2)

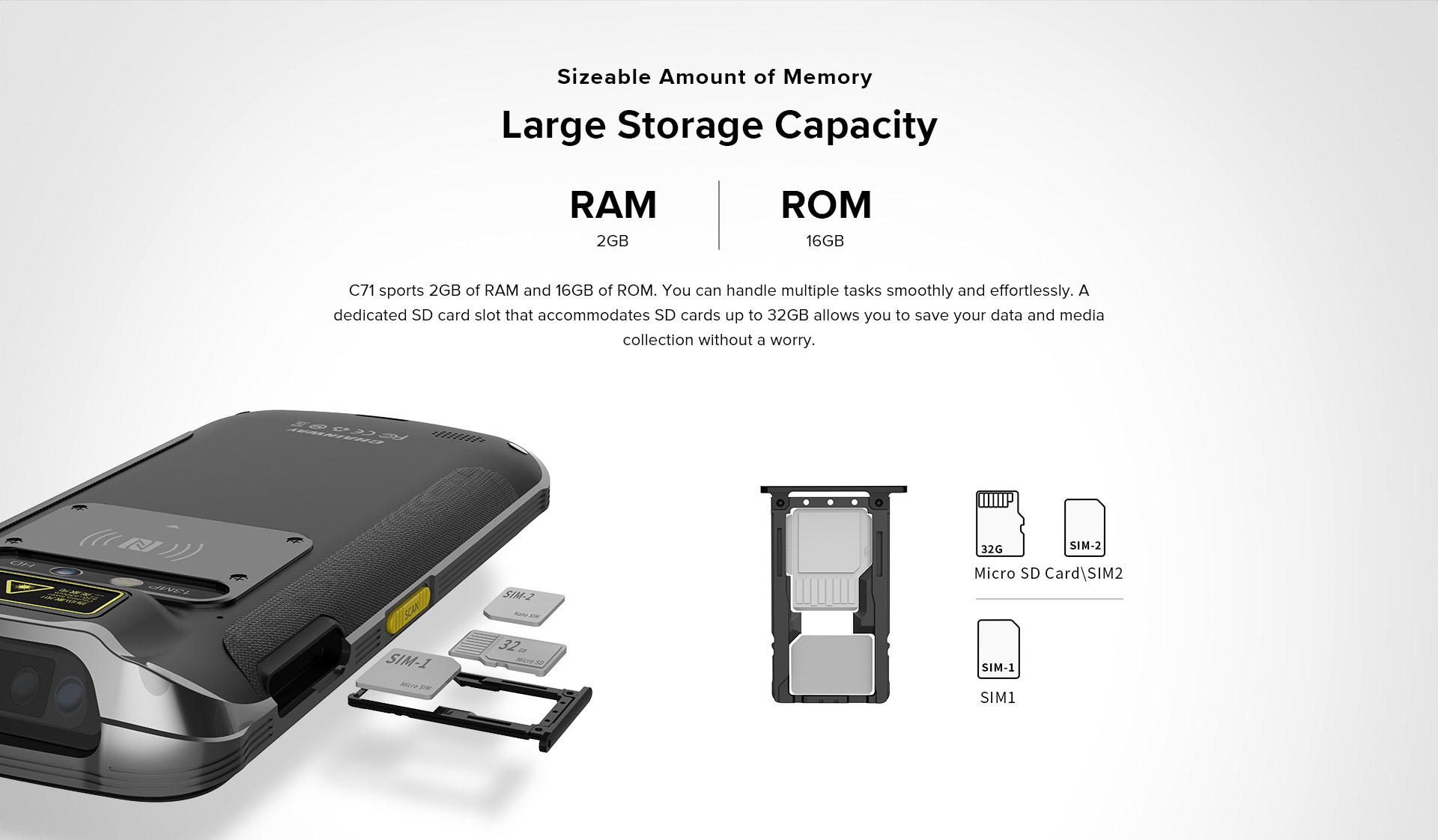

RAM+ROM 2GB+16GB
High-level Configuration
Low-level Configuration
RAM+ROM(2)
RAM+ROM
Expansion Supports up to 32 GB Micro SD card
Developing Environment
Operating System Android 6.0
SDK Chainway Software Development Kit
Language Java
Tool Eclipse / Android Studio
Communication
WLAN IEEE802.11 a/b/g/n, 2.4G/5G dual-band, internal antenna
WWAN (Optional)
WWAN
WWAN (Europe) 2G: 850/900/1800/1900MHz
3G: 850/900/1900/2100MHz
4G: B1, B3, B5, B7, B8, B20, B40
WWAN (America) 2G: 850/900/1800/1900MHz
3G: 850/900/1700/1900MHz
4G: B2, B4, B7, B12, B17
WWAN (China) 2G: 900/1800MHz
3G: 900/1900/2000/2100MHz
4G: B1, B3, B5, B38, B39, B40, B41
WWAN (Others) Depending on the country's ISP
Bluetooth Bluetooth 4.0, BLE
GPS

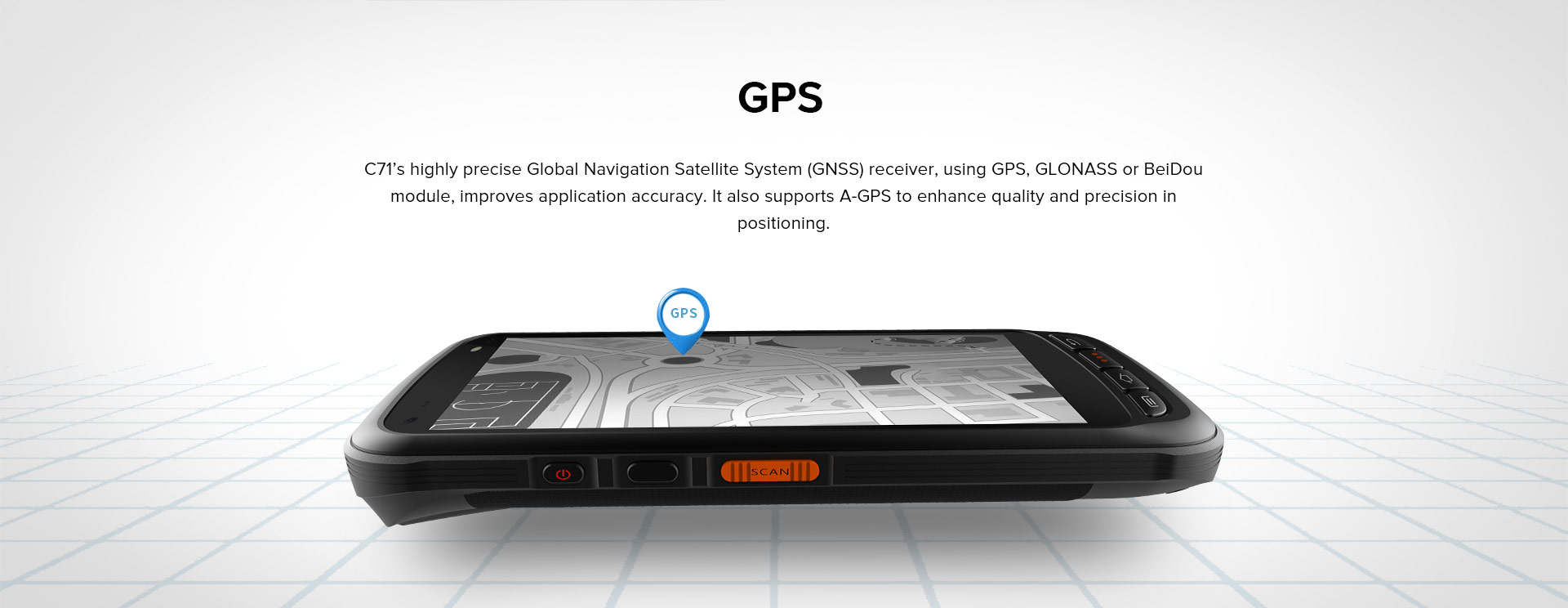

GNSS GPS/AGPS, GLONASS, BeiDou, internal antenna
GPS (Optional)
GNSS(Optional)
Fingerprint
Functions
Memory
Sensor
Image Size (pixel)
Sensing Area (mm)
Resolution (dpi)
Standard
Formats
Certifications
Format Extraction
Security
Fake Finger Detection
Module
Sensor Type
Pixel Array
Note
UHF RFID
Frequency
Protocol
Antenna
Power
R/W ranges
Reading rates (circular polarization)
Note
Note2
PSAM
Protocol
Slots
Note

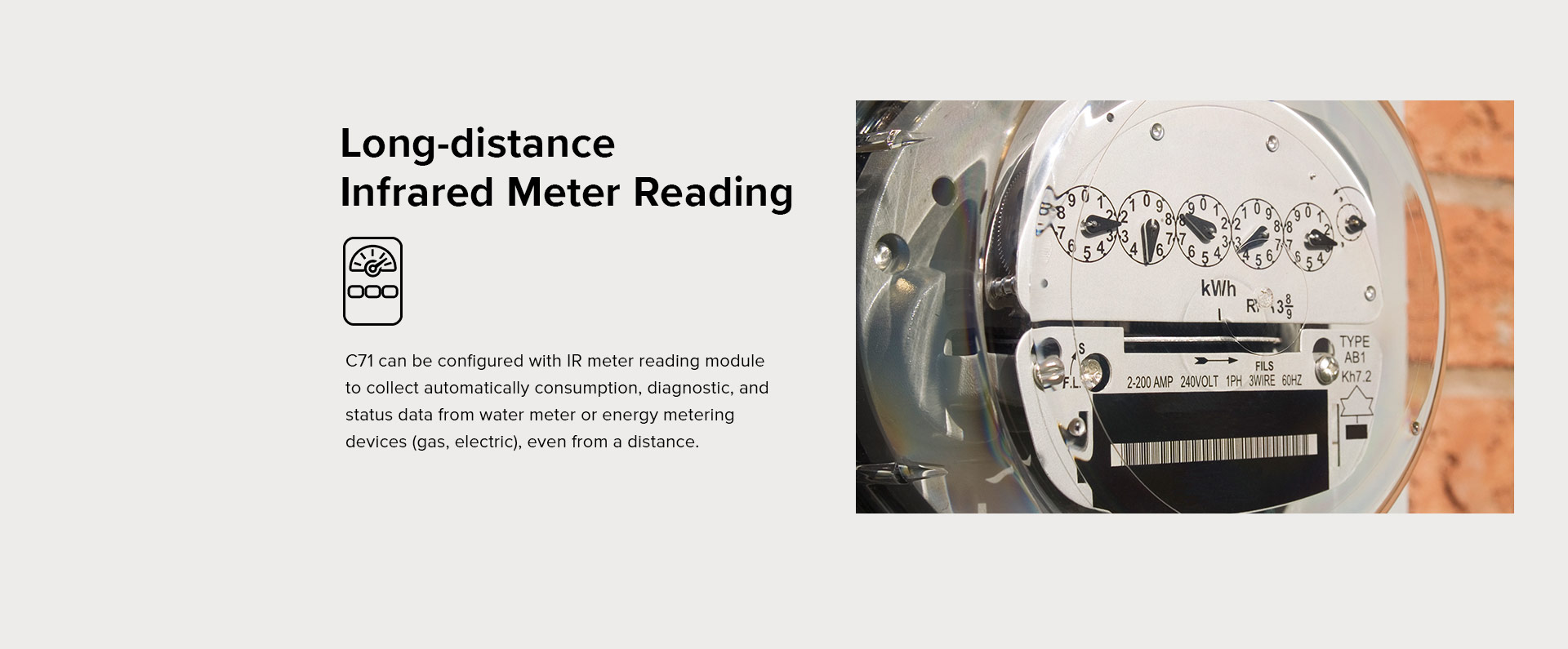

InfraRed
Wavelength 940nm
Frequency 38kHz
Range > 4m
Protocol DLT_645-2007, DLT_645-1997
Note

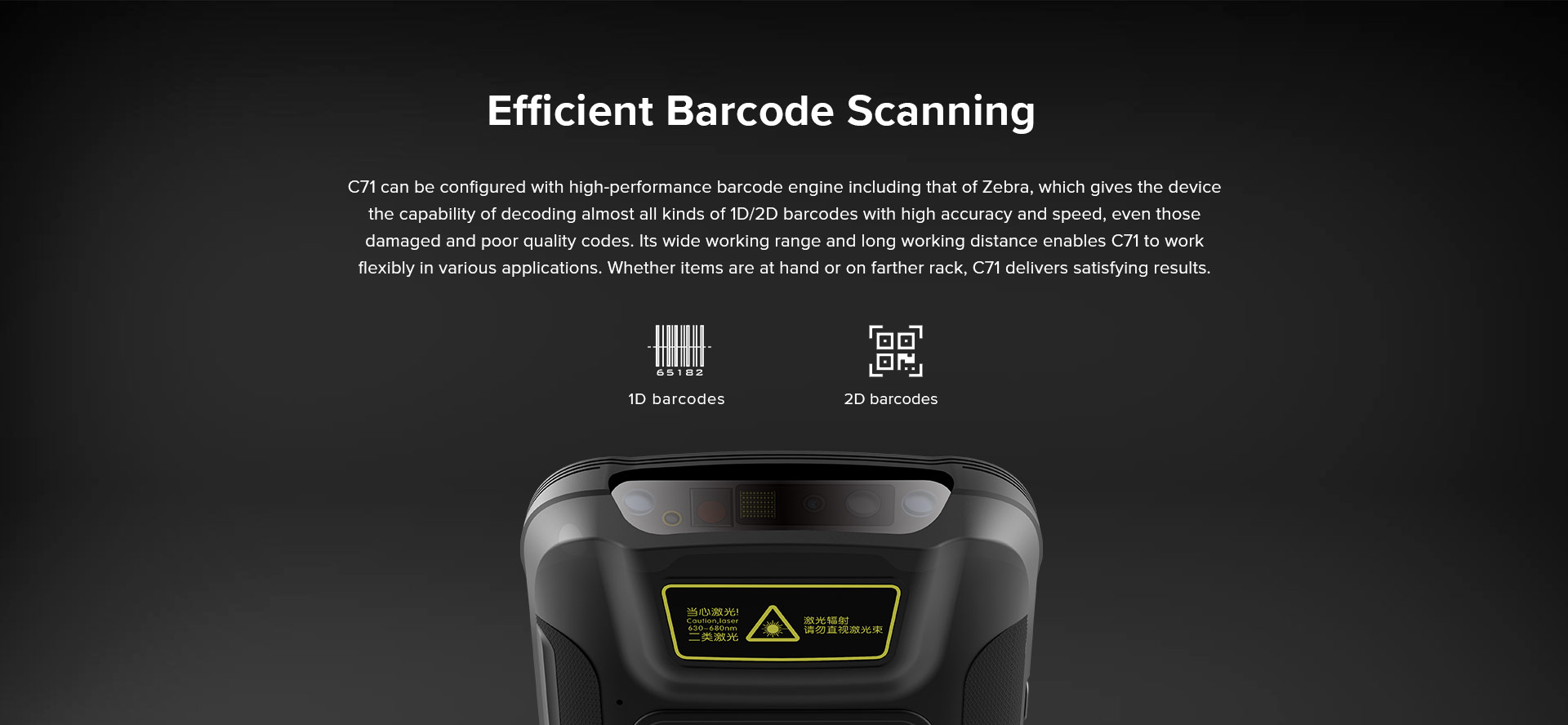

Barcode Scanning
1D Linear Scanner
2D Imager Scanner Zebra SE4710
Scan engine
1D Symbologies UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
2D Symbologies PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.
Note *This function is optional
Note2
LF RFID
Frequency
Protocol
Chips
Range
Note

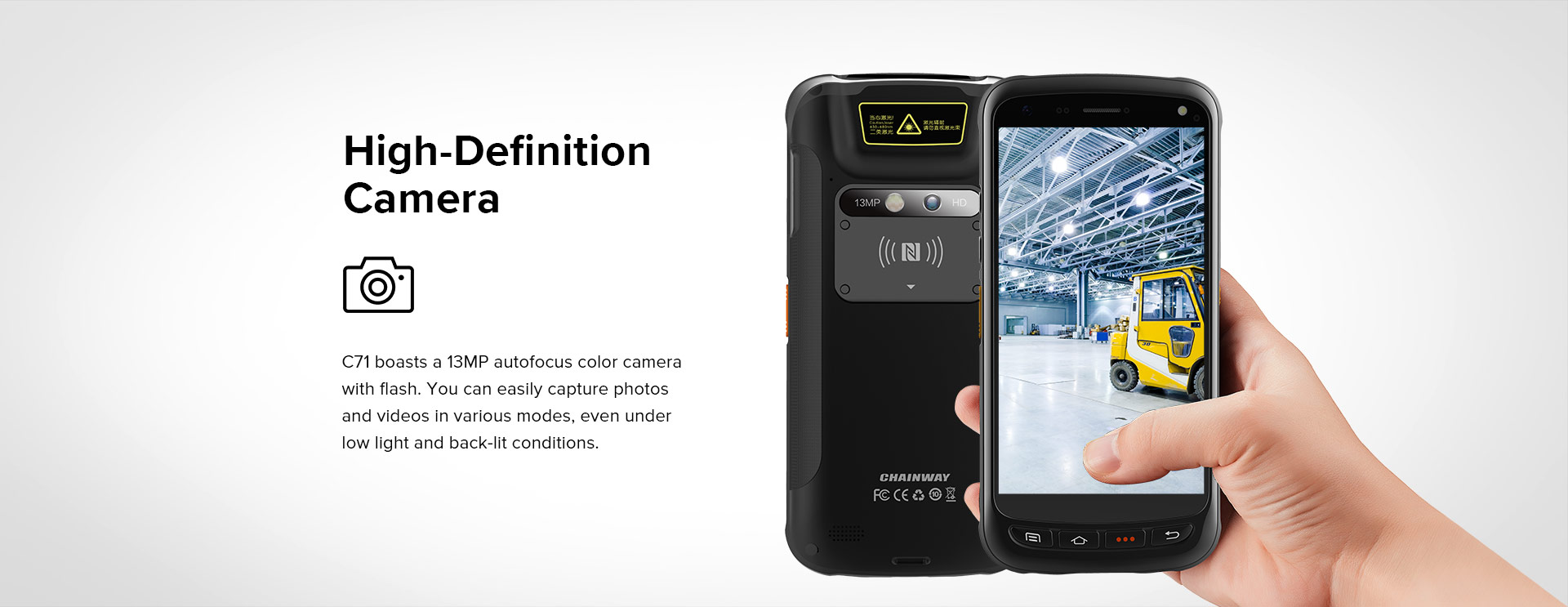

Camera
Camera 13MP autofocus rear camera with flash, optional 5MP front camera
Front Camera
Top Camera
External Camera (optional)
Note
Note2
Thermal Printer
Rate (mm/s)
Image Size (pixel)
Paper Width (mm)

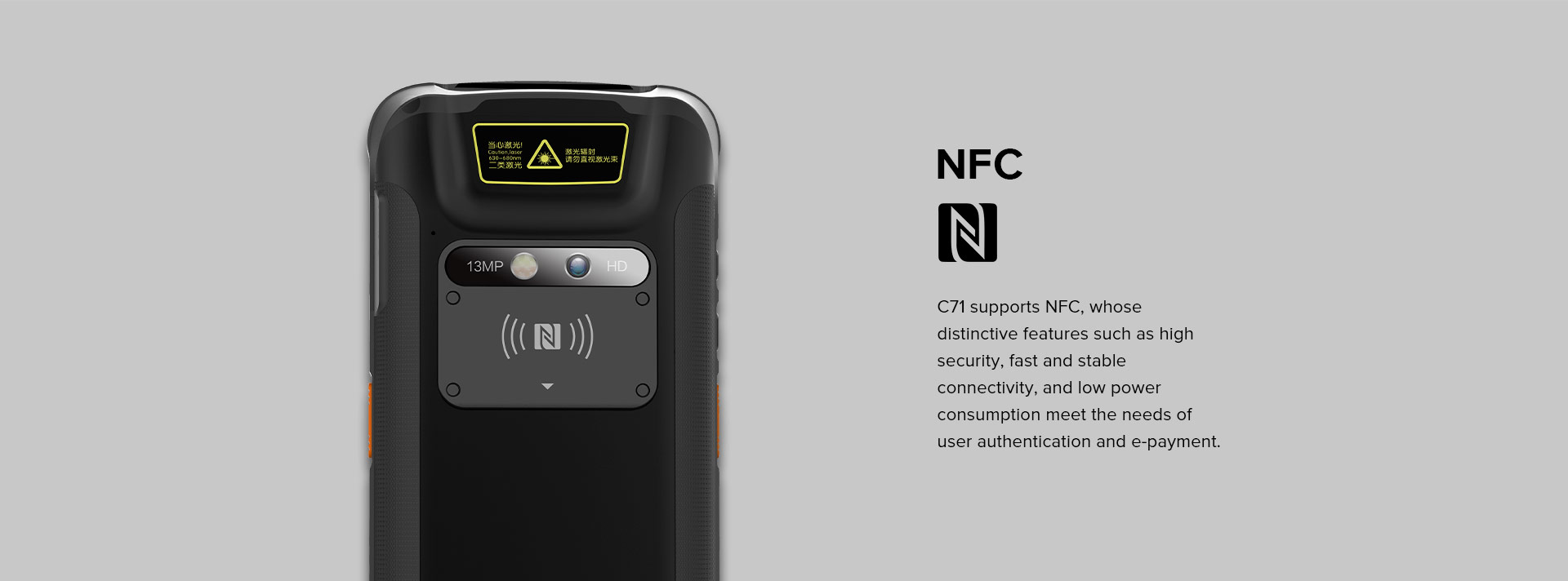

NFC
Frequency 13.56MHz
Protocol ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
Chips M1 card (S50, S70), CPU card, NFC tags, etc
Range 2-4cm
Remark
Note
Note2
LF RFID (with external antenna)
Frequency
Protocol
Chips
Range
Note
HF RFID
HF
Frequency
Protocol
Chips
Range
Note
Note2
Iris Recognition
Rate
Range
FAR
Note
Note2
HID iCLASS SE
Frequency
Chips
Protocol
OBD
Protocol
Reading Performance
Reading Rate
Reading Range
