How to Implement RFID in Library Management: A Complete Guide Using Chainway RFID Devices


Introduction

Managing a library with thousands or even hundreds of thousands of books can be a challenging task. Libraries need to maintain accurate inventory records, manage book issuance and returns, locate misplaced books, conduct periodic stock verification, and ensure that books are available when readers need them.
Traditional barcode-based library management systems have improved many of these processes, but they often require books to be scanned individually. This can make inventory audits and large-scale book tracking time-consuming.
Radio Frequency Identification (RFID) technology offers a smarter approach to library management. By attaching RFID tags to books and connecting RFID readers with library management software, libraries can identify multiple books quickly, automate circulation workflows, and improve inventory accuracy.
Chainway offers a range of RFID devices that can support different stages of library operations, including the R3 Desktop RFID Reader, URA4 Fixed RFID Reader, and C5 Handheld RFID Reader. When integrated with a suitable library management system, these devices can help create an efficient, connected, and scalable RFID-enabled library.

What Is RFID-Based Library Management?
RFID-based library management uses radio-frequency identification technology to identify and track books, journals, magazines, research documents, and other library assets.
Each book is fitted with an RFID tag containing a unique identifier. The identifier is linked to the book's catalogue record in the library database.
When an RFID reader detects a tag, the system can retrieve the associated book information and process an appropriate action, such as checking a book out, recording its return, or updating inventory records.
Unlike traditional barcode scanning, UHF RFID can identify multiple tagged books within a reader's effective field at the same time, depending on tag placement, reader configuration, and the surrounding environment.

Key components of an RFID library system
An RFID-enabled library typically consists of:
  • RFID tags: Attached to books and linked to unique catalogue records.
  • RFID readers: Used to identify books during checkout, returns, inventory audits, and searches.
  • RFID antennas: Used with fixed readers to establish the required reading zones.
  • Library management software: Maintains book records, member details, issue and return transactions, and inventory information.
  • Integration layer: Connects RFID hardware with the library database and circulation workflows.
  • Network infrastructure: Transfers reader events and transaction data to the application or server.

How Chainway RFID Devices Support Library Management
A successful implementation uses different readers for different operational requirements rather than relying on a single device for every task.

1. Chainway R3 Desktop RFID Reader for Book Issue and Return

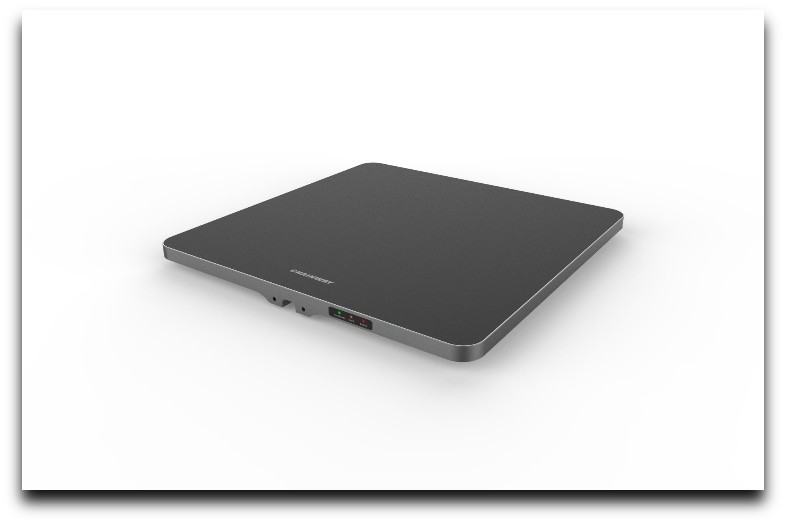

The Chainway R3 Desktop RFID Reader is designed for short-range desktop RFID applications. It supports USB Type-C and Bluetooth communication and can work with compatible Windows, Android, and iOS applications.
In a library, the R3 can be deployed at the librarian's desk for controlled book identification during issue, return, and other circulation activities.
How the R3 can be used:
  • Identify RFID-tagged books placed on the reader.
  • Read multiple books presented together, subject to tag and reader configuration.
  • Support book issue and return workflows through integrated software.
  • Help reduce repetitive manual barcode scanning.
  • Support RFID tag reading and writing where required by the application.

Example: A student returns three books to the library. The librarian places the books on the R3 reader. The integrated application identifies their RFID tag IDs, retrieves the book records, and displays the relevant details. After checking the member account and due-date rules, the software records the returns and updates the books' availability.
The reader identifies the tags; the library software performs the circulation transaction.

2. Chainway URA4 Fixed RFID Reader for Automated Reading Zones

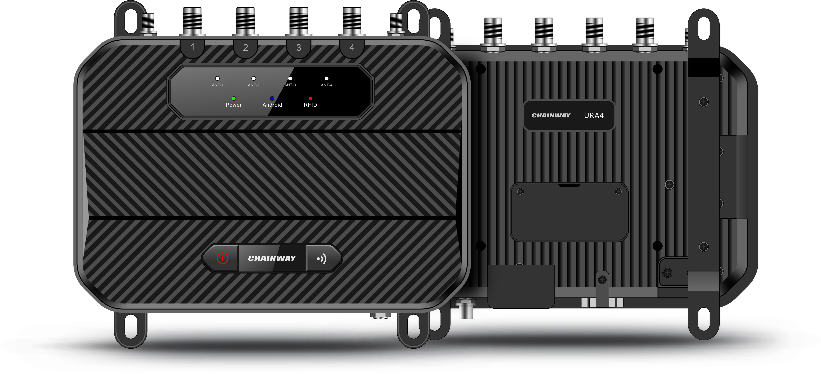

The Chainway URA4 Fixed RFID Reader is a four-channel fixed UHF RFID reader based on Android 13, with Impinj E Series RFID technology and support for Impinj Gen2X. It supports interfaces including RJ45, RS232, USB, and HDMI, and is compatible with suitable external antennas.
Its multiple antenna ports make it useful for installations requiring RFID reading across defined areas.
Potential library applications include:
  • Monitoring RFID-tagged books passing through configured reading zones.
  • Supporting automated book-return or collection-handling workflows.
  • Reading tagged books on library sorting or processing shelves.
  • Detecting books within configured return or transfer areas.
  • Supporting specialised security or movement-monitoring systems when integrated with suitable antennas, sensors, and application logic.

Example: A library establishes an RFID reading zone near a book-return processing area. Antennas connected to the URA4 detect tags within the configured zone. The application receives the reader events and processes them according to the workflow, such as recording a return candidate or updating a collection-handling record.
A fixed reader does not independently determine whether a book has been legally issued or stolen. Those decisions require integration with circulation records and, where needed, dedicated security gates or other detection infrastructure.

3. Chainway C5 Handheld RFID Reader for Inventory and Book Finding

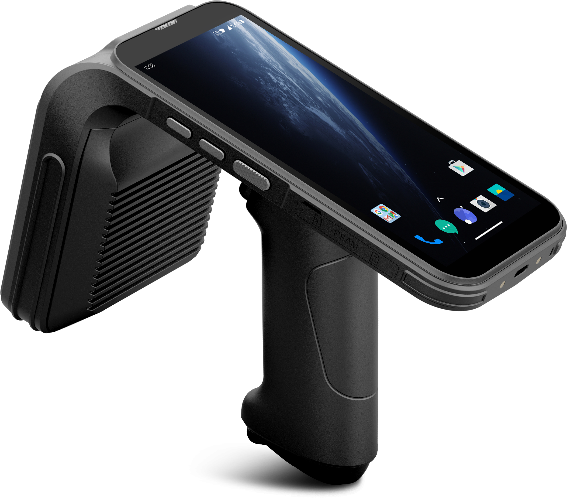

The Chainway C5 Handheld RFID Reader is an integrated Android handheld UHF RFID device designed for mobile data collection. It supports Impinj Gen2X, with barcode scanning and other data-capture functions available depending on the configuration.
Its portable design makes it suitable for librarians who need to scan books across shelves, stacks, storage areas, and archive rooms.
How the C5 can help:
  • Conduct inventory audits without removing every book from the shelf.
  • Identify books that are missing from their expected shelf or collection.
  • Search for a specific book using its RFID identifier.
  • Verify books on shelves against the library database.
  • Locate misplaced books and identify stock discrepancies.
  • Support periodic stock-taking in large libraries and archives.


Complete Step-by-Step Process to Implement RFID in a Library
An RFID project should be planned as a combination of hardware, software, tagging, database integration, and operational procedures. The following process provides a practical implementation roadmap.

Step 1: Assess the Existing Library System
Begin by studying the current library infrastructure and workflows.
Identify:
  • Total number of books, journals, magazines, and other assets.
  • Number of library branches, floors, sections, and storage rooms.
  • Existing barcode or catalogue identification system.
  • Current library management software and its integration capabilities.
  • Daily book issue and return volumes.
  • Time required for stock verification.
  • Common inventory problems, including misplaced and missing books.
  • Security requirements and budget constraints.
This assessment determines the appropriate combination of desktop, handheld, and fixed RFID readers.

Step 2: Prepare and Clean the Book Database
Before tagging begins, ensure that the existing catalogue records are accurate and consistent.

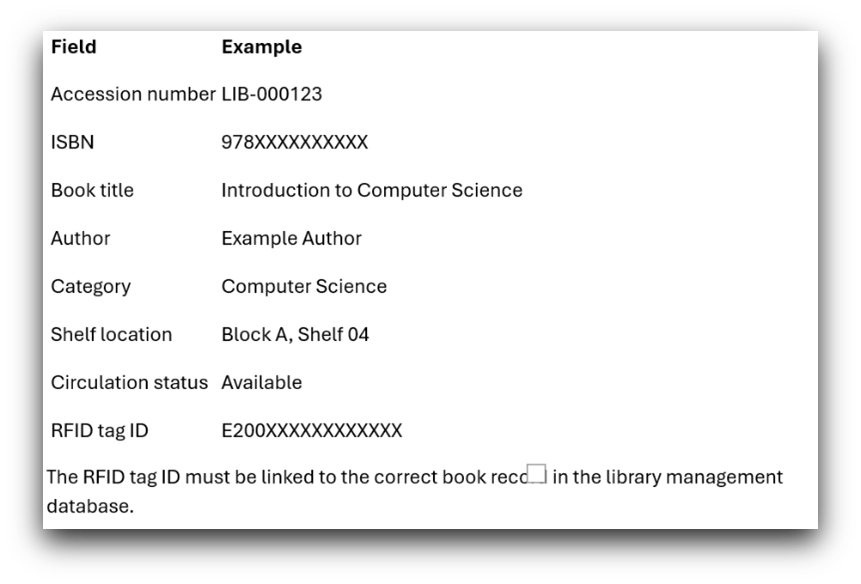

Each book should have a reliable catalogue record containing fields such as:

Step 3: Select Suitable RFID Tags
Choose RFID tags designed for books and library applications.
For a typical UHF RFID implementation, select tags compatible with the readers and the applicable regional frequency band. In India, the selected equipment and tags should comply with the applicable Indian UHF RFID frequency and regulatory requirements.
During tag selection, evaluate:
  • Read performance when books are stacked closely together.
  • Tag dimensions and placement.
  • Adhesive quality and long-term durability.
  • Compatibility with the selected readers.
  • Resistance to accidental damage during regular handling.
  • Performance near book covers, metallic shelving, or other challenging materials.
The tag should be placed in a consistent location that avoids unnecessary interference and supports repeatable reading.

Step 4: Encode and Register RFID Tags
Once the tags are selected, each tag must be associated with the correct catalogue record.
A recommended workflow is:
  1. Retrieve the book's accession number or unique catalogue ID.
  2. Read the new RFID tag using a compatible encoder or reader.
  3. Assign or confirm a unique tag identifier.
  4. Write the required data to the tag if the chosen tag and workflow require it.
  5. Save the tag-to-book mapping in the database.
  6. Verify that the tag reads correctly and is linked to the right book.

Step 5: Install the Chainway R3 at the Circulation Desk
The R3 can be installed at a librarian's workstation for book issue and return activities.
The implementation team should:
  1. Connect the R3 to a compatible computer or application device through USB or Bluetooth.
  2. Install or configure the required device integration software.
  3. Map the reader output to the library application's RFID input.
  4. Configure the application to retrieve book records by tag ID.
  5. Set up issue, return, renewal, and error-handling workflows.
  6. Test single-book and multiple-book reading under normal operating conditions.
When a member checks out a book, the application should validate the member's account, confirm that the book can be issued, apply loan rules, and record the transaction.
For returns, the application should identify the book, verify the current circulation record, and update its status after the return transaction is accepted.

Step 6: Install the URA4 Fixed Reader and Antennas
Where the library needs automated reading in a defined area, the URA4 can be installed with suitable external antennas.
The installation process includes:
  1. Identify the reading zone, such as a return-processing area or book-handling station.
  2. Select appropriate antennas based on the area, orientation, and expected tag positions.
  3. Mount the antennas and connect them to the URA4's available ports.
  4. Configure reader power and antenna settings for the required reading coverage.
  5. Connect the reader to the application using the supported interface.
  6. Configure event-processing rules for the specific workflow.
  7. Test reads from the intended zone and check for unintended reads outside it.
A multi-antenna setup can help cover different orientations or parts of a reading area. However, antenna placement and power must be tuned to avoid missed reads and unwanted detection of nearby books.

Step 7: Configure the C5 for Inventory Audits and Book Finding
The C5 can be configured with an inventory or shelf-verification application.
The recommended workflow is:
  1. Download the expected inventory list from the library database.
  2. Load or synchronise the list with the handheld application.
  3. Select the library section or shelf to be audited.
  4. Scan the tagged books with the C5.
  5. Compare the detected RFID IDs with the expected list.
  6. Generate reports for matched, missing, unexpected, or duplicate records.
  7. Investigate discrepancies and update the database only after verification.

Step 8: Integrate All Readers With the Library Management Software
Hardware installation is only one part of the project. The RFID readers must communicate with the library management system so that the physical movement of books is reflected in the digital records.
The integration architecture can be structured as follows:
RFID tags → Chainway readers → Integration application or service → Library management system → Reports and user interface
The integration layer should handle:
  • RFID tag identification and catalogue lookup.
  • Reader-event processing and duplicate-read filtering.
  • Member and circulation validation.
  • Issue, return, and renewal transactions.
  • Inventory reconciliation and discrepancy reporting.
  • Reader status, error logging, and connectivity monitoring.
  • User permissions and audit trails.
The Chainway R3 and C5 support application development across compatible platforms, and the URA4 provides an Android-based development environment. The exact integration method depends on the reader model, its SDK, the selected configuration, and the library software.

Step 9: Configure RFID-Based Book Circulation
After the integration is complete, configure the operational rules for library circulation.
Book issue process
  1. Identify the member through the library's existing membership process.
  2. Read the RFID tag of the book using the R3 or another configured reader.
  3. Retrieve the book record from the database.
  4. Check availability, member eligibility, and loan rules.
  5. Confirm the transaction.
  6. Update the circulation record and issue date.
  7. Display or print a confirmation if required.
Book return process
  1. Read the RFID tag of the returned book.
  2. Retrieve the active loan record.
  3. Validate the return and calculate any applicable overdue charges.
  4. Record the return transaction.
  5. Update the book's circulation status.
  6. Route the book for reshelving or further processing.
For larger libraries, fixed reading zones may support additional workflow automation, provided that the application can distinguish a valid return event from a simple tag detection.

Step 10: Implement Inventory Verification and Book Location
Inventory verification is one of the most valuable applications of handheld RFID.
The library management software should maintain an expected list of books for each collection or shelf. During an audit, the C5 reads RFID tags and compares the detected identifiers with that list.
The resulting report can classify books as:
  • Matched: Expected and detected.
  • Missing: Expected but not detected.
  • Unexpected: Detected but not assigned to the selected inventory list.
  • Needs verification: Duplicate, invalid, or inconsistent records requiring investigation.
If shelf locations are maintained in the library database, the application can also show the expected location of a book and help staff investigate misplaced items.

Step 11: Pilot the Solution Before Full Deployment
Before tagging the entire collection or installing readers throughout the library, run a pilot in one section.
A practical pilot should include:
  • A representative sample of tagged books.
  • One R3 circulation workstation.
  • One C5 handheld inventory device.
  • A URA4 fixed reading zone if automated reading is part of the project.
  • Integration with a test or controlled production environment.
Measure the time taken for book issue, return, shelf inventory, and book finding. Also record missed reads, unwanted reads, incorrect tag-to-book mappings, and software transaction errors.
Test different book sizes, stacked books, varying tag orientations, and representative shelf materials.

Common Challenges and How to Address Them
1. Incorrect tag-to-book mapping
Use unique identifiers, controlled registration procedures, and verification reports to prevent incorrect book associations.
2. Missed RFID reads
Review tag selection, orientation, reader power, antenna placement, and interference. Validate performance with actual books and shelves.
3. Unwanted reads from nearby shelves
Configure antenna coverage and reader power carefully, and implement application-level filtering to associate reads with the intended zone.
4. Software integration issues
Confirm API or SDK availability, supported communication interfaces, transaction rules, and database access before finalising the hardware architecture.
5. Different RFID standards
Confirm that all tags, readers, and operating frequency configurations are compatible. Existing HF library tags cannot automatically be read by UHF-only devices.
6. Staff adoption and operational changes
Provide practical training, document standard operating procedures, and establish exception-handling processes before the full rollout.

Conclusion
RFID technology can help libraries modernise book circulation, inventory verification, and collection management. A carefully planned implementation can reduce repetitive manual scanning, improve inventory visibility, and support more efficient library operations.
Chainway's R3 Desktop RFID Reader, URA4 Fixed RFID Reader, and C5 Handheld RFID Reader can serve complementary roles in this implementation. The R3 supports desktop book identification, the URA4 can support configured fixed reading zones, and the C5 enables mobile inventory auditing and book finding.
The key to success is to combine the right RFID hardware with compatible tags, reliable catalogue data, well-designed software integration, and a properly tested operational process.
Chainway India can help libraries evaluate RFID reader options for their circulation, inventory, and automation requirements. A site assessment and pilot implementation are recommended to identify the most suitable configuration for each library.

Other News

Subscribe to our newsletter

Sign up to be the first to learn about specials and news.

OUR PRODUCTS
Mobile Computers
Rugged Tablets
Handheld RFID Readers
Bluetooth RFID Readers
Fixed RFID Readers
RFID Modules
RFID Software
Biometric Readers
Printers
Vehicle Computers
Mobility Family
Product Security
SUPPORT
Product Support
Technical Support
Repair and Service
FAQs
How-to Videos
CASES & PARTNERS
Case Studies
Global Resellers
Become a Partner
Cases Navigation
ABOUT US
About Chainway
News
Events
Contact Us
Industry News
English

Copyright © 2016-2026 Shenzhen Chainway Information Technology Co., Ltd. All Rights Reserved      Privacy Policy |Terms & Conditions |Use of Cookies | Support

Please help us to keep the environment clean by disposing the e-waste responsibly.
To know more about e-waste management, Click Here (http://indiaewasterecycler.com/ewastecrm/?link_id=5afe5c2c29a13)

Close
Cookies
We would like to use cookies on our website to improve your experience. By clicking “Accept All”, you consent to the use of all the cookies. Via 'Cookie Settings' you can manage your preferences. For more information about the cookies we use, click here to read our Cookie Policy
Cookie Settings Accept All
Close
Privacy Overview
This website uses cookies to improve your experience while you navigate through the website. Out of these, the cookies that are categorized as necessary are stored on your browser as they are essential for the working of basic functionalities of the website. We also use third-party cookies that help us analyze and understand how you use this website. These cookies will be stored in your browser only with your consent. You also have the option to opt-out of these cookies. However, blocking some types of cookies may impact your experience of the site
Accept All
Strictly Necessary Cookies
Always Active
These cookies are necessary for the website to function and camnot be swiched of in our systems.They are usully only set in response to actions made by youwhich amount to a requestfor services such as seting your prvacy preferences,logging in o iling in forms.You can set your browser to block or let you boutthese cookies, but some parts of the site will not then work. These cookies do not store any personally identfiable information.
Performance Cookies
These cookies are necessary for the website to function and camnot be swiched of in our systems.They are usully only set in response to actions made by youwhich amount to a requestfor services such as seting your prvacy preferences,logging in o iling in forms.You can set your browser to block or let you boutthese cookies, but some parts of the site will not then work. These cookies do not store any personally identfiable information.
Social Media Cookies
These cookies are set by a range of social media services that we have added to the site to enable you to share our content with your friends and networks. They are capable of tracking your browser across other sites and building up a profile of your interests. This may impact the content and messages you see on other websites you visit. If you do not allow these cookies you may not be able to use or see these sharing tools.
Functional Cookies
These cookies enable the website to provide enhanced functionality and personalisation. They may be set by us or by third party providers whose services we have added to our pages. If you do not allow these cookies then some or all of these services may not function properly.
Targeting Cookies
These cookies may be set through our site by our advertising partners. They may be used by those companies to build a profile of your interests and show you relevant adverts on other sites. They do not store directly personal information, but are based on uniquely identifying your browser and internet device. If you do not allow these cookies, you will experience less targeted advertising.
Confirm My Choices
